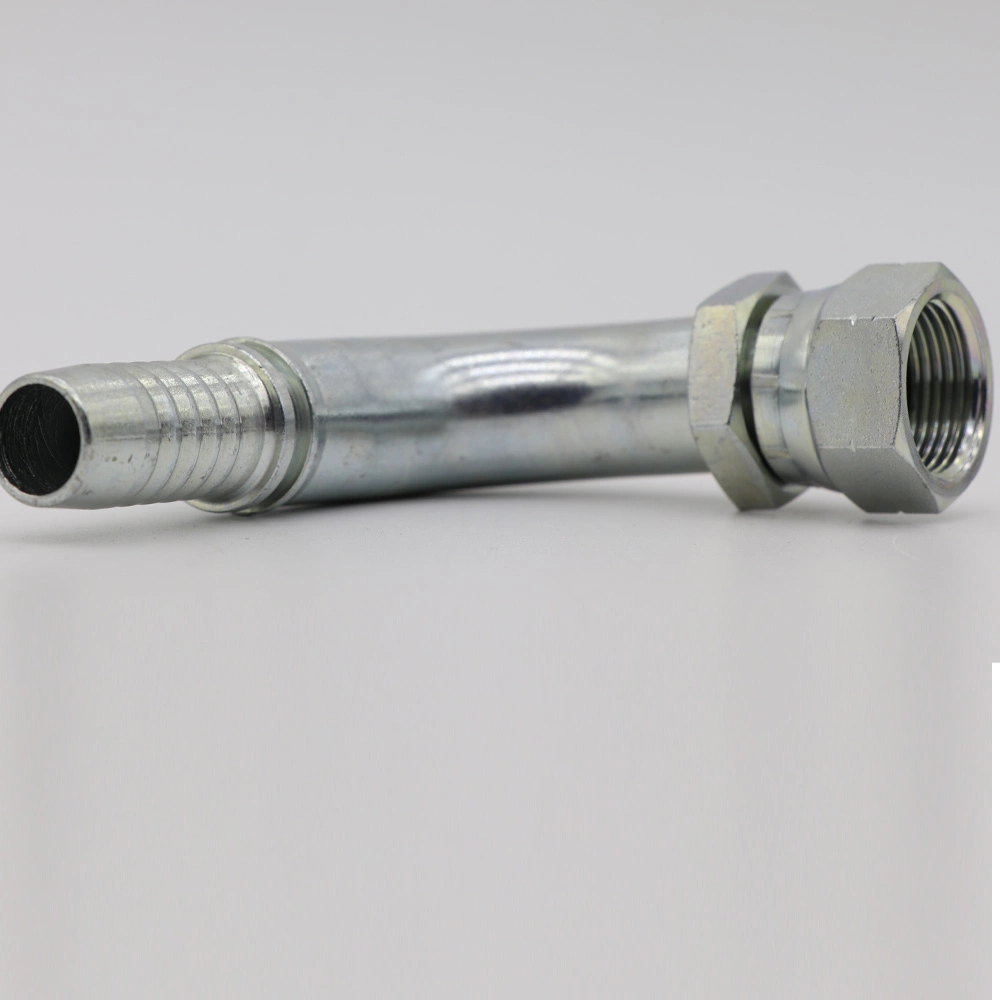

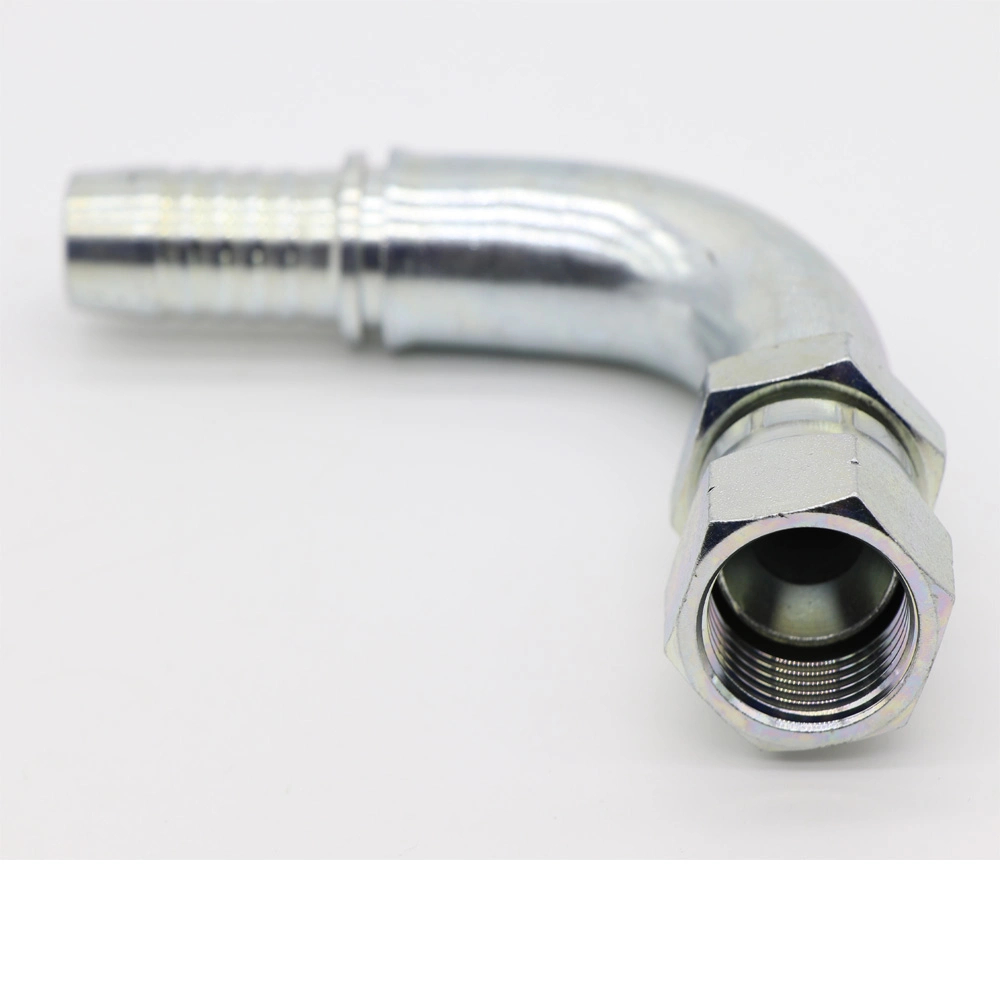

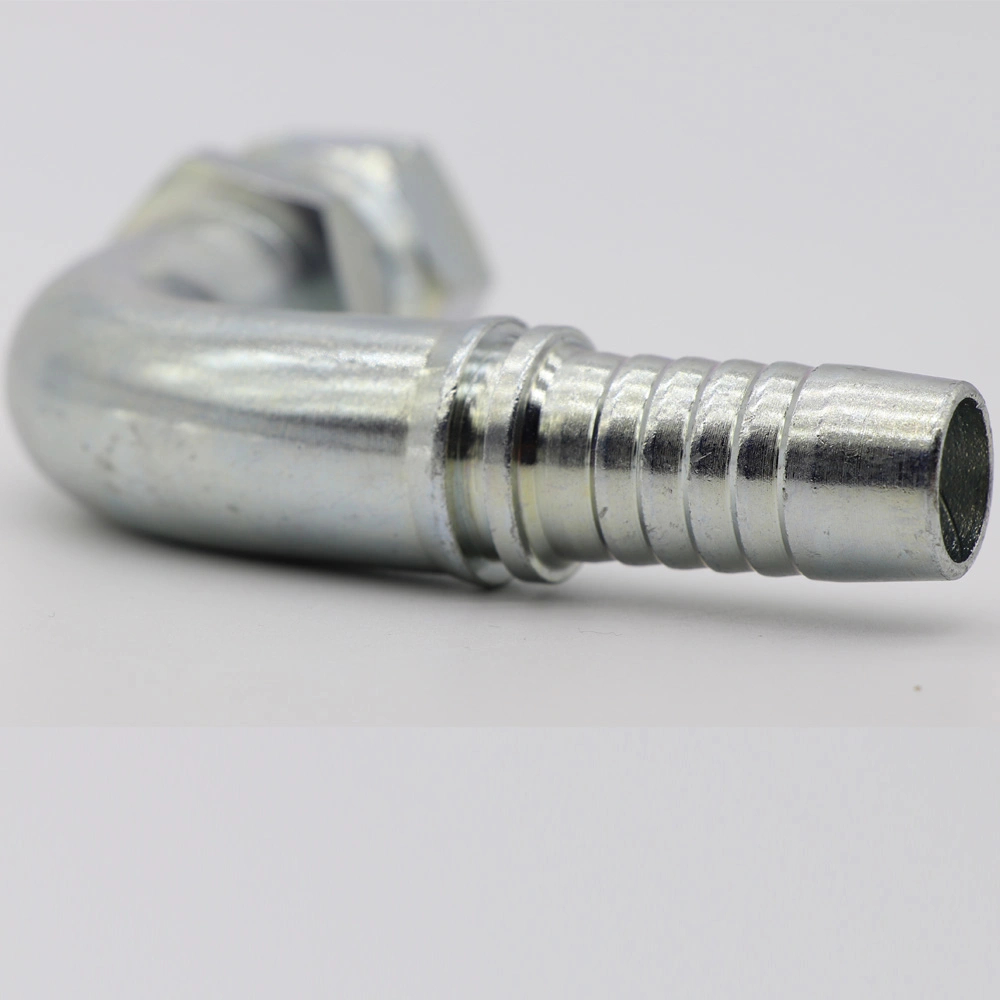

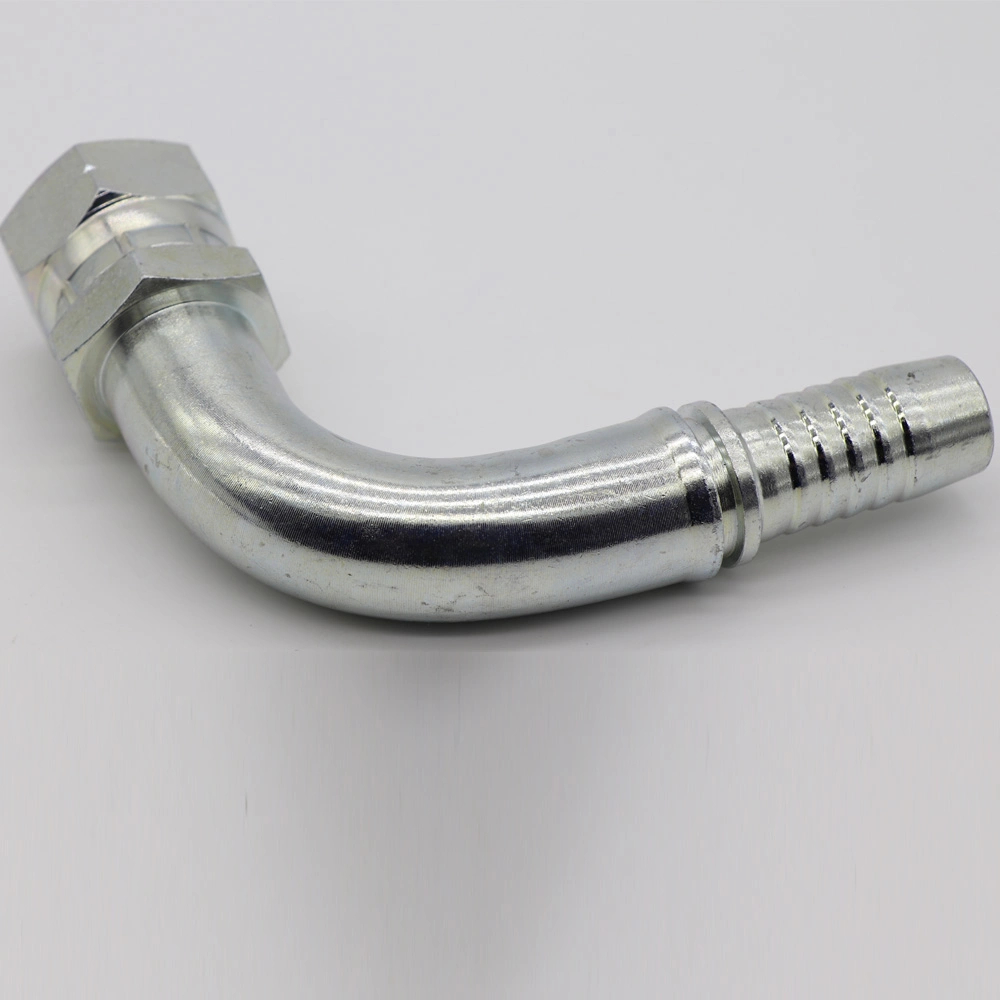

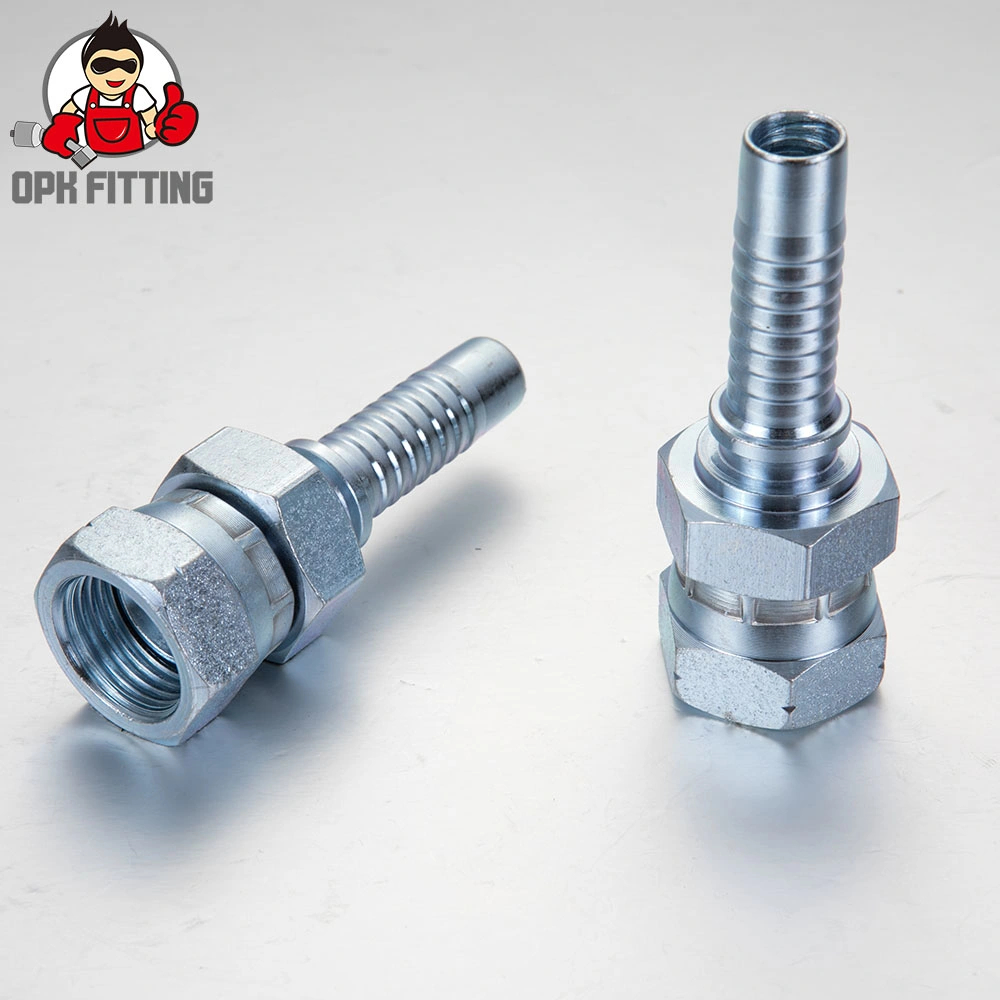

29611 JIS Gas Female 60° Cone Seat

Product Description
Product name: JIS Gas Female 60° Cone Seat Pipe Fitting (29611)
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Male
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

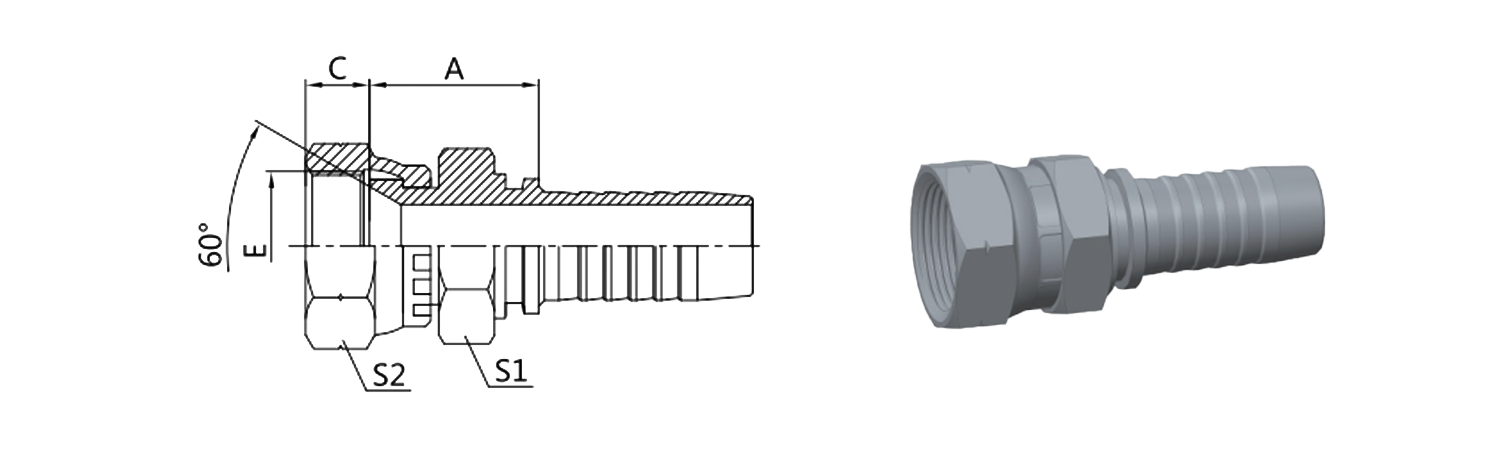

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
29611-02-03	G1/8"X28	5	03	20	7	14	14
29611-02-04	G1/8"X28	6	04	14.5	7	14	14
29611-04-04	G1/4"X19	6	04	15	8	19	19
29611-04-05	G1/4"X19	8	05	15	8	19	19
29611-06-04	G3/8"X19	6	04	16	9	22	22
29611-06-06	G3/8"X19	10	06	16	9	22	22
29611-08-06	G1/2"X14	10	06	18.5	12	27	27
29611-08-08	G1/2"X14	12	08	19	12	27	27
29611-10-10	G5/8"X14	16	10	19.5	11.5	30	30
29611-12-10	G3/4"X14	16	10	21	13.5	32	32
29611-12-12	G3/4"X14	20	12	21.5	13.5	32	32
29611-16-16	G1"X11	25	16	23	16	41	41
29611-20-20	G1.1/4"X11	32	20	25.5	18.5	50	50
29611-20-20W	G1.1/4"X11	32	20	43	18.5	50	50
29611-24-24	G1.1/2"X11	40	24	25.5	19	55	55
29611-24-24W	G1.1/2"X11	40	24	43.5	19	55	55
29611-32-32	G2"X11	50	32	27	23	70	70
29611-32-32W	G2"X11	50	32	46.5	23	70	70
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 29612-xx-xx.
