20291 90° Metric Female Flat Seat

Product Description

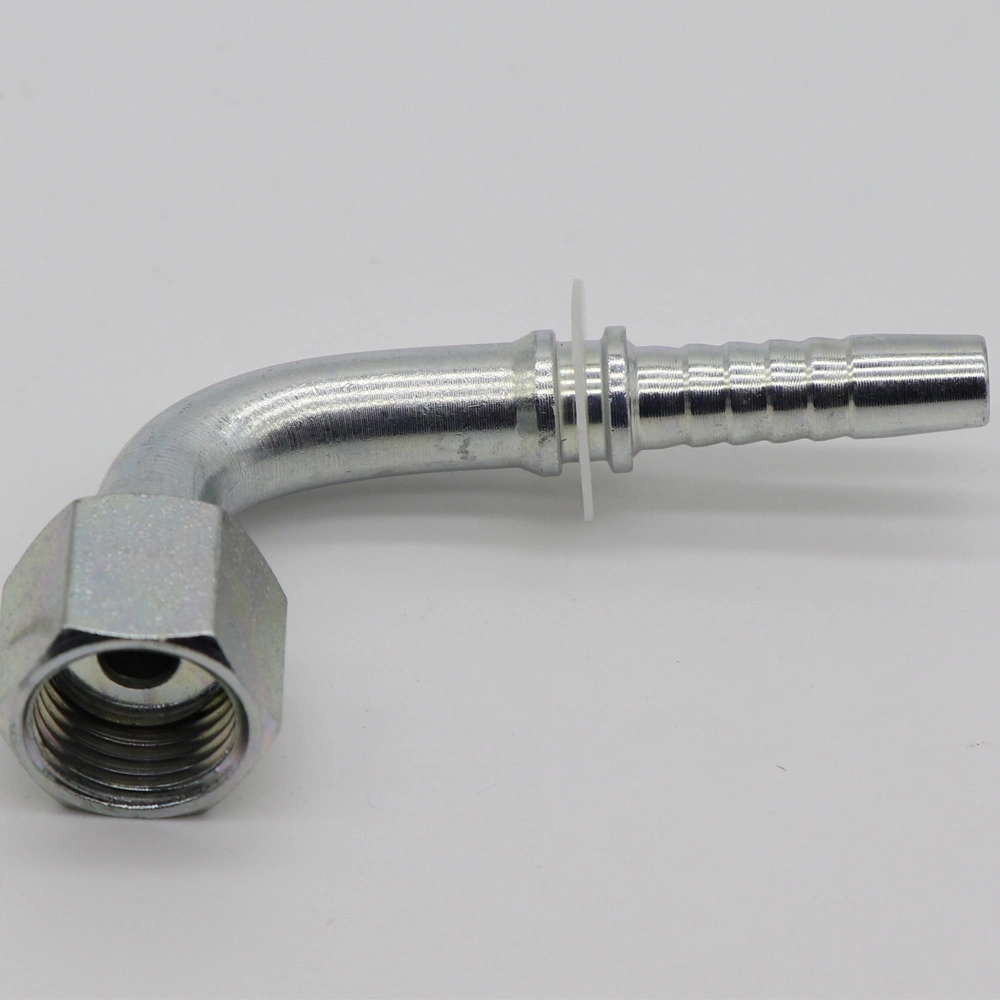

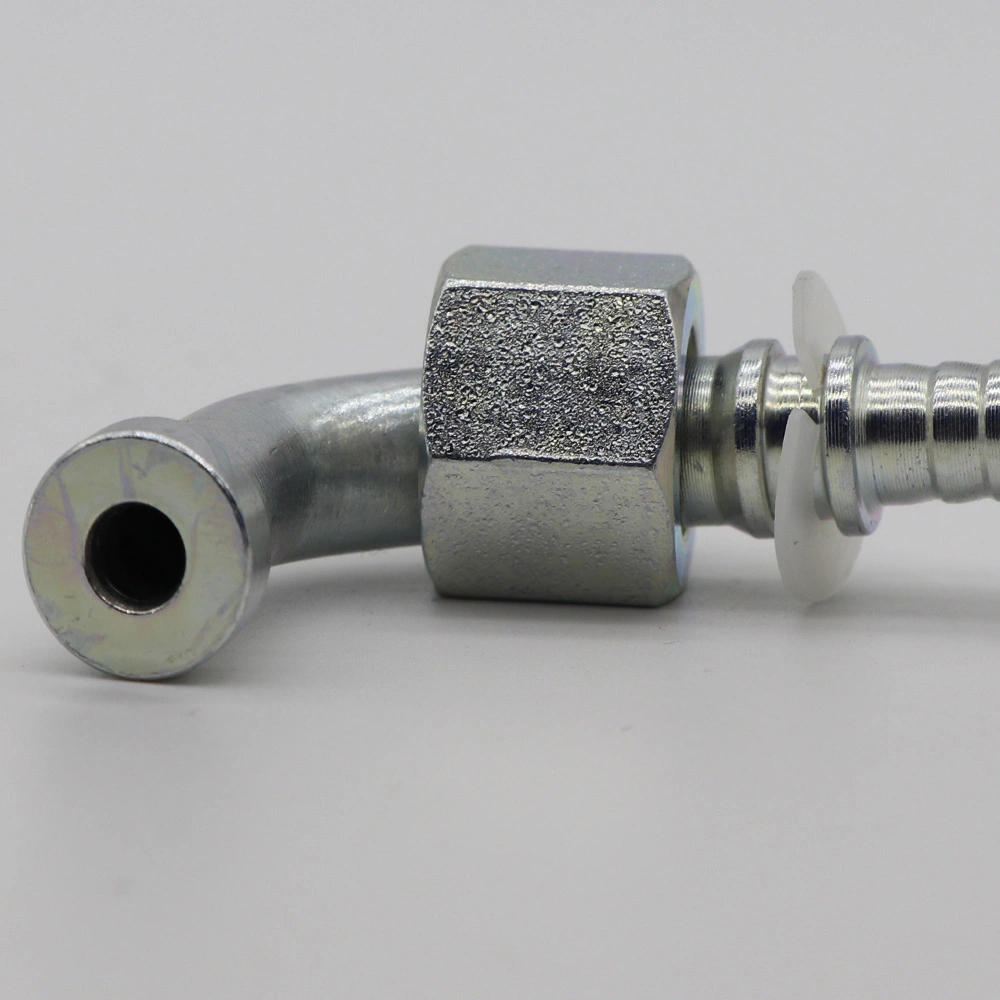

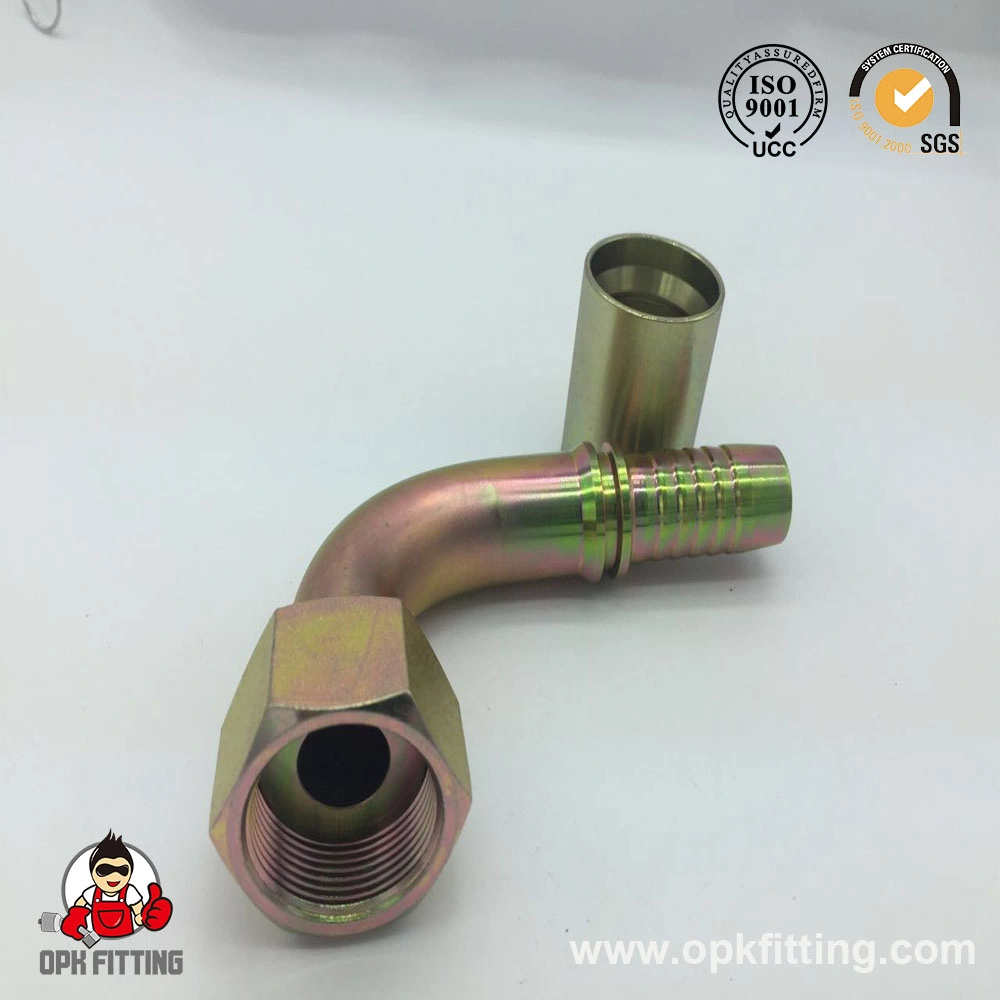

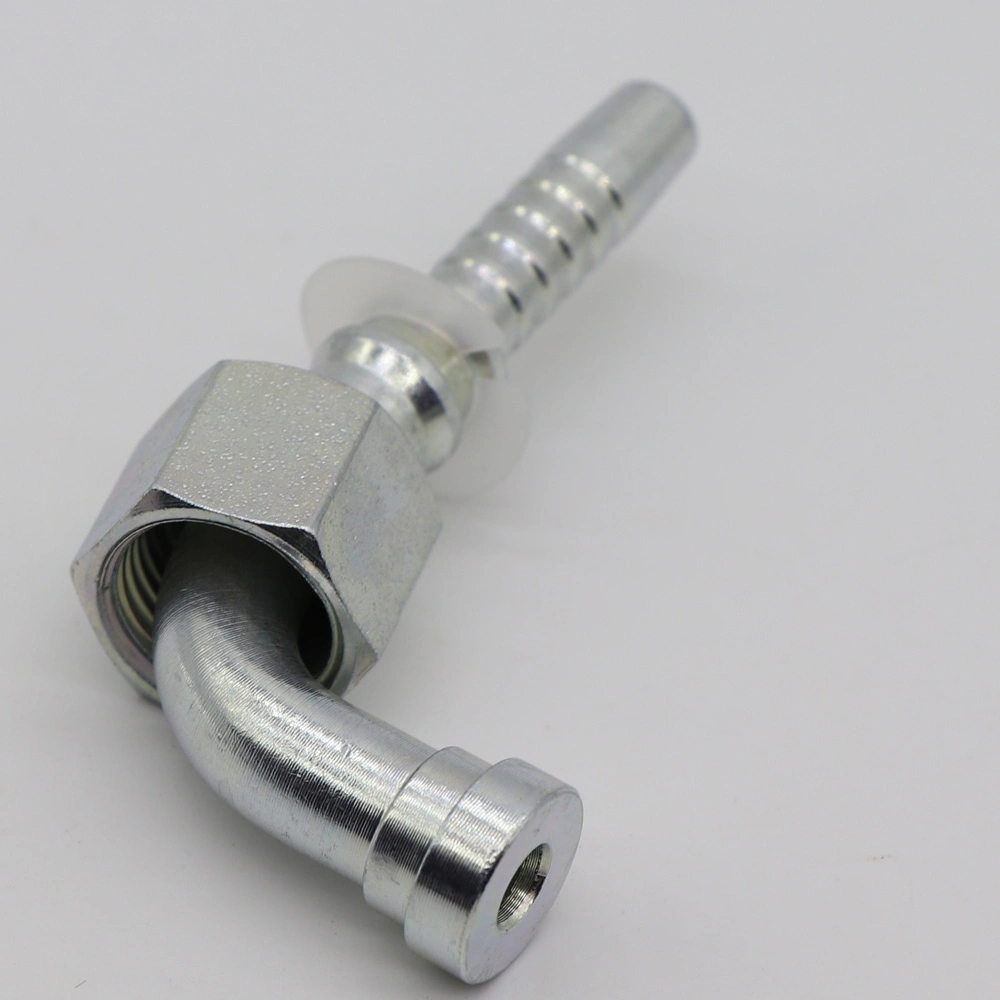

Product name: 90° Metric Female Flat Seal Hydraulic Hose Fitting (20291, 20291T)
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Female
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

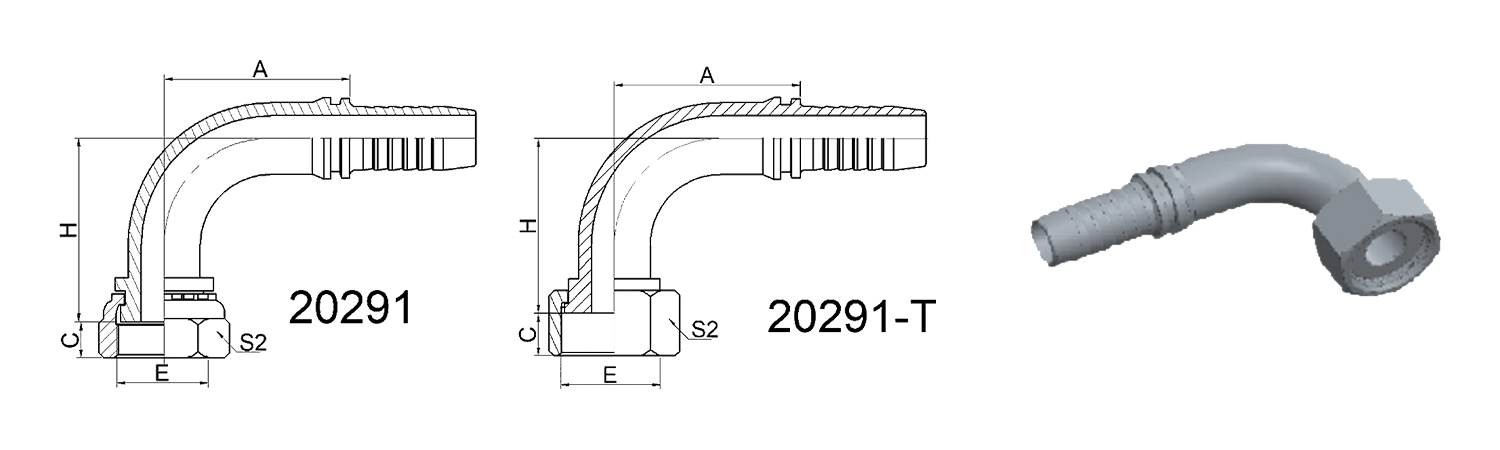

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20291-12-02	M12X1.25	4	2	26.5	8	30.5	17
20291-12-04	M12X1.25	6	4	30	8	28	17
20291-14-04	M14X1.5	6	4	30	8.5	34	19
20291-14-04T	M14X1.5	6	4	30	8	26	19
20291-14-05	M14X1.5	8	5	33	8.5	37	19
20291-16-04	M16X1.5	6	4	30	8	35	22
20291-16-04T	M16X1.5	6	4	29	8	27	22
20291-16-05	M16X1.5	8	5	33	8	38	22
20291-16-05T	M16X1.5	8	5	33	8	28.5	22
20291-16-06	M16X1.5	10	6	35	8	30.5	22
20291-18-05T	M18X1.5	8	5	33	8	39	24
20291-18-06	M18X1.5	10	6	35.25	8	41.3	24
20291-18-06T	M18X1.5	10	6	35	8	32	24
20291-20-06T	M20X1.5	10	6	37	10	34	27
20291-22-06T	M22X1.5	10	6	35	10	37	27
20291-22-08	M22X1.5	12	8	41	10	48	27
20291-22-08T	M22X1.5	12	8	42	10	37.5	27
20291-22-10	M22X1.5	16	10	43.5	10	38.5	27
20291-24-08T	M24X1.5	12	8	41	11	37.5	30
20291-27-04T	M27X1.5	6	4	30	10	35.5	32
20291-27-08T	M27X1.5	12	8	41	10	46	32
20291-27-10T	M27X1.5	16	10	51.5	10	41.5	32
20291-30-12	M30X1.5	20	12	65.5	11	63.5	36
20291-30-12T	M30X1.5	20	12	57	11	50.5	36
20291-33-14	M33X2	22	14	71.2	13	65	41
20291-36-12T	M36X2	20	12	57.5	13	51.5	41
20291-36-14T	M36X2	22	14	71.2	13	61	41
20291-36-16	M36X2	25	16	76.7	13	70	41
20291-36-16T	M36X2	25	16	67.5	13	60.5	41
20291-39-16T	M39X2	25	16	67.5	13	66	46
20291-42-20W	M42X2	32	20	91.5	15	80.5	50
20291-45-20T	M45X2	32	20	84.5	15	75.5	55
20291-52-20T	M52X2	32	20	91.5	17	78.5	60
20291-52-24T	M52X2	40	24	95.5	17	90	60
20291-60-28T	M60X2	45	28	120	20	105.5	70
20291-64-32T	M64X2	50	32	131.7	23	116	75
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20292-xx-xx.
