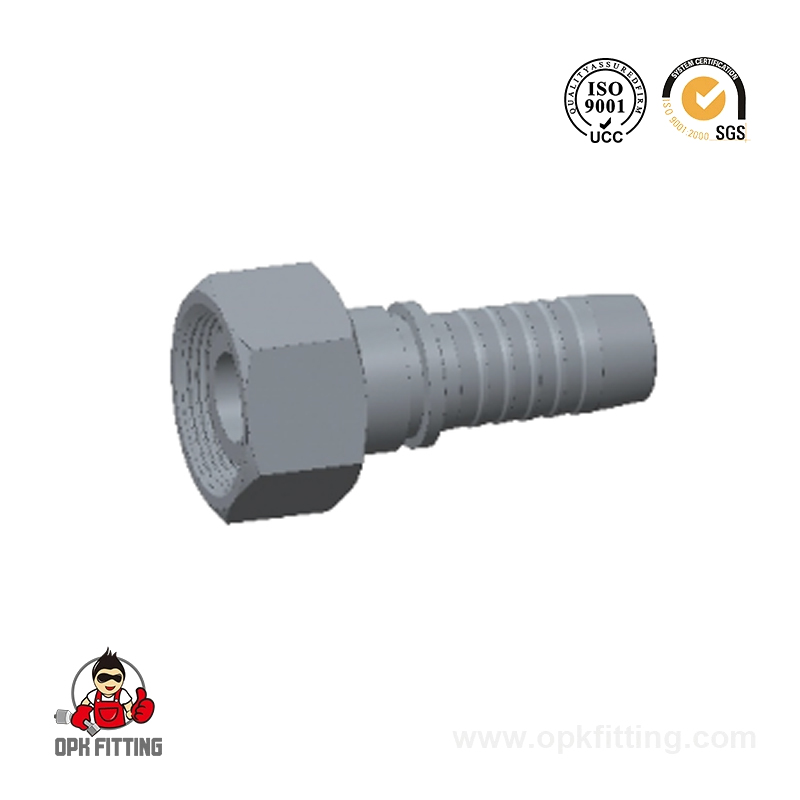

20411C Metric Female Multiseal L.T.

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

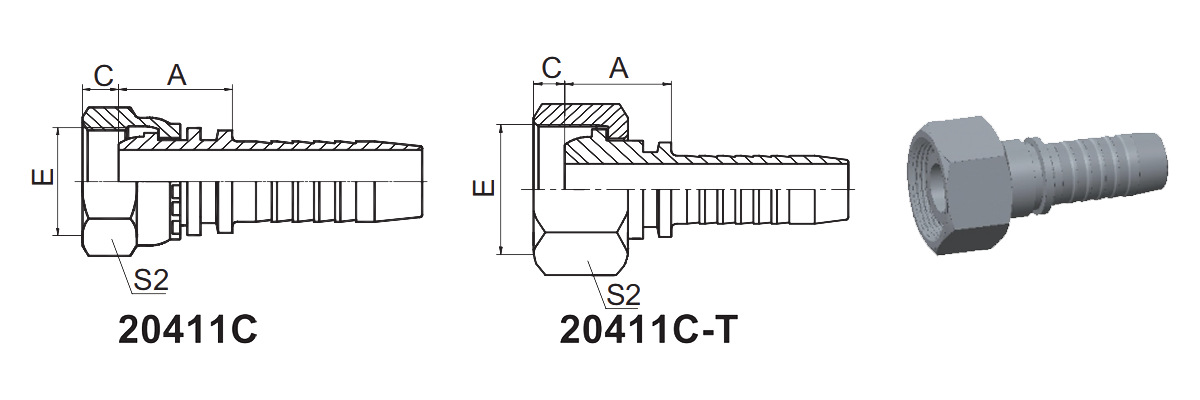

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	DIMENSIONS
		DN	DASH		A	C	S2
20411C-12-04	M12X1.5	6	04	6	19.5	3.5	17
20411C-14-04	M14X1.5	6	04	8	20.5	3.5	19
20411C-16-04T	M16X1.5	6	04	10	20.5	3.5	19
20411C-16-05	M16X1.5	8	05	10	21	3.5	22
20411C-16-06	M16X1.5	10	06	10	21	3.5	22
20411C-18-06T	M18X1.5	10	06	12	23.5	3	22
20411C-22-06T	M22X1.5	10	06	15	23.5	4.5	27
20411C-22-08T	M22X1.5	13	08	15	24.5	4.5	27
20411C-26-10T	M26X1.5	16	10	18	26.5	4	32
20411C-30-10T	M30X2	16	10	22	26.5	7	36
20411C-30-12T	M30X2	19	12	22	27.5	7	36
20411C-30-14	M30X2	22	14	22	27	7	36
20411C-36-16	M36X2	25	16	28	29	6.5	41
20411C-45-20T	M45X2	32	20	35	33	7	55
20411C-52-24T	M52X2	38	24	42	34	8	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20412C-xx-xx.
