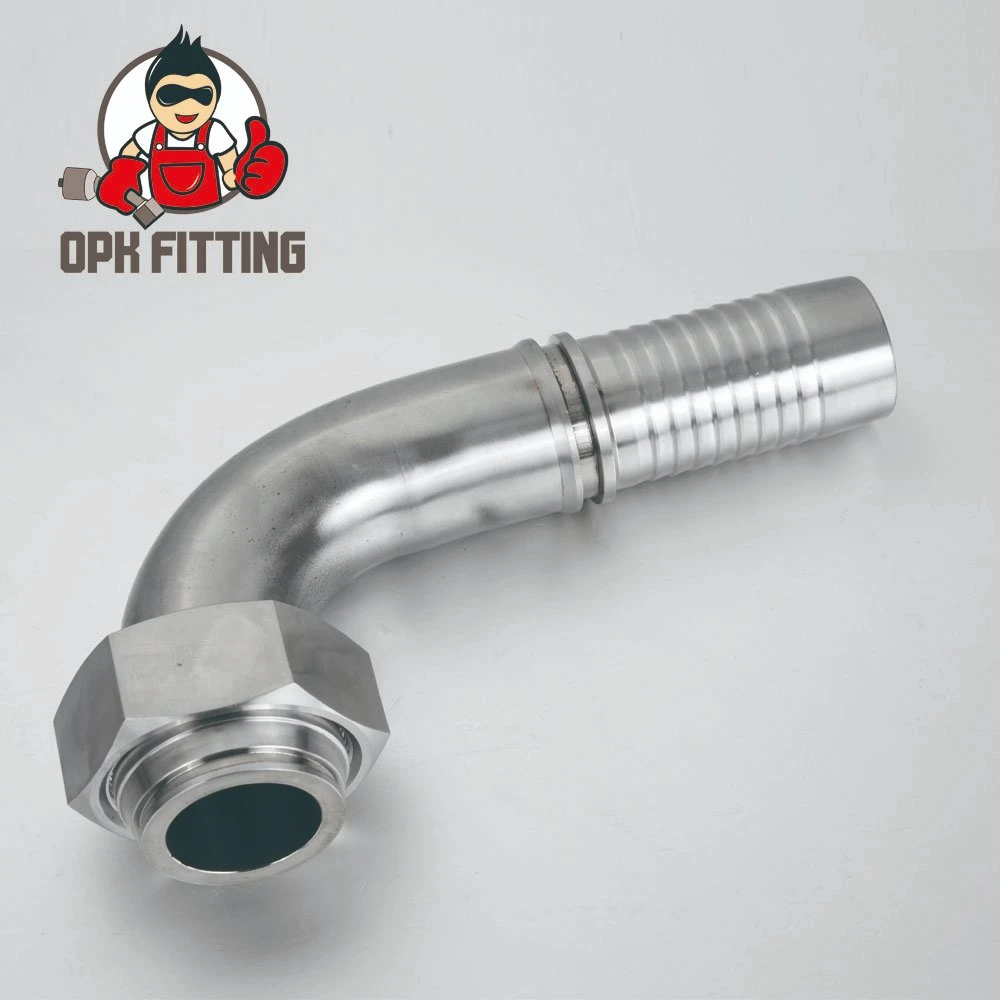

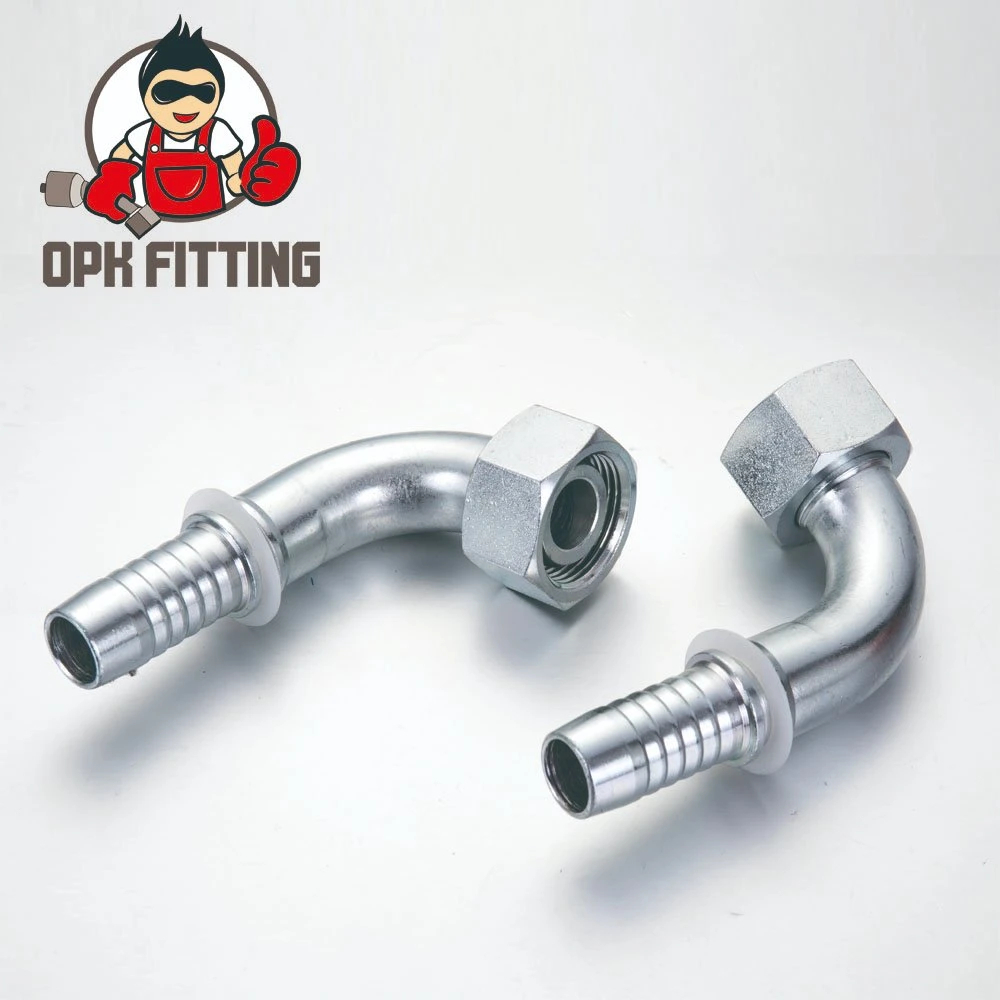

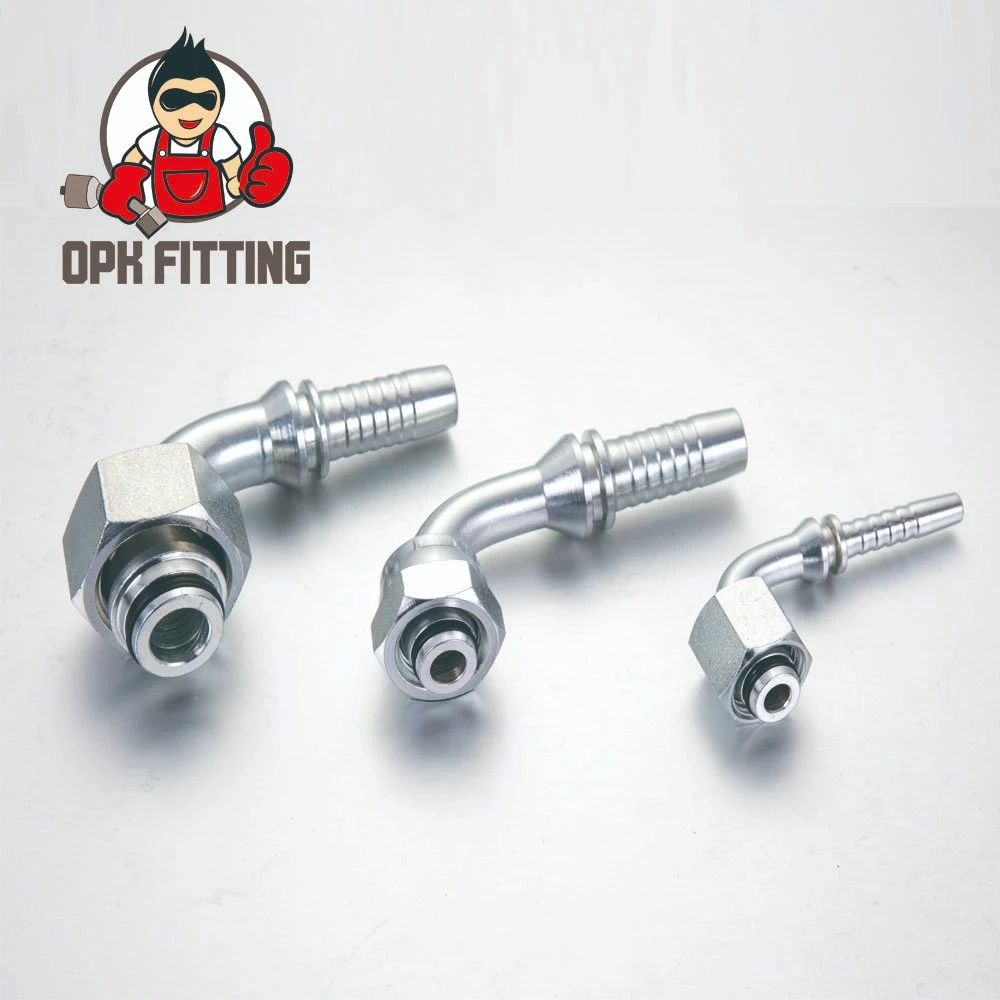

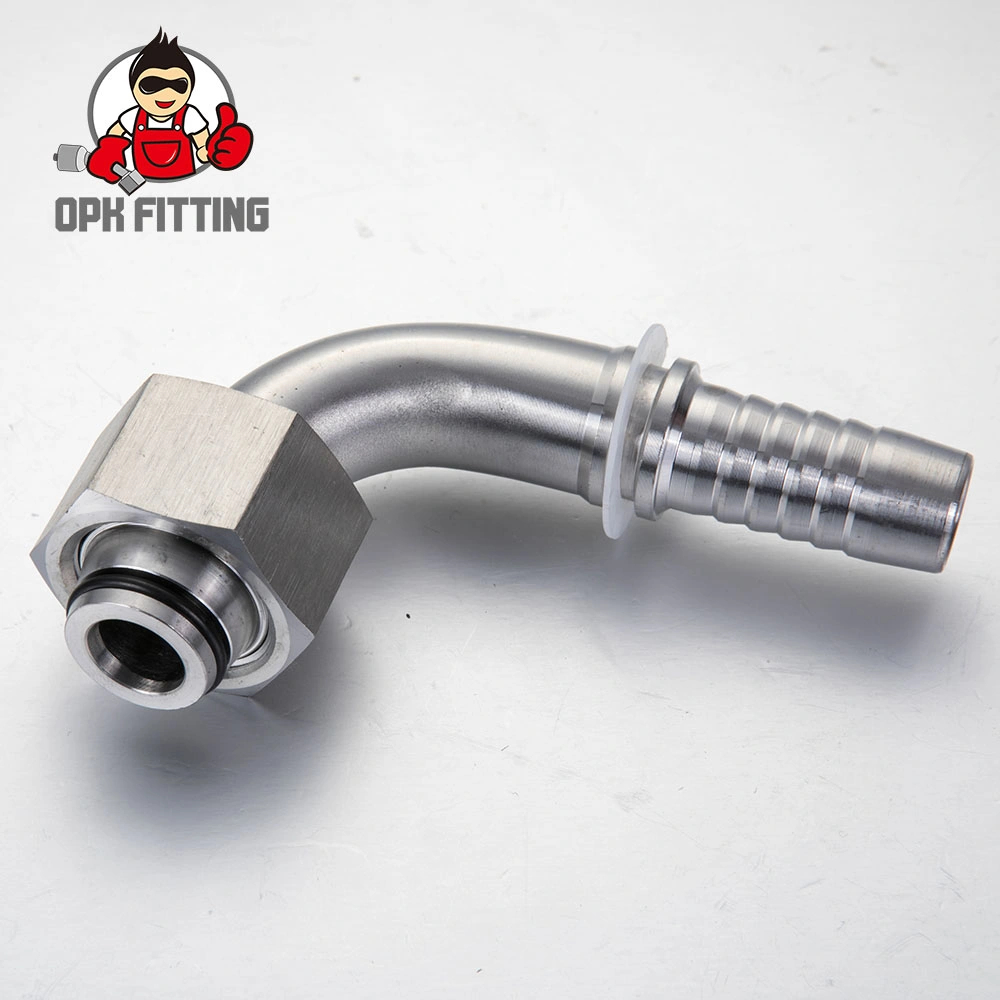

20491 90° Metric Female 24° Cone O-Ring L.T.

Product Description
Product name: Hydraulic Hose Couplings (20491)
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Male
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

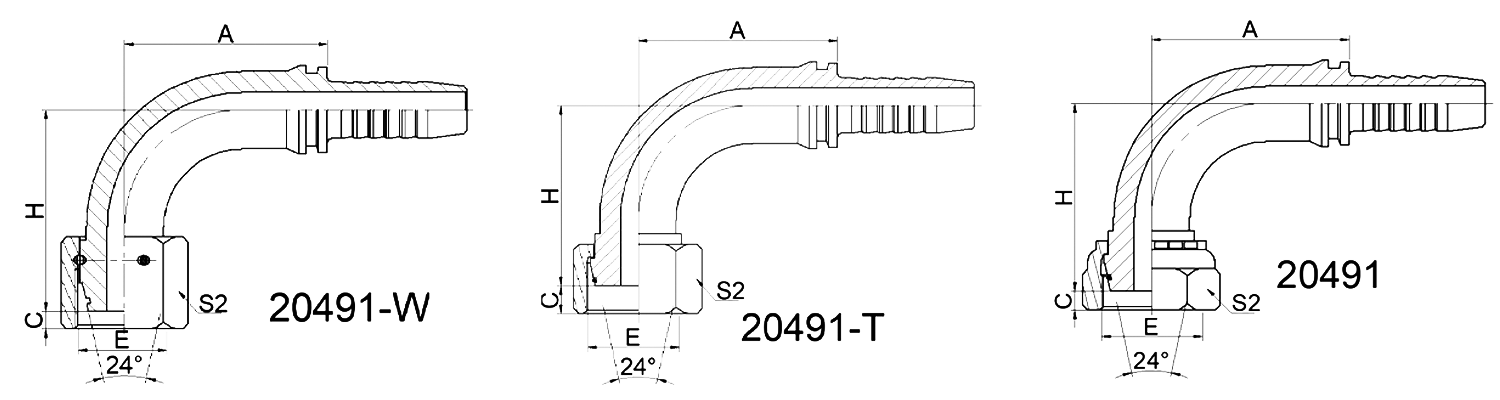

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	O RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	O RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20491-12-03W	M12X1.5	5	03	6	O04.5X1.5	26.5	1.4	30	17
20491-12-04	M12X1.5	6	04	6	O04.5X1.5	31.5	1	32	17
20491-12-04W	M12X1.5	6	04	6	O04.5X1.5	27	1.4	30	17
20491-14-04W	M14X1.5	6	04	8	O06.5X1.5	30	1.6	30.5	17
20491-14-04T	M14X1.5	6	04	8	O06.5X1.5	30	2	32.5	17
20491-14-06	M14X1.5	10	06	8	O06.5X1.5	32	2	33	19
20491-16-04T	M16X1.5	6	04	10	O08.0X1.5	30	2	32.5	19
20491-16-05W	M16X1.5	8	05	10	O08.0X1.5	33	2	33	19
20491-16-05T	M16X1.5	8	05	10	O08.0X1.5	33	2	34.5	19
20491-16-06W	M16X1.5	10	06	10	O08.0X1.5	35	2	33	19
20491-16-06	M16X1.5	10	06	10	O08.0X1.5	37	2	35	22
20491-18-04T	M18X1.5	6	04	12	O10.0X1.5	30	2.5	34.5	22
20491-18-05T	M18X1.5	8	05	12	O10.0X1.5	33	2.5	34.5	22
20491-18-06T	M18X1.5	10	06	12	O10.0X1.5	37	2.5	38	22
20491-18-08	M18X1.5	12	08	12	O10.0X1.5	38	2.5	37	22
20491-22-06T	M22X1.5	10	06	15	O12.0X2.0	35	3	38	27
20491-22-08T	M22X1.5	12	08	15	O12.0X2.0	42	3	43.5	27
20491-22-10	M22X1.5	16	10	15	O12.0X2.0	43	3	46	27
20491-26-08T	M26X1.5	12	08	18	O15.0X2.0	43	2	44.5	32
20491-26-10T	M26X1.5	16	10	18	O15.0X2.0	51.5	2	49.5	32
20491-26-12	M26X1.5	20	12	18	O15.0X2.0	52.5	2	53	32
20491-26-12W	M26X1.5	20	12	18	O15.0X2.0	55.5	2	51.5	32
20491-30-10T	M30X2	16	10	22	O20.0X2.0	52	4	52	36
20491-30-12T	M30X2	20	12	22	O20.0X2.0	57.5	4	56	36
20491-36-12T	M36X2	20	12	28	O26.0X2.0	55.3	4.5	56	41
20491-36-14T	M36X2	22	14	28	O26.0X2.0	64.2	4.5	66.5	41
20491-36-16T	M36X2	20	12	28	O26.0X2.0	67.5	4	67	41
20491-36-20	M36X2	20	20	28	O26.0X2.0	72	4	67	41
20491-45-16T	M45X2	25	16	35	O32.0X2.5	71	4	66.5	50
20491-45-20T	M45X2	32	20	35	O32.0X2.5	84.5	4	81	50
20491-52-20T	M52X2	32	20	42	O38.0X2.5	84.5	4	82	60
20491-52-24T	M52X2	40	24	42	O38.0X2.5	96.5	4	97.5	60
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20492-xx-xx.
