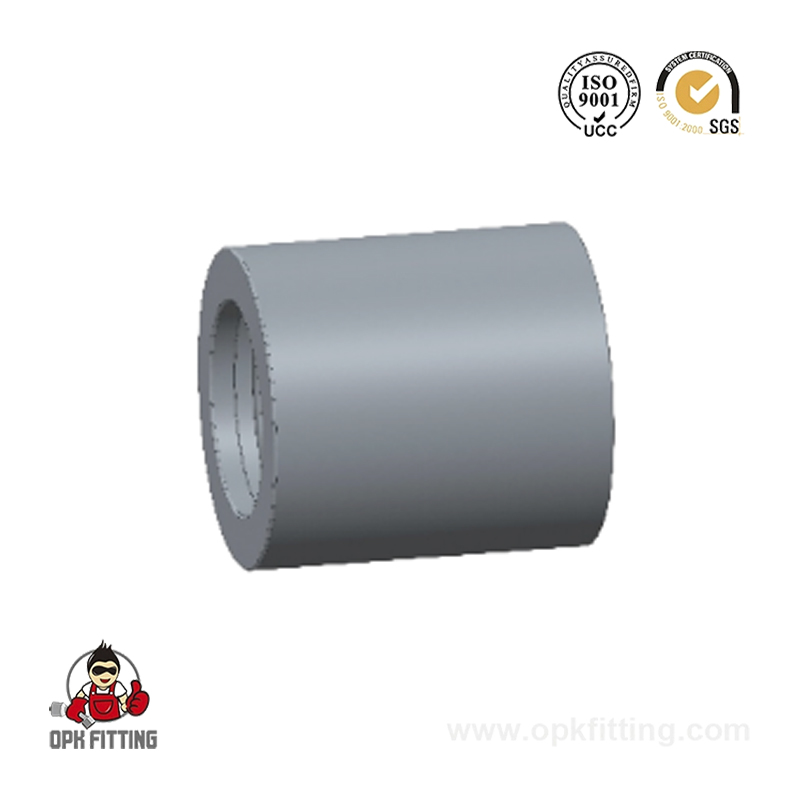

00210 Ferrule For SAE100R2AT/EN 853 2SN Hose

Description Of Products:
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample. Please contact our sales person for the free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN
Material:	Stainless Steel
Connection:	Welding
Surface Treatment:	Galvanized Sheet
Head Type:	Round
Business Type:	Manufacture

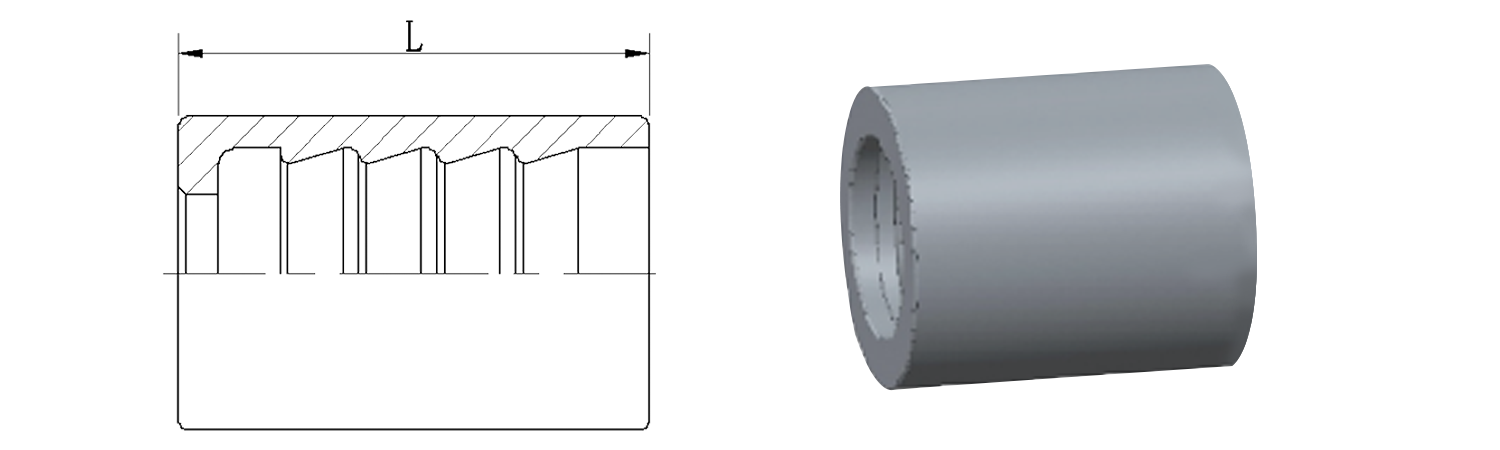

PART NO.	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS L
PART NO.	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS L
00210-03	5	03	27
00210-04	6	04	30
00210-05	8	05	31
00210-06	10	06	32
00210-08	12	08	34
00210-10	16	10	37
00210-12	20	12	43
00210-16	25	16	50
00210-20	32	20	59
00210-24	40	24	74
00210-32	50	32	78
Note: Not recommended for use in construction machinery.
