20291-RW 90° Metric Female Flat Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

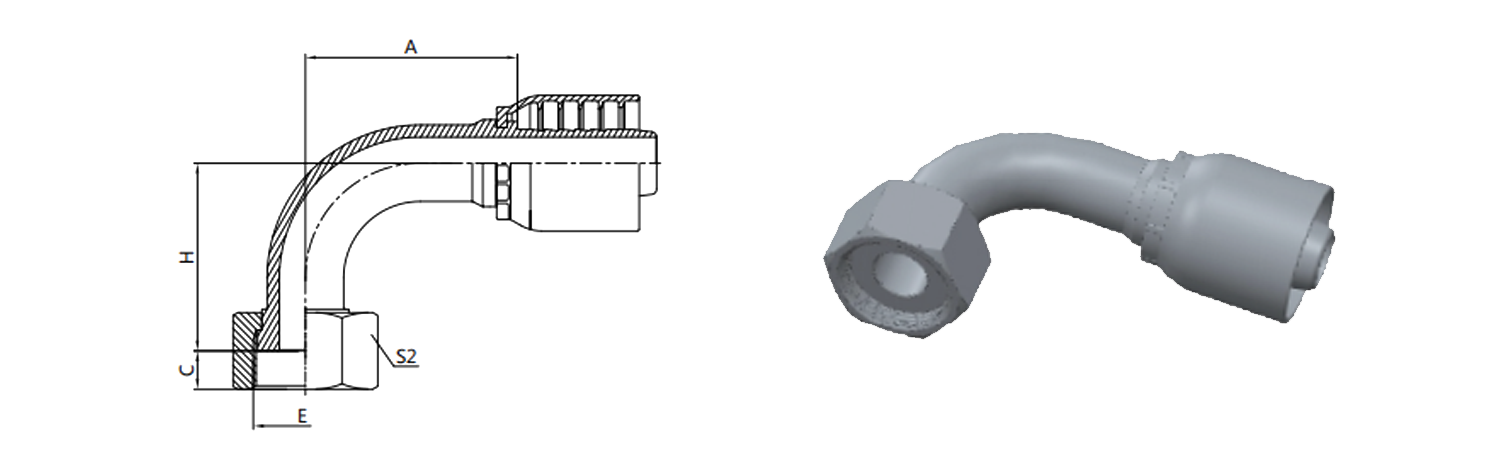

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20291-12-02RW	M12X1.25	4	02	26.5	8	30.5	17
20291-12-04RW	M12X1.25	6	04	30	8	33.5	17
20291-14-04TRW	M14X1.5	6	04	30	8.5	34	19
20291-14-05RW	M14X1.5	8	05	33	8.5	37	19
20291-16-04TRW	M16X1.5	6	04	30	8	35	22
20291-16-05TRW	M16X1.5	8	05	33	8	38	22
20291-16-06TW	M16X1.5	10	06	35.3	8	40.3	22
20291-18-05TRW	M18X1.5	8	05	33	8	39	24
20291-18-06TRW	M18X1.5	10	06	35.25	8	41.3	24
20291-22-08TRW	M22X1.5	13	08	41	10	48	27
20291-22-10RW	M22X1.5	16	10	56	10	53	27
20291-24-08TRW	M24X1.5	13	08	41	11	45.5	30
20291-27-04TRW	M27X1.5	6	04	30	10	35.5	32
20291-27-08TRW	M27X1.5	13	08	41	10	46	32
20291-27-10TRW	M27X1.5	16	10	56	10	51	32
20291-30-12TRW	M30X1.5	19	12	65.5	11	63.5	36
20291-33-14RW	M33X2	22	14	71.2	13	65	41
20291-36-14TRW	M36X2	22	14	71.2	13	61	41
20291-36-16TRW	M36X2	25	16	76.7	13	70	41
20291-39-16TRW	M39X2	25	16	76.7	13	67.5	46
20291-42-20WRW	M42X2	32	20	91.5	15	80.5	50
20291-45-20TRW	M45X2	32	20	91.5	15	78.5	55
20291-52-20TRW	M52X2	32	20	91.5	17	78.5	60
20291-52-24TRW	M52X2	38	24	109.4	17	92	60
20291-60-28TRW	M60X2	38	28	119.9	20	106.5	70
20291-64-32TRW	M64X2	51	32	130.95	23	113.3	75
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20292-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
