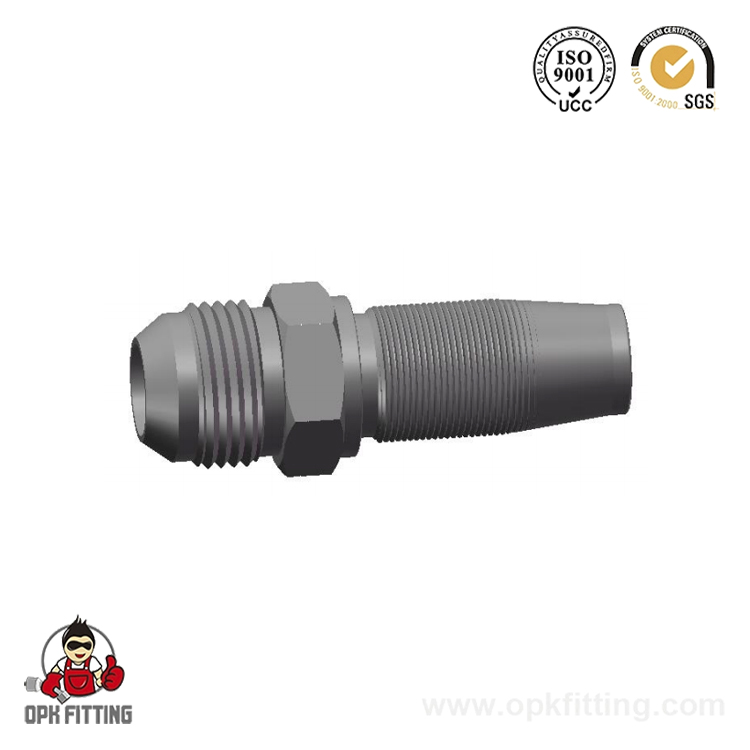

16718 JIC Male 74°Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

PREV：15618 NPT MALE
NEXT：26718DW JIC Female 74°Cone Seat

Specification
Contact Us

PART NO.	THREAD E	HOSE DASH	DIMENSIONS A	DIMENSIONS S1
16718-04-04	7/16X20	04	29	12
16718-06-05	9/16"X18	05	31	17
16718-06-06	9/16"X18	06	32	17
16718-08-06	3/4"X16	06	34.7	22
16718-08-08	3/4"X16	08	38	22
16718-10-10	7/8"X14	10	40.5	24
16718-12-12	1.1/16"X12	12	45.5	30
16718-16-16	1.5/16"X12	16	44	36
16718-20-20	1.5/8"X12	20	49.5	46
16718-24-24	1.7/8"X12	24	52.5	50
Note:Suitable for SAE 100R5 hose.
