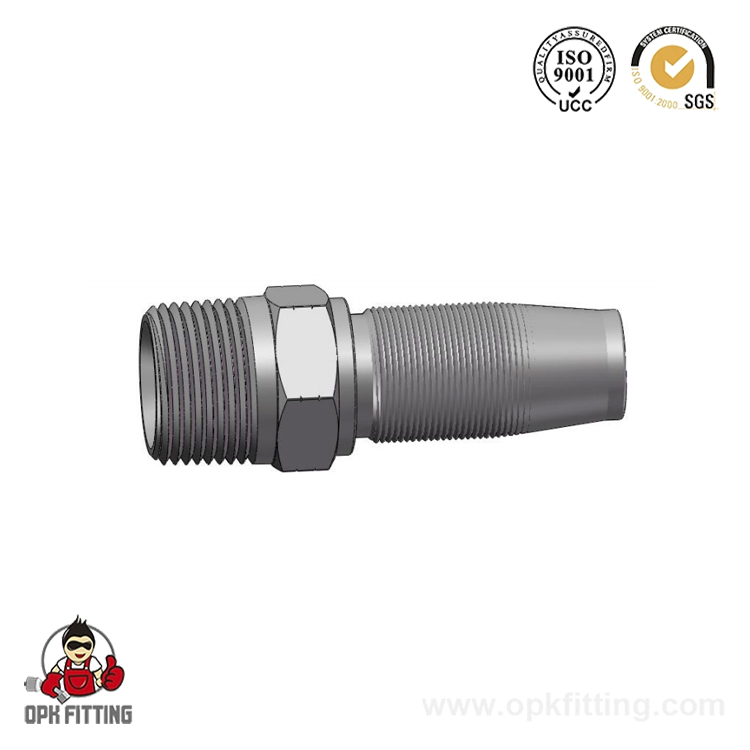

15618 NPT MALE

Categories
Recommended Products
  • 15618 NPT MALE
  • 15618 NPT MALE

15618 NPT MALE

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote
  • Specification
  • Contact Us

  • PART NO. THREAD   E HOSE   DASH DIMENSIONS
    A    		 DIMENSIONS
    S1
    15618-02-04 Z1/8"X27 04  25.5  12
    15618-04-04 Z1/4"X18 04  30  17
    15618-04-06 Z1/4"X18 06  31  17
    15618-06-05 Z3/8"X18 05  32.9  19
    15618-06-06 Z3/8"X18 06  32  19
    15618-08-08 Z1/2"X14 08  40.5  22
    15618-12-10 Z3/4"X14 10  42.5  30
    15618-12-12 Z3/4"X14 12  43  30
    15618-16-16 Z1"X11.5 16  46.5  36
    15618-20-20 Z1.1/4"X11.5 20  51.5  46
    15618-24-24 Z1.1/2"X11.5 24  52.5  50
    15618-32-32 Z2"X11.5 32  55  65
    Note: Suitable for SAE 100R5 hose.
