Inner tube: Thermoplastic Polyester
Reinforcement: Two high-tenacity polyester braids reinforcement
Cover: Oil and weather resistant synthetic
Temperature Range: -40º C~+100º C
Inner tube: Thermoplastic Polyester
Reinforcement: Two high-tenacity polyester braids reinforcement
Cover: Oil and weather resistant synthetic
Temperature Range: -40º C~+100º C
| Material: | Natural Rubber |
| Capability: | Rubber Oil Hose |
| Color: | Black |
| Standard: | DIN |
| Stock: | in Stock |
| Model Number: | R5 |

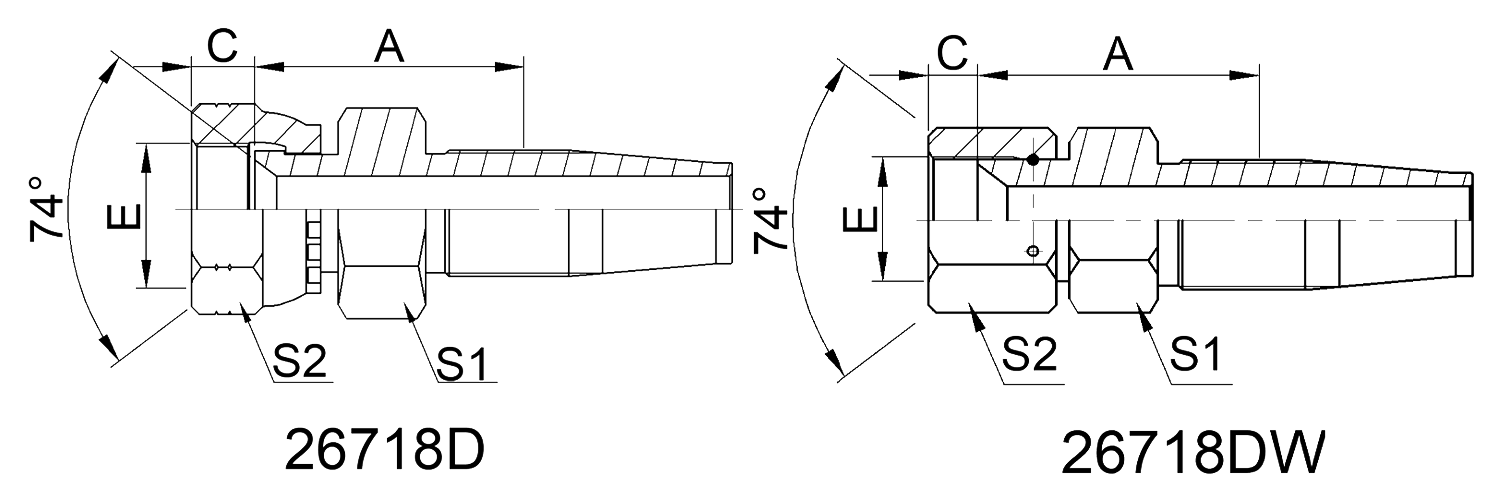

| PART NO. | THREAD E | HOSE DASH | DIMENSIONS A |
DIMENSIONS C |
DIMENSIONS S1 |
DIMENSIONS S2 |
| 26718D-04-04 | 7/16"X20 | 04 | 22 | 9 | 14 | 15 |
| 26718D-05-05 | 1/2"X20 | 05 | 25.4 | 9.5 | 14 | 17 |
| 26718D-06-06 | 9/16"X18 | 06 | 24.5 | 10.5 | 17 | 19 |
| 26718D-08-08 | 3/4"X16 | 08 | 31.5 | 11 | 22 | 24 |
| 26718D-10-10 | 7/8"X14 | 10 | 35 | 13 | 27 | 27 |
| 26718D-12-12 | 1.1/16"X12 | 12 | 37 | 15 | 32 | 32 |
| 26718D-16-16 | 1.5/16"X12 | 16 | 33.5 | 16 | 38 | 41 |
| 26718D-20-20W | 1.5/8"X12 | 20 | 41.5 | 17 | 41 | 50 |
| 26718D-24-24W | 1.7/8"X12 | 24 | 43 | 20 | 46 | 55 |
| 26718D-32-32W | 2.1/2"X12 | 32 | 45.5 | 23.5 | 65 | 75 |
| Note: Suitable for SAE 100R5 hose | ||||||
| Model NO. | One Wire Braid-Textile Hose SAE 100 R5 | Transport Package | Wooden box |
| Specification | 1/8"-1/2" | Trademark | N/M |
| Origin | China | HS Code | 40092100 |
| Production Capacity | 1000000PCS/ Month |
OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.
Our 10 years of customisation experience has created the OPK Fitting brand value.
