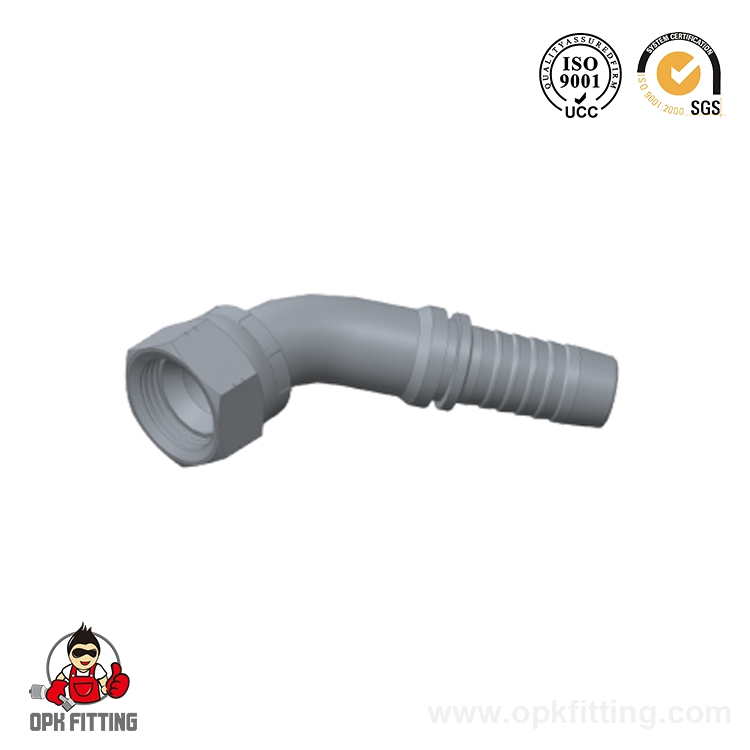

26741 45° JIC Female 74° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
26741-04-03	7/16"X20	5	03	32.7	9	12.2	15
26741-04-04	7/16"X20	6	04	35.2	9	13.1	15
26741-05-04	1/2"X20	6	04	35.6	9.5	13.5	17
26741-05-05	1/2"X20	8	05	37.7	9.5	14.4	17
26741-05-06	1/2"X20	10	06	37.7	9.5	14.4	17
26741-06-04	9/16"X18	6	04	35.6	10.5	13.5	19
26741-06-05	9/16"X18	8	05	37.7	10.5	14.4	19
26741-06-06	9/16"X18	10	06	38.8	10.5	14.8	19
26741-06-08	9/16"X18	13	08	39.3	10.5	14.8	19
26741-08-06	3/4"X16	10	06	40.2	11	16.2	24
26741-08-08	3/4"X16	13	08	45.3	11	19	24
26741-10-08	7/8"X14	13	08	46.3	13	20	27
26741-10-10	7/8"X14	16	10	54.1	13	21.8	27
26741-10-12	7/8"X14	19	12	58.6	13	21.8	27
26741-12-08	1.1/16"X12	13	08	50.4	15	21.1	32
26741-12-10	1.1/16"X12	16	10	55.1	15	22.8	32
26741-12-12	1.1/16"X12	19	12	59.3	15	24.2	32
26741-12-16	1.1/16"X12	25	16	70.3	15	24.2	32
26741-14-12	1.3/16"X12	19	12	60.1	15	24.2	36
26741-16-12	1.5/16"X12	19	12	60.1	16	24.2	41
26741-16-16	1.5/16"X12	25	16	73.5	16	28	41
26741-16-20	1.5/16"X12	32	20	83.5	16	28	41
26741-20-20W	1.5/8"X12	32	20	85.6	17	34.8	50
26741-24-20W	1.7/8"X12	32	20	86.6	20	35.9	55
26741-24-24W	1.7/8"X12	38	24	114.8	20	44.1	55
26741-32-32W	2.1/2"X12	51	32	135.9	23.5	51.6	75
Note: 1. For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 26742-xx-xx.
