00402 Ferrule For Sae 100 R9AT-R12, EN 856-4SP/04-16 Hose

Description Of Products:
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample. Please contact our sales person for the free sample.

Get A Quote

PREV：00401 Ferrule For 4SH Hose
NEXT：00403 Ferrule For EN 856-4SP Hose

Specification
Contact Us

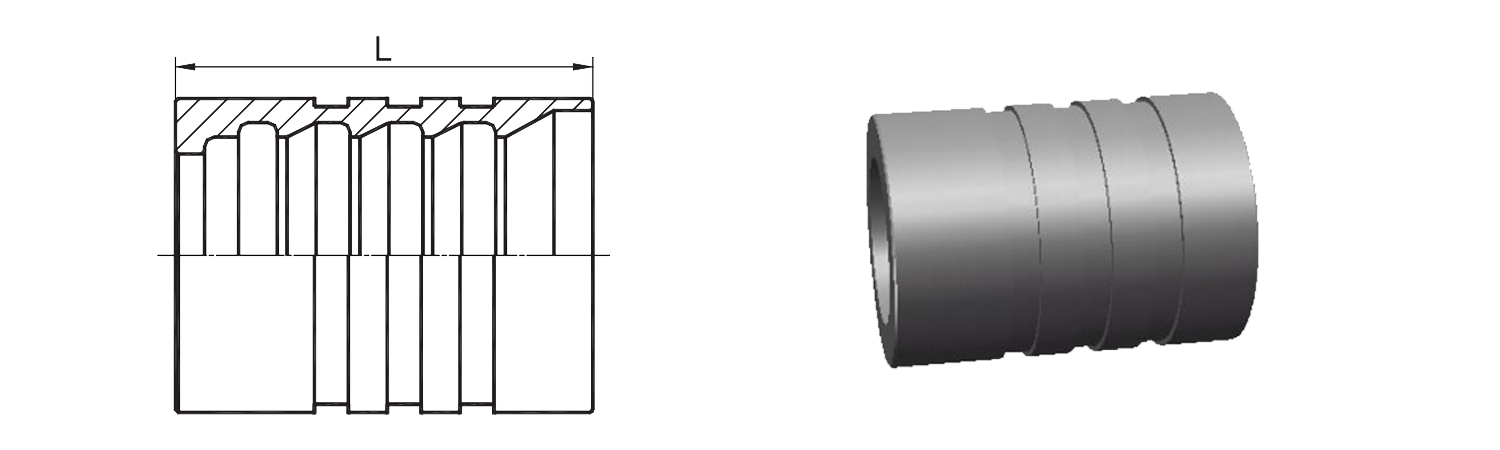

PART NO.	HOSE BOREDN	HOSE BORE DASH	DIMENSIONS L
PART NO.	HOSE BOREDN	HOSE BORE DASH	DIMENSIONS L
00402-04	6	04	30
00402-06	10	06	33
00402-08	12	08	34
00402-10	16	10	39
00402-12	20	12	40
00402-16	25	16	51
00402-20	32	20	60
00402-24	40	24	70
00402-32	50	32	72
B03, EATON Winner H-AP-EHGC-2021-C1 June 2009

About OPK Fitting

OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.
Ningbo OPK Fitting Co., Ltd. is a China professional 00402 Ferrule For Sae 100 R9AT-R12, EN 856-4SP/04-16 Hose manufacturers and ODM & OEM 00402 Ferrule For Sae 100 R9AT-R12, EN 856-4SP/04-16 Hose factory .We can provide custom-made stainless steel hydraulic fittings, hydraulic hose crimp fittings, and hydraulic quick couplings.

Over 10 years of experience.

A team of skilled design professionals and talent.

Excellent product quality and thoughtful customer service.

Our 10 years of customisation experience has created the OPK Fitting brand value.
