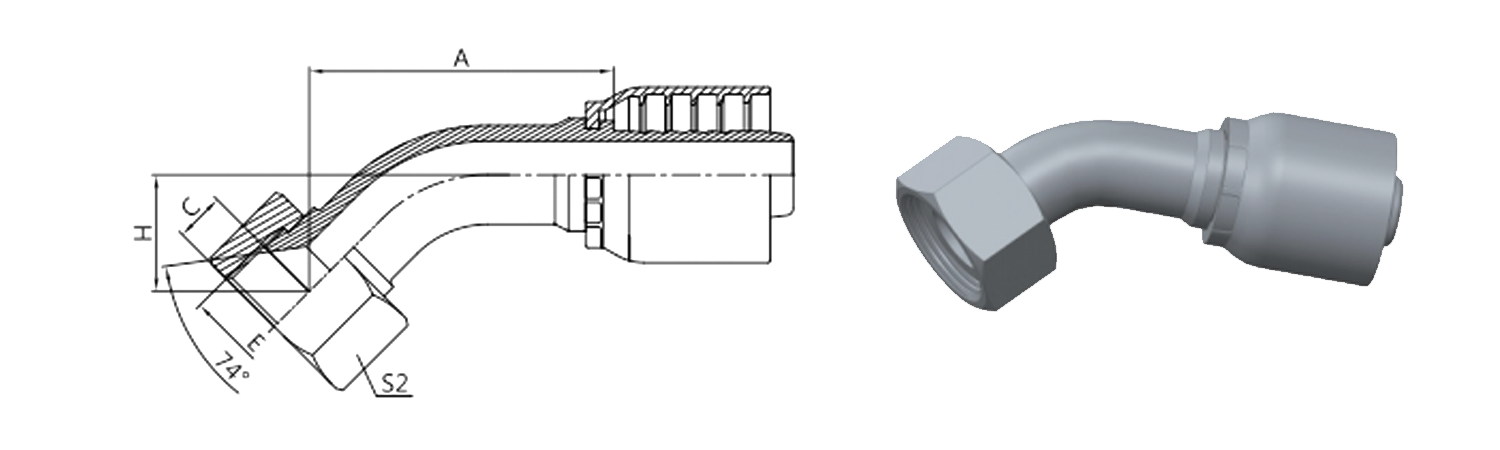

20741-RW 45° GB Metric Female 74° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20711-RW GB Metric Female 74° Cone Seat
NEXT：20791-RW 90° GB Metric Female 74° Cone Seat

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20741-14-04TRW	M14X1.5	6	04	40.5	8.5	18.5	17
20741-16-05TRW	M16X1.5	8	05	43.4	8	20	19
20741-18-06TRW	M18X1.5	10	06	45.7	10	21.4	22
20741-22-08TRW	M22X1.5	13	08	58.9	10	24	27
20741-27-10TRW	M27X1.5	16	10	70.7	11	26.4	32
20741-30-12TRW	M30X1.5	19	12	77.4	11	30	36
20741-33-12TRW	M33X2	19	12	77.4	13	30	41
20741-33-16RW	M33X2	25	16	85	13	30.8	41
20741-36-14TRW	M36X2	22	14	79.8	14	29.5	41
20741-36-16TRW	M36X2	25	16	85.7	14	31.5	41
20741-39-16TRW	M39X2	25	16	87	14	31.8	46
20741-45-20RW	M45X2	32	20	100.2	15	39.4	55
20741-52-24RW	M52X2	38	24	115.3	17	40.9	60
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20742-xx-xx.
