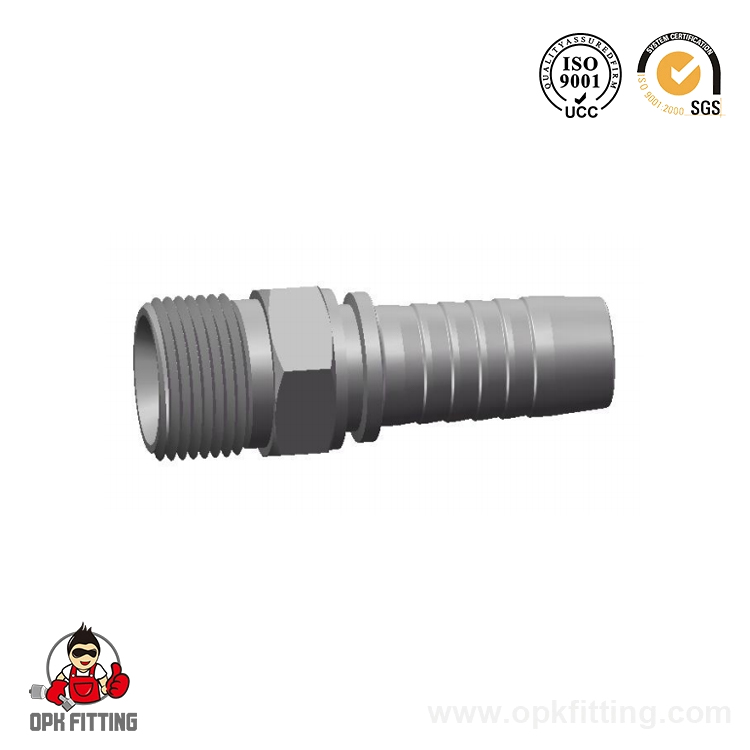

12611 BSP Male 60° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

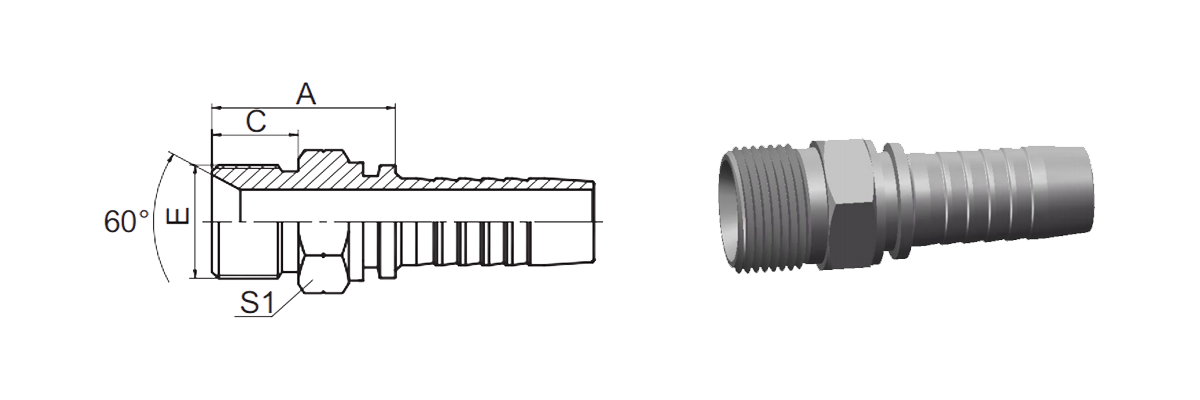

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
12611-02-03	G1/8"X28	5	03	22	10	12
12611-04-04	G1/4"X19	6	04	24.5	12	14
12611-06-05	G3/8"X19	8	05	26	13.5	17
12611-06-06	G3/8"X19	10	06	26	13.5	17
12611-06-08	G3/8"X19	13	08	26.5	13.5	19
12611-08-06	G1/2"X14	10	06	30.5	16	22
12611-08-08	G1/2"X14	13	08	31	16	22
12611-10-08	G5/8"X14	13	08	32.5	17.5	24
12611-10-10	G5/8"X14	16	10	33.5	17.5	24
12611-12-08	G3/4"X14	13	08	35.5	18.5	27
12611-12-10	G3/4"X14	16	10	36.5	18.5	27
12611-12-12	G3/4"X14	19	12	36.5	18.5	27
12611-16-12	G1"X11	19	12	40.5	20.5	36
12611-16-16	G1"X11	25	16	41.5	20.5	36
12611-20-16	G1.1/4"X11	25	16	43.5	20.5	46
12611-20-20	G1.1/4"X11	32	20	46.5	20.5	46
12611-24-20	G.1/2"X11	32	20	49	23	50
12611-24-24	G.1/2"X11	38	24	49	23	50
12611-32-32	G2"X11	51	32	53.5	25.5	65
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 12612-xx-xx.
