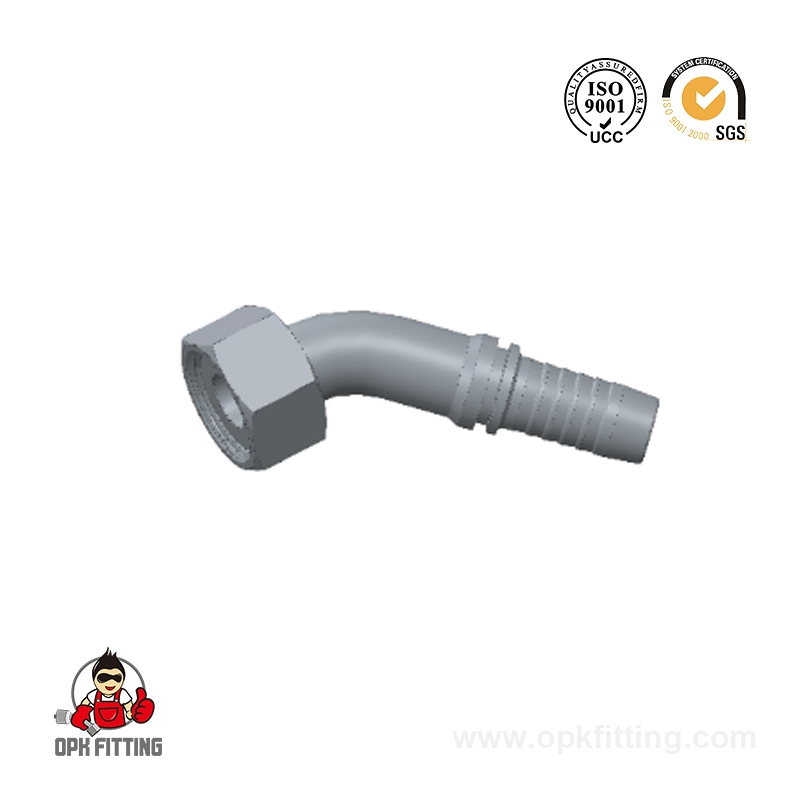

20241 45° Metric Female Flat Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20211 GB Metric Female Flat Seat
NEXT：20291 90° Metric Female Flat Seat

Specification
Contact Us

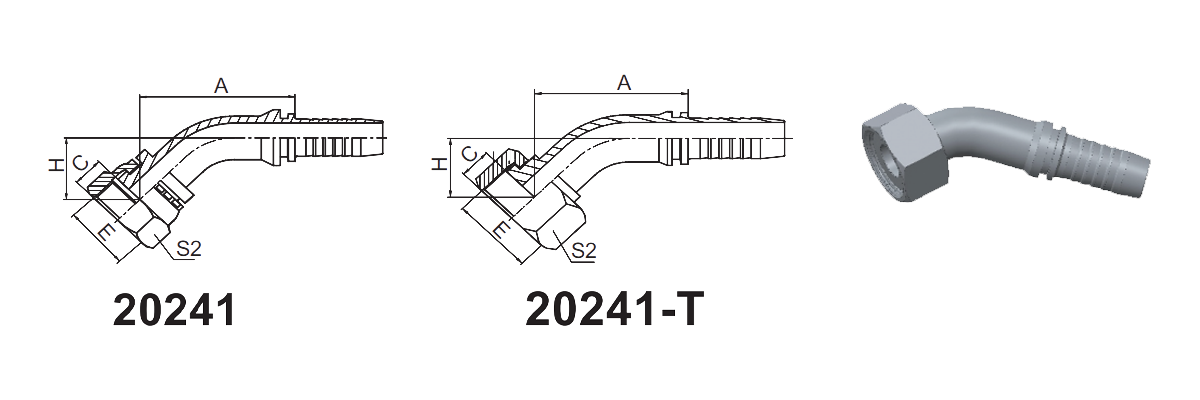

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
		DN	DASH	A	C	H	S2
20241-14-04T	M14X1.5	6	04	40.5	8.5	18.5	19
20241-14-05	M14X1.5	8	05	42.7	8.5	19.3	19
20241-16-05T	M16X1.5	8	05	43.4	8.5	20	22
20241-18-06T	M18X1.5	10	06	45.7	8	21.4	24
20241-22-08T	M22X1.5	13	08	58.9	10	24	27
20241-27-10T	M27X1.5	16	10	68.6	10	24.3	32
20241-30-12T	M30X1.5	19	12	77.4	11	30	36
20241-36-12T	M36X2	19	12	75	13	27.5	41
20241-36-14T	M36X2	22	14	77.3	13	27	41
20241-36-16T	M36X2	25	16	85.7	13	31.5	41
20241-39-16T	M39X2	25	16	83.9	13	29.7	46
20241-42-20W	M42X2	32	20	95.9	15	35.2	50
20241-45-20T	M45X2	32	20	94.5	15	33.8	55
20241-52-20T	M52X2	32	20	94.5	17	33.8	60
20241-52-24T	M52X2	38	24	108.5	17	37.7	60
20241-60-28T	M60X2	38	28	118.7	20	43.6	70
20241-64-32T	M64X2	51	32	127.8	23	45.6	75
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20242-xx-xx.
