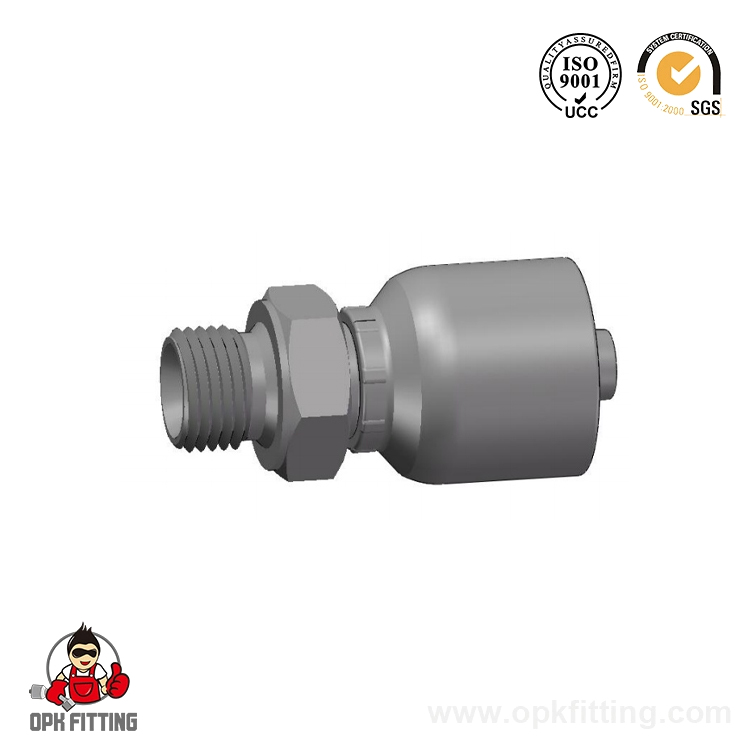

10611-RW Metric Male Double Use For 60° Cone Seat Or Bonded Seal

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20591-RW 90° Metric Female 24°Cone O-Ring H.T.DIN 3865
NEXT：20611-RW Metric Female 60° Cone

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS	DIMENSIONS	DIMENSIONS
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	A	C	S1
10611-14-04RW	M14X1.5	6	04	23.5	11	19
10611-14-06RW	M14X1.5	10	06	25	11	19
10611-16-04RW	M16X1.5	6	04	27.5	12	22
10611-16-05RW	M16X1.5	8	05	27.5	12	22
10611-18-06RW	M18X1.5	10	06	27.5	12	24
10611-22-06RW	M22X1.5	10	06	30.5	14	27
10611-22-08RW	M22X1.5	13	08	31	14	27
10611-24-10RW	M24X1.5	16	10	35	14	30
10611-26-10RW	M26X1.5	16	10	34.5	16	32
10611-27-10RW	M27X2	16	10	37	18	32
10611-30-12RW	M30X2	19	12	38	18	36
10611-33-16RW	M33X2	25	16	43	20	46
10611-42-20RW	M42X2	32	20	46	20	50
10611-45-20RW	M45X2	32	20	46	20	55
10611-48-24RW	M48X2	38	24	46	20	55
10611-52-24RW	M52X2	38	24	46	20	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10612-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
