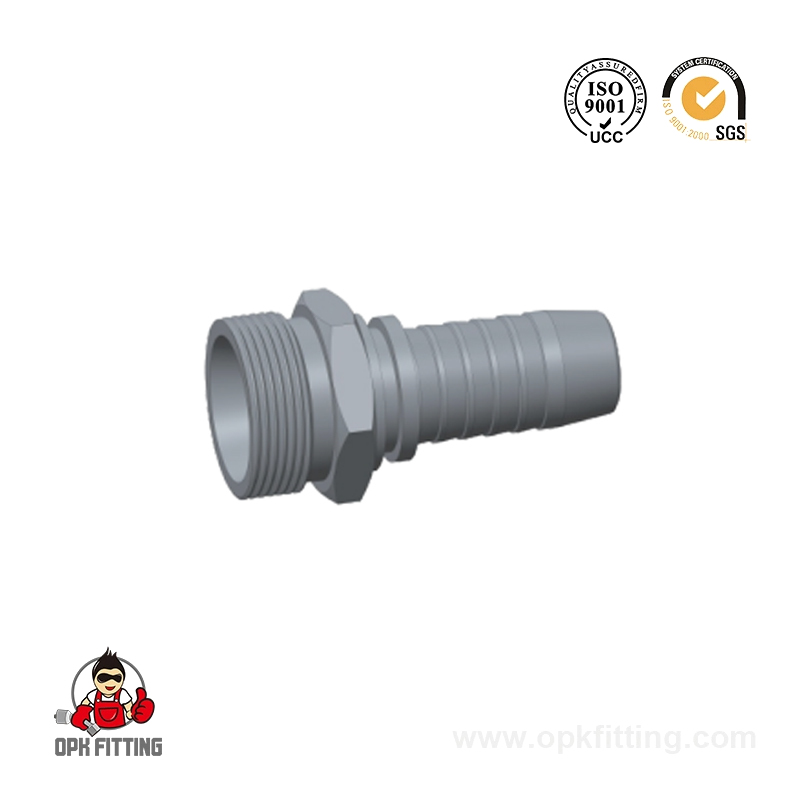

10411 Metric Male 24° Cone Seat L.T.

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

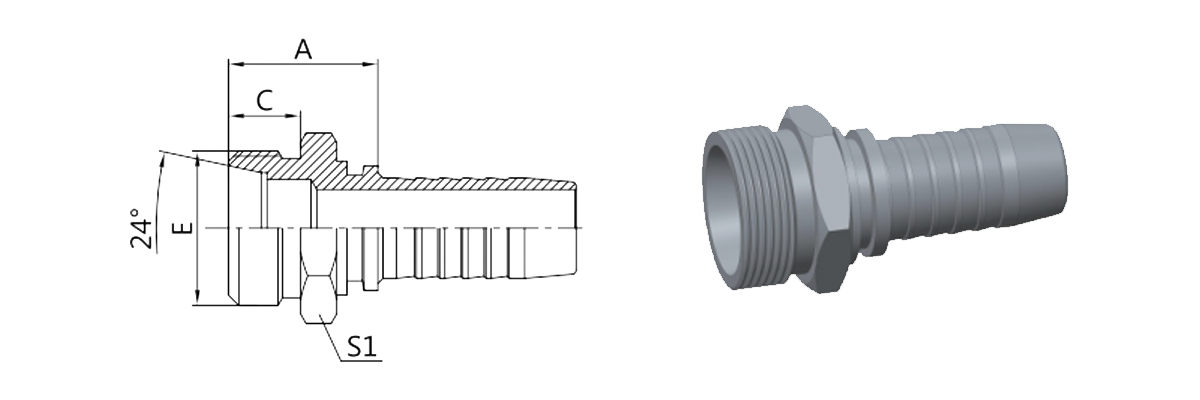

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	DIMENSIONS
		DN	DASH		A	C	S1
10411-12-04	M12X1.5	6	04	6	20.5	10	12
10411-14-04	M14X1.5	6	04	8	20.5
10411-14-05	M14X1.5	8	05	8	21.5	10	14
10411-16-04	M16X1.5	6	04	10	22.5	11	17
10411-16-05	M16X1.5	8	05	10	22.5	11	17
10411-16-06	M16X1.5	10	06	10	22.5	11	17
10411-18-05	M18X1.5	8	05	12	23.5	11	19
10411-18-06	M18X1.5	10	06	12	22.5	11	19
10411-22-06	M22X1.5	10	06	15	24.5	12	24
10411-22-08	M22X1.5	13	08	15	26	12	24
10411-26-08	M26X1.5	13	08	18	26.5	12	27
10411-26-10	M26X1.5	16	10	18	26.5	12	27
10411-27-10	M27X1.5	16	10	18	29.5	14	30
10411-30-10	M30X2	16	10	22	29.5	14	32
10411-30-12	M30X2	19	12	22	30	14	32
10411-36-16	M36X2	25	16	28	31.5	14	38
10411-45-20	M45X2	32	20	35	37	16	46
10411-52-24	M52X2	38	24	42	38	16	55
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10412-xx-xx.
