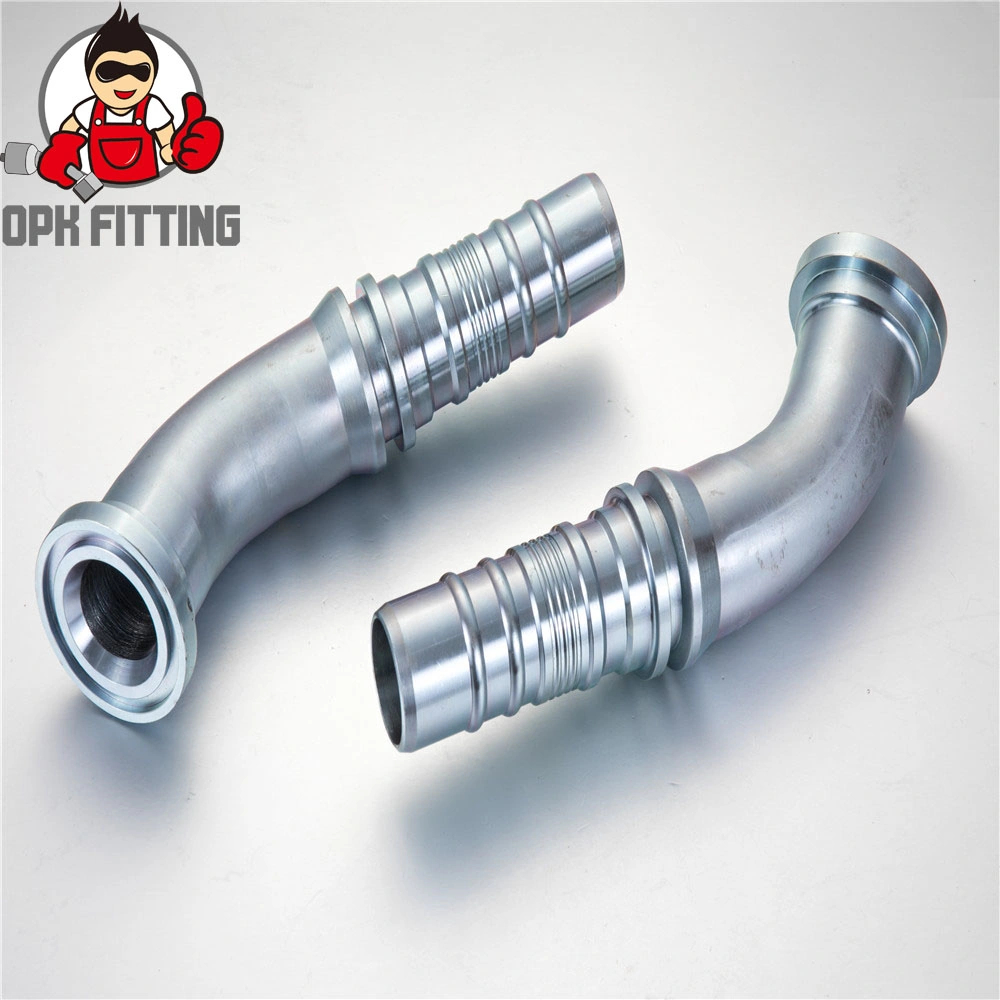

87641 45° SAE Flange 6000 PSI

Product Description
Product name: SAE Flange 3000 Psi Hydraulic Pipe Fitting 87611. 87612. 87613
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Male
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
87641-08-08	1/2"	12	08	58.9	31.7	24	24	7.75
87641-08-12	1/2"	20	12	77	31.7	24	29.6	7.75
87641-12-10	3/4"	16	10	72.5	41.3	32	28.2	8.76
87641-12-12	3/4"	20	12	75	41.3	32	26	8.76
87641-16-16	1"	25	16	89	47.6	38	35.5	9.53
87641-20-20	1.1/4"	32	20	102	54	44	41.5	10.29
87641-24-20	1.1/2"	32	20	105.8	63.5	51	45.1	12.57
87641-24-24	1.1/2"	40	24	119.8	63.5	51	49	12.57
87641-32-24	2"	40	24	125.4	79.4	67	54.7	12.57
87641-32-32	2"	50	32	144.8	79.4	67	61.9	12.57
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 87642-xx-xx.
