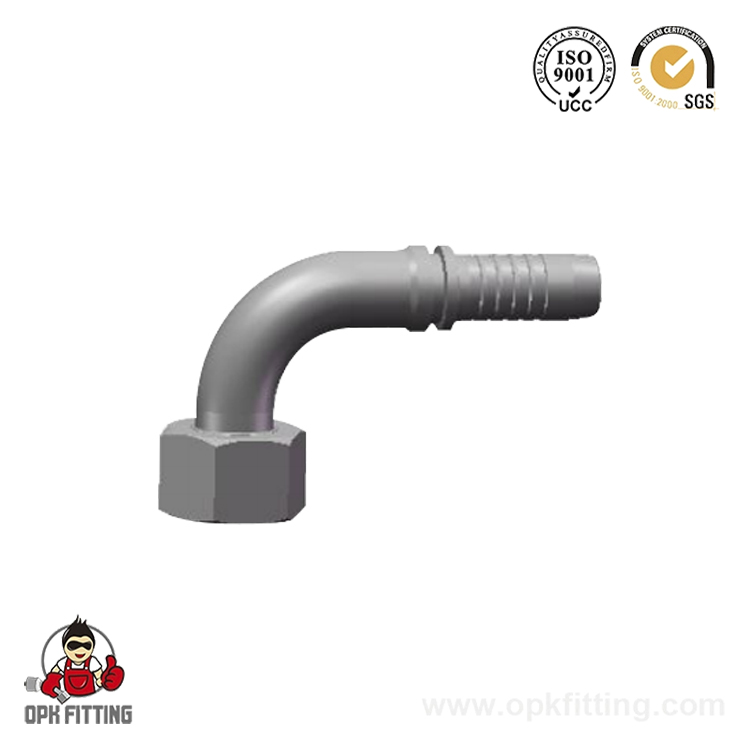

20491C 90° Metric Female 24°Multiseal L.T.Din 3868

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

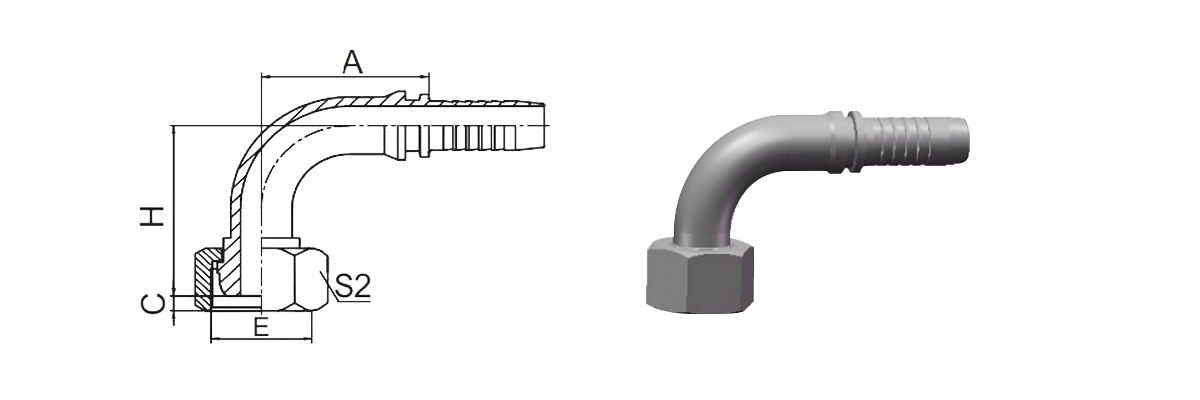

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	DIMENSIONS
		DN	DASH		A	C	H	S2
20491C-14-04	M14X1.5	6	04	8	30	3.5	28.5	19
20491C-16-04T	M16X1.5	6	04	10	30	3.5	29	19
20491C-16-05	M16X1.5	8	05	10	33	3.5	32	22
20491C-16-06	M16X1.5	10	06	10	35	3.5	32	22
20491C-18-06T	M18X1.5	10	06	12	37	3	35	22
20491C-22-08T	M22X1.5	13	08	15	42	4.5	42	27
20491C-26-10T	M26X1.5	16	10	18	51.2	4	51.5	32
20491C-30-12T	M30X2	19	12	22	57	7	55.5	36
20491C-36-12T	M36X2	19	12	28	55.3	6.5	55.5	41
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20492C-xx-xx.
