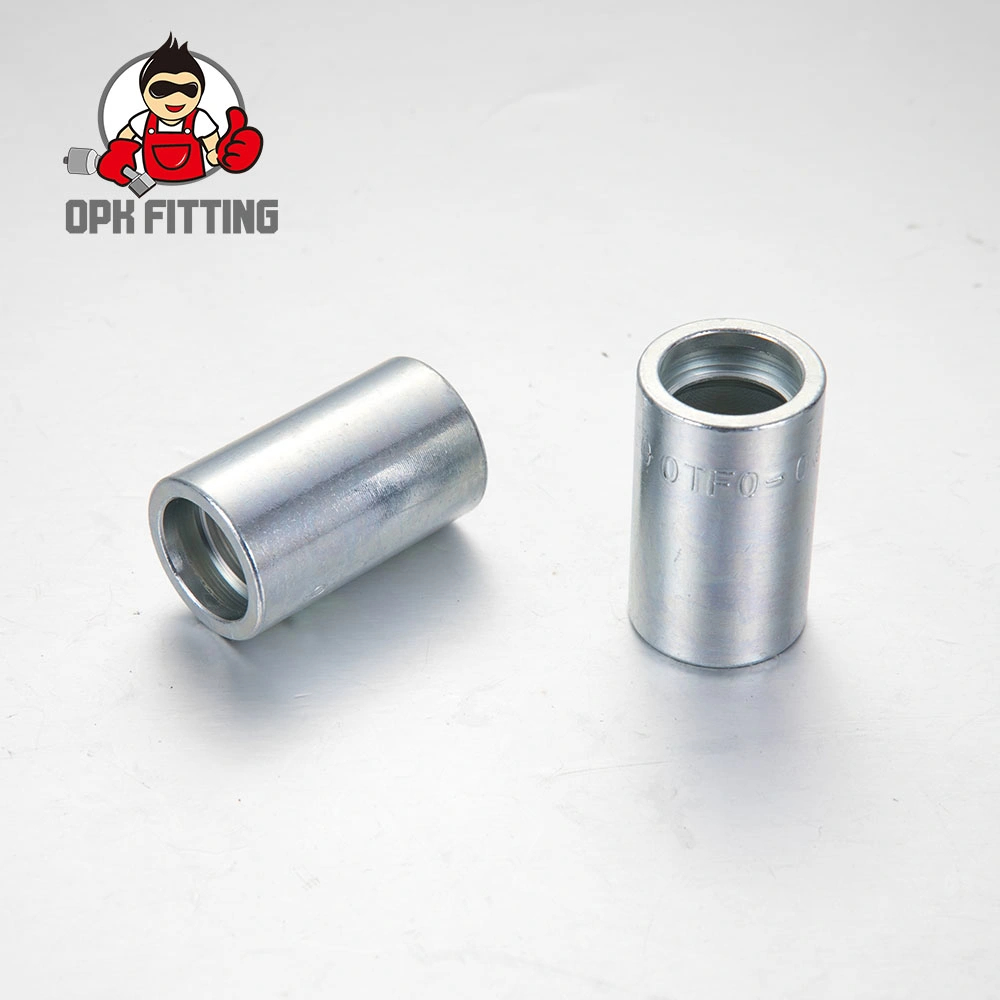

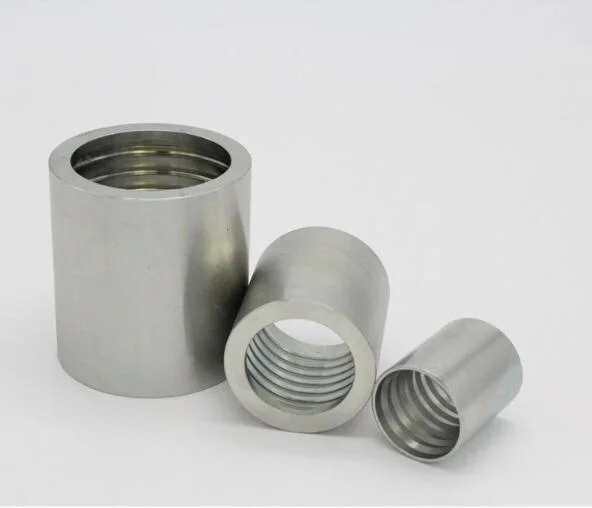

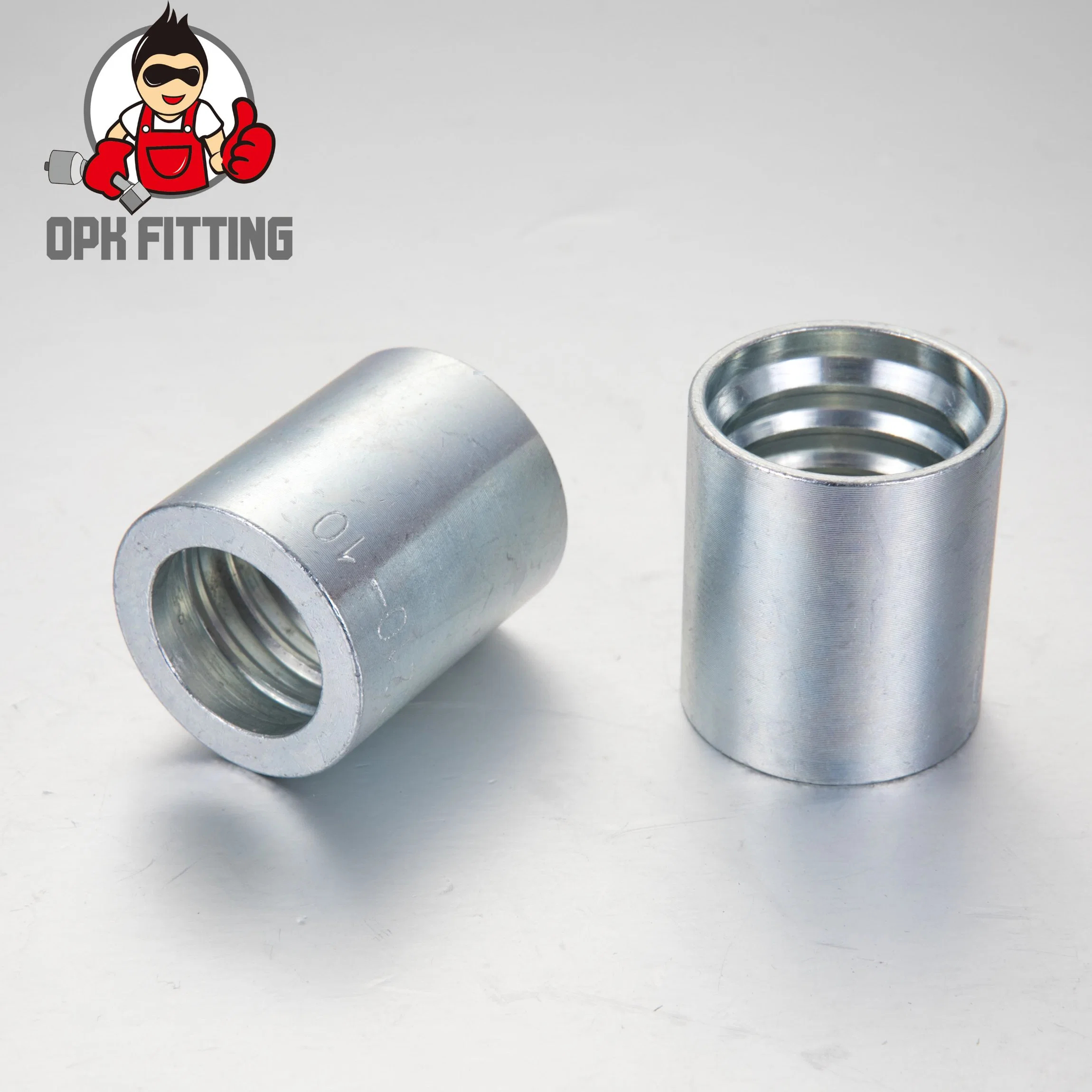

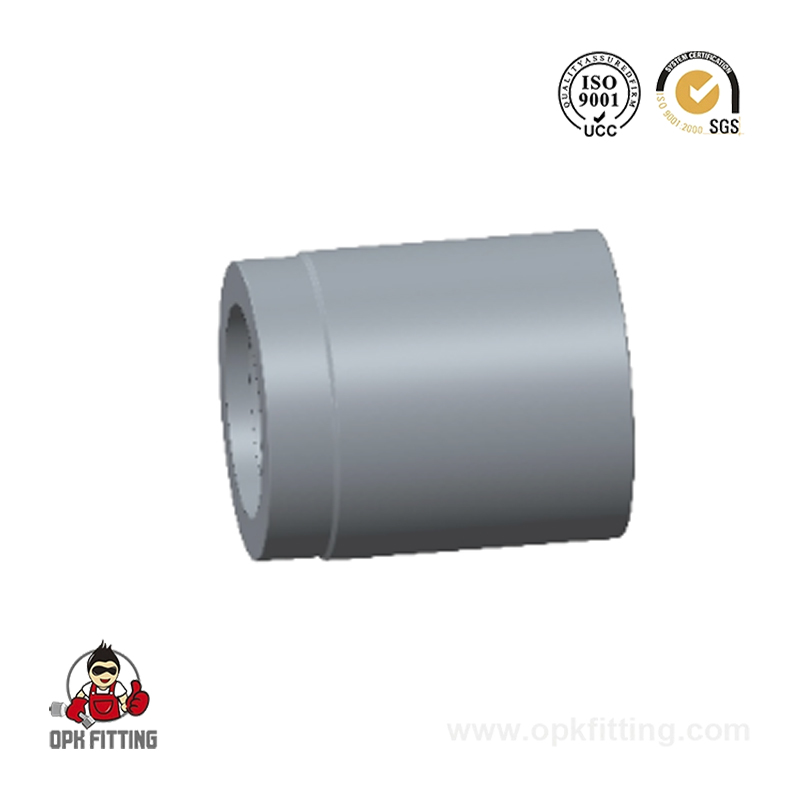

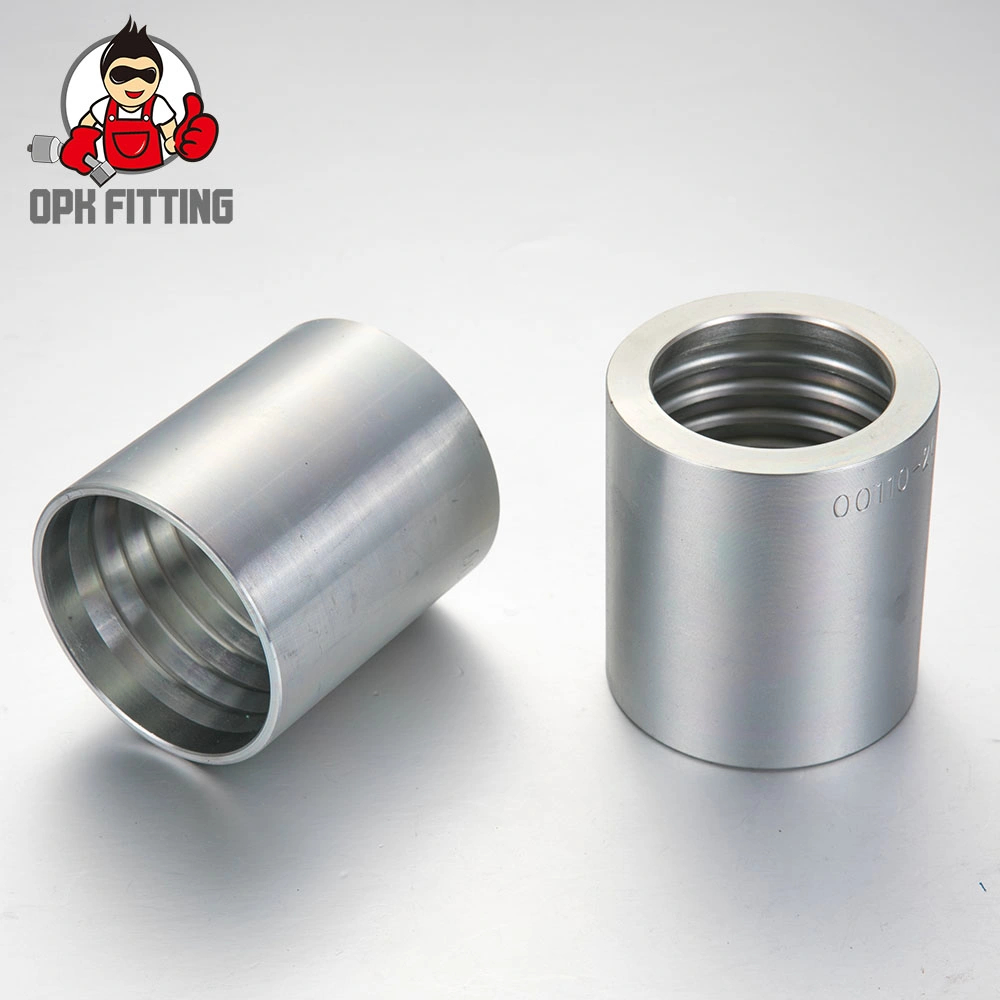

00110A Ferrule For Sae100R1AT/Din20022 1SN Hose

Description Of Products:
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample. Please contact our sales person for the free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN
Material:	Stainless Steel
Connection:	Welding
Surface Treatment:	Galvanized Sheet
Head Type:	Round
Business Type:	Manufacture

PART NO.	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS L
PART NO.	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS L
00110-03A	5	03	23
00110-04A	6	04	27.5
00110-05A	8	05	28
00110-06A	10	06	30
00110-08A	12	08	34
00110-10A	16	10	37
00110-12A	20	12	42
00110-16A	25	16	51

About OPK Fitting

OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.

Over 10 years of experience.

A team of skilled design professionals and talent.

Excellent product quality and thoughtful customer service.
