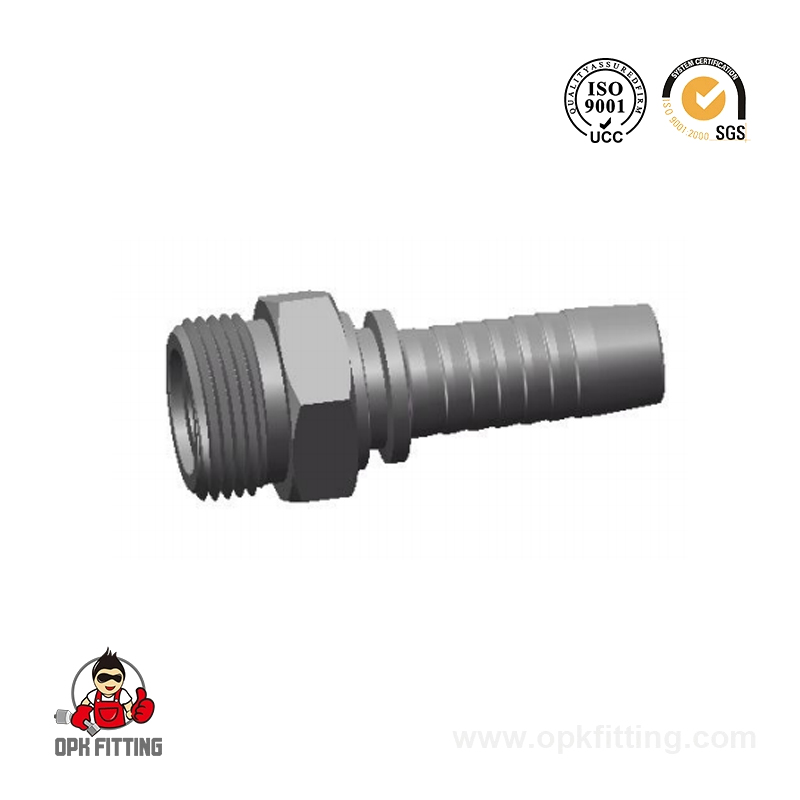

10311 JB O-Ring Metric Male Flat Seal

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20791 90° GB Metric Female 74° Cone Seat
NEXT：20711 GB Metric Female 74° Cone Seat

Specification
Contact Us

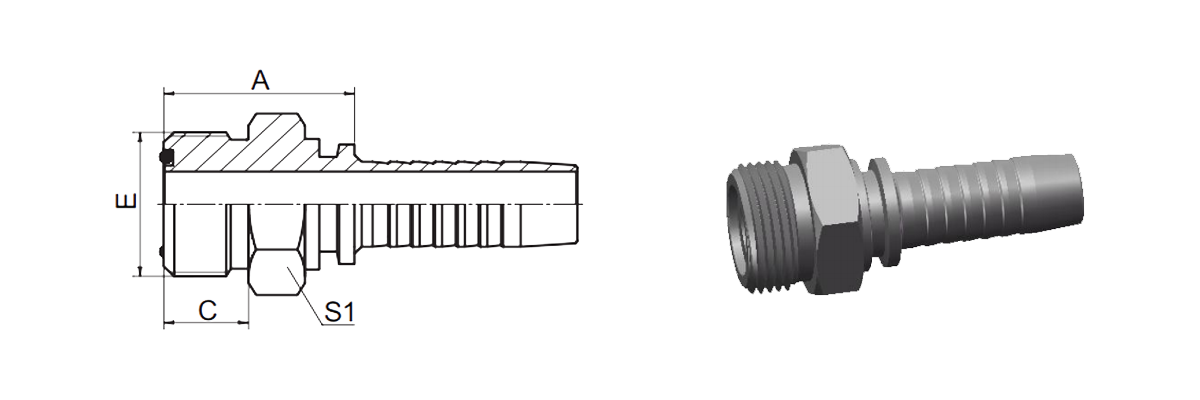

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
10311-12-04	M12X1.25	6	04	22.5	10	14
10311-12-04D	M12X1.5	6	04	23.5	11	14
10311-14-04	M14X1.5	6	04	23.5	11	14
10311-16-04	M16X1.5	6	04	23.5	11	17
10311-16-05	M16X1.5	8	05	23.5	11	17
10311-16-06	M16X1.5	10	06	23.5	11	17
10311-18-06	M18X1.5	10	06	23.5	11	19
10311-22-05	M22X1.5	8	05	27	12	24
10311-22-06	M22X1.5	10	06	27	12	24
10311-22-08	M22X1.5	13	08	27	12	24
10311-27-10	M27X1.5	16	10	31.5	13	30
10311-30-12	M30X1.5	19	12	33.5	14	32
10311-36-12	M36X2	19	12	35.5	16	38
10311-36-14	M36X2	22	14	35.5	16	38
10311-39-16	M39X2	25	16	39	16	41
10311-45-20	M45X2	32	20	44.5	20	46
10311-52-24	M52X2	38	24	47.5	22	55
10311-64-32	M64X2	51	32	52.5	27	65
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10312-xx-xx.
