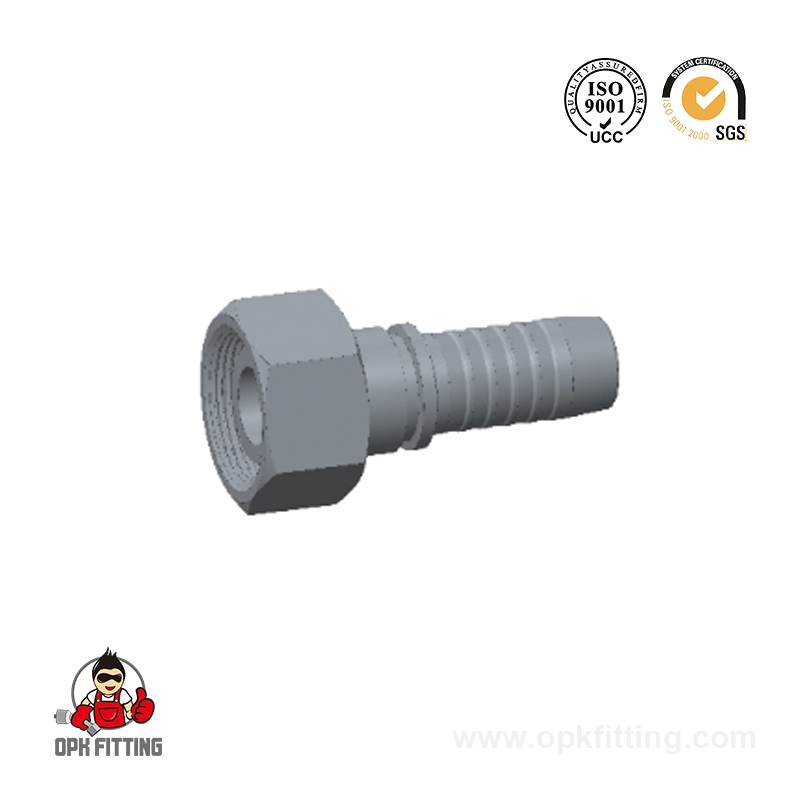

20511 Metric Female 24° Cone O-Ring H.T.Din3865

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
		DN	DASH			A	C	S2
20511-14-04T	M16X1.5	6	04	6	O04.5X1.5	24.5	1.1	17
20511-16-04T	M16X1.5	6	04	8	O06.5X1.5	25	1.5	19
20511-16-05T	M16X1.5	8	05	8	O06.5X1.5	26	1.5	19
20511-18-04T	M18X1.5	6	04	10	O08.0X1.5	25.5	1.5	22
20511-18-06T	M18X1.5	10	06	10	O08.0X1.5	26	1.5	22
20511-20-06T	M20X1.5	10	06	12	O10.0X1.5	28.5	2.5	24
20511-20-08W	M20X1.5	13	08	12	O10.0X1.5	26	2.5	24
20511-22-06T	M22X1.5	10	06	14	O11.0X2.0	26.5	2.5	27
20511-22-08T	M22X1.5	13	08	14	O11.0X2.0	28	2.5	27
20511-24-06T	M24X1.5	10	06	16	O13.0X2.0	27	3	30
20511-24-08T	M24X1.5	13	08	16	O13.0X2.0	27.5	3	30
20511-30-10T	M30X2	16	10	20	O16.3X2.4	33	2.5	36
20511-30-12T	M30X2	19	12	20	O16.3X2.4	35	2.5	36
20511-36-12T	M36X2	19	12	25	O20.3X2.4	35	3	46
20511-36-14T	M36X2	22	14	25	O20.3X2.4	34	3	46
20511-36-16W	M36X2	25	16	25	O20.3X2.4	34	3	46
20511-42-12T	M42X2	19	12	30	O25.3X2.4	37.5	4	50
20511-42-16T	M42X2	25	16	30	O25.3X2.4	38.5	4	50
20511-52-20T	M52X2	32	20	38	O33.3X2.4	41.5	4.5	60
20511-52-24T	M52X2	38	24	38	O33.3X2.4	41.5	4.5	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20512-xx-xx.
