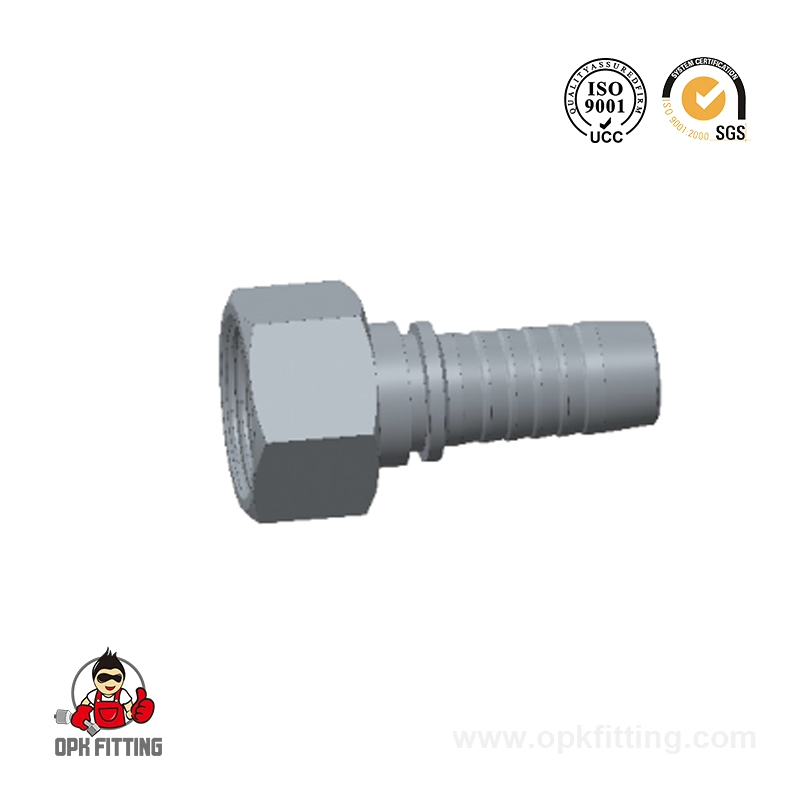

20711 GB Metric Female 74° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：10311 JB O-Ring Metric Male Flat Seal
NEXT：20741 45° GB Metric Female 74° Cone Seat

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
20711-10-02	M10X1	4	02	14	7.5	14
20711-12-03	M12X1.5	5	03	14	10	17
20711-12-04	M12X1.5	6	04	14.5	10	17
20711-14-04T	M14X1.5	6	04	15.5	8.5	17
20711-14-05	M14X1.5	8	05	15.5	8.5	19
20711-14-06	M14X1.5	10	06	15	8.5	19
20711-16-04T	M16X1.5	6	04	16.5	8	19
20711-16-05T	M16X1.5	8	05	16	8	19
20711-16-06	M16X1.5	10	06	16	8	22
20711-18-05T	M18X1.5	8	05	16	8	22
20711-18-06T	M18X1.5	10	06	17.5	10	22
20711-22-06T	M22X1.5	10	06	16	10	27
20711-22-08T	M22X1.5	13	08	18.5	10	27
20711-22-10	M22X1.5	16	10	19	10	27
20711-24-08T	M24X1.5	13	08	17.5	11	30
20711-27-08T	M27X1.5	13	08	18.5	11	32
20711-27-10T	M27X1.5	16	10	19.5	11	32
20711-27-12	M27X1.5	19	12	21.5	11	32
20711-30-10T	M30X1.5	16	10	18	11	36
20711-30-12T	M30X1.5	19	12	21.5	11	36
20711-33-10T	M33X2	16	10	19.5	13	41
20711-33-12T	M33X2	19	12	20	13	41
20711-33-14	M33X2	22	14	21.5	13	41
20711-36-12T	M36X2	19	12	20	14	41
20711-36-14T	M36X2	22	14	20	14	41
20711-36-16T	M36X2	25	16	22.5	14	41
20711-39-16T	M39X2	25	16	23.5	14	46
20711-42-16T	M42X2	25	16	23.5	15	50
20711-42-20W	M42X2	32	20	24.5	15	50
20711-45-20T	M45X2	32	20	25	15	55
20711-52-24T	M52X2	38	24	25	17	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20712-xx-xx.
