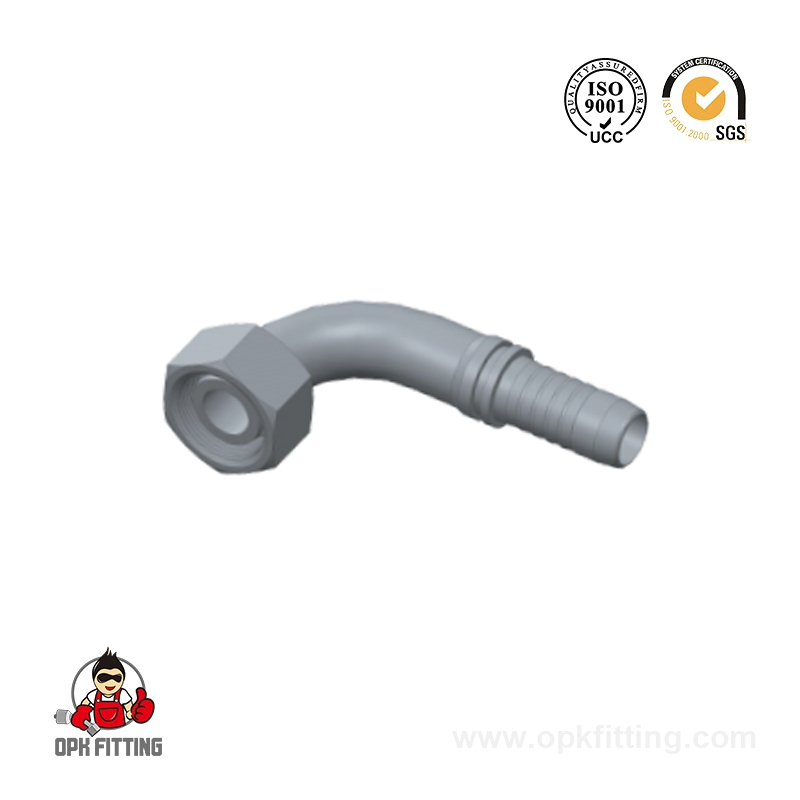

20591 90°Metric Female 24°Cone O-Ring H.T.Din 3865

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20541 45° Metric Female 24°Cone O-Ring H.T.Din3865
NEXT：10611 Metric Male Double Use For 60°Cone Seat Or Bonded Seal

Specification
Contact Us

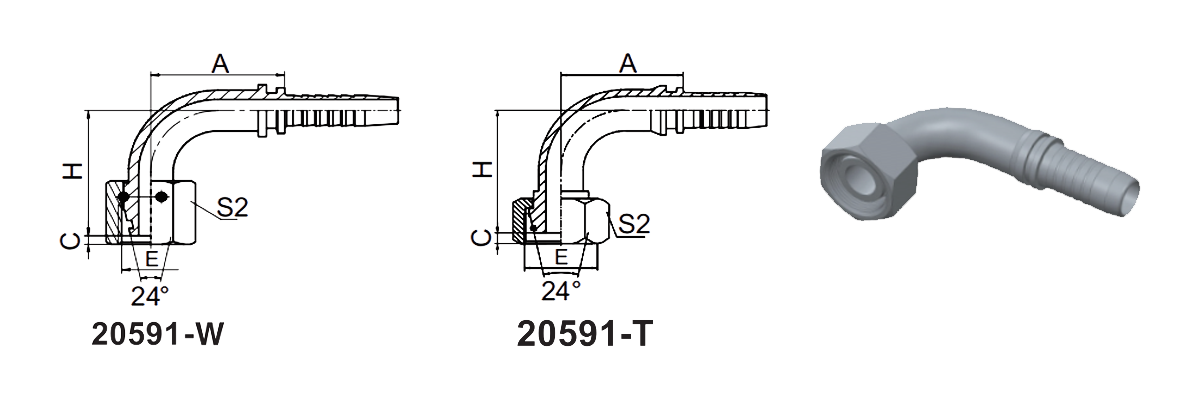

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
		DN	DASH
20591-14-04T	M16X1.5	6	04	6	O04.5X1.5	30	1.1	30.5	17
20591-16-04T	M16X1.5	6	04	8	O06.5X1.5	30	1.5	31	19
20591-16-05T	M16X1.5	8	05	8	O06.5X1.5	30	1.5	31	19
20591-18-05T	M18X1.5	8	05	10	O08.0X1.5	33	1.5	33.5	22
20591-18-06T	M18X1.5	10	06	10	O08.0X1.5	37	1.5	35	22
20591-20-06T	M20X1.5	10	06	12	O10.0X1.5	34.5	2.5	35.5	24
20591-20-08W	M20X1.5	13	08	12	O10.0X1.5	37.5	2.5	36.5	24
20591-22-06T	M22X1.5	10	06	14	O11.0X2.0	34.5	2.5	36	27
20591-22-08T	M22X1.5	13	08	14	O11.0X2.0	42	2.5	42.5	27
20591-24-08T	M24X1.5	13	08	16	O13.0X2.0	39.5	3	43	30
20591-24-10W	M24X1.5	16	10	16	O13.0X2.0	45	3	45.5	30
20591-30-10T	M30X2	16	10	20	O16.3X2.4	49	2.5	49.5	36
20591-30-12T	M30X2	19	12	20	O16.3X2.4	55.8	2.5	54.5	36
20591-36-12T	M36X2	19	12	25	O20.3X2.4	56	3	59	46
20591-36-14T	M36X2	22	14	25	O20.3X2.4	58	3	59	46
20591-42-16T	M42X2	25	16	30	O25.3X2.4	71	4	70	50
20591-52-20T	M52X2	32	20	38	O33.3X2.4	83	4.5	87	60
20591-52-24T	M52X2	38	24	38	O33.3X2.4	109.4	4.5	100	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20592-xx-xx.
