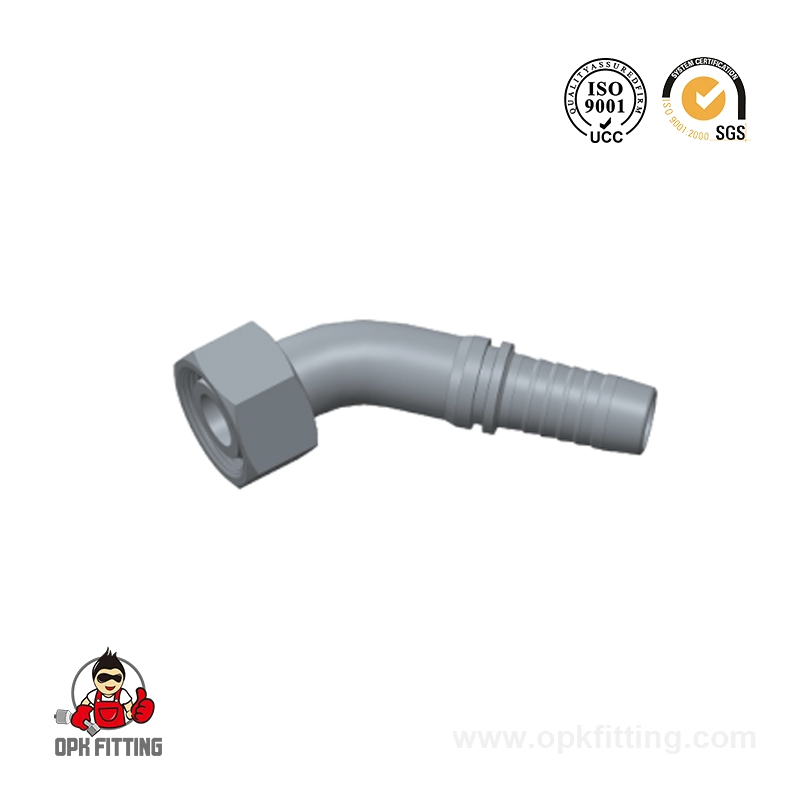

20541 45° Metric Female 24°Cone O-Ring H.T.Din3865

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
		DN	DASH			A	C	H	S2
20541-14-04W	M16X1.5	6	04	6	O04.5X1.5	38.1	1.1	16	17
20541-16-04T	M16X1.5	6	04	8	O06.5X1.5	38.4	1.5	16.3	19
20541-16-05T	M16X1.5	8	05	8	O06.5X1.5	38.4	1.5	16.3	19
20541-18-04T	M18X1.5	6	04	10	O08.0X1.5	39.1	1.5	17	22
20541-18-06T	M18X1.5	10	06	10	O08.0X1.5	43.8	1.5	17.3	22
20541-20-06T	M20X1.5	10	06	12	O10.0X1.5	42.5	2.5	18.5	24
20541-20-08W	M20X1.5	13	08	12	O10.0X1.5	44.8	2.5	19	24
20541-22-06T	M22X1.5	10	06	14	O11.0X2.0	42	2.5	18	27
20541-22-08T	M22X1.5	13	08	14	O11.0X2.0	49.6	2.5	20.7	27
20541-24-08T	M24X1.5	13	08	16	O13.0X2.0	47.3	3	21	30
20541-24-10W	M24X1.5	16	10	16	O13.0X2.0	49.7	3	22.9	30
20541-30-10T	M30X2	16	10	20	O16.3X2.4	57.3	2.5	25	36
20541-30-12T	M30X2	19	12	20	O16.3X2.4	65.8	2.5	26.7	36
20541-36-12T	M36X2	19	12	25	O20.3X2.4	67.1	3	30.5	46
20541-36-14T	M36X2	22	14	25	O20.3X2.4	69.6	3	30.5	46
20541-42-16T	M42X2	25	16	30	O25.3X2.4	81	4	35.5	50
20541-52-20T	M52X2	32	20	38	O33.3X2.4	94.2	4.5	42	60
20541-52-24T	M52X2	38	24	38	O33.3X2.4	114.1	4.5	43.4	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20542-xx-xx.
