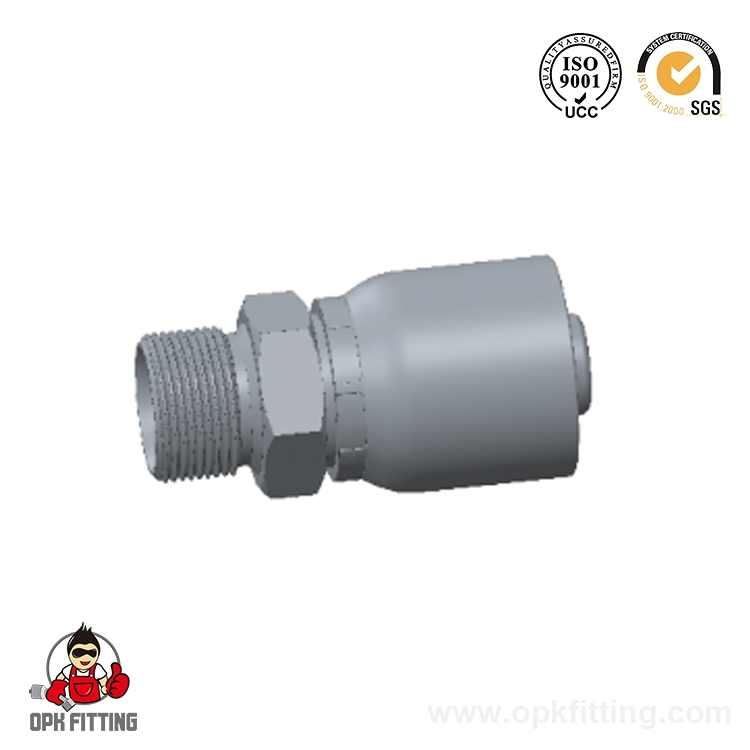

10511-RW Metric Male 24° Cone Seat L.T.

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20491-RW 90° Metric Female 24° Cone O-Ring L.T.
NEXT：20511-RW Metric Female 24° Cone O-Ring H.T.DIN3865

Specification
Contact Us

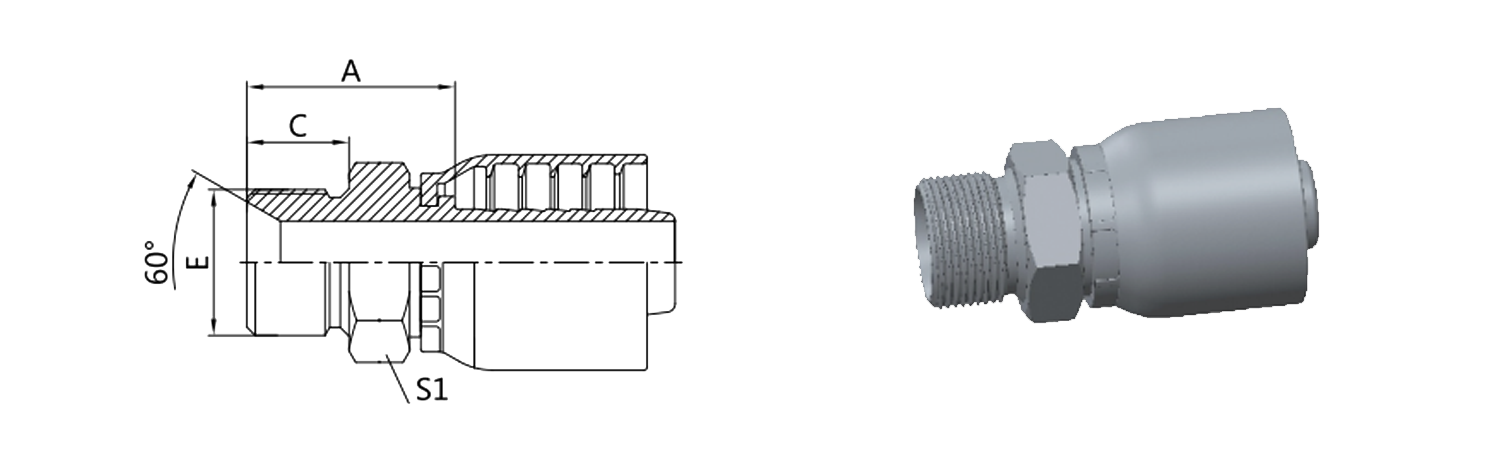

PART NO.	THREAD E	Hose Bore DN	Hose Bore DASH	TUBE O.D.	Dimensions A	Dimensions C	Dimensions S1
PART NO.	THREAD E	Hose Bore DN	Hose Bore DASH	TUBE O.D.	Dimensions A	Dimensions C	Dimensions S1
10511-14-04RW	M14X1.5	6	04	6	24.5	12	17
10511-16-04RW	M16X1.5	6	04	8	26.5	12	17
10511-18-04RW	M18X1.5	6	04	10	26.5	12	19
10511-20-05RW	M20X1.5	8	05	12	27	12	22
10511-18-06RW	M18X1.5	10	06	10	26.5	12	19
10511-20-06RW	M20X1.5	10	06	12	26.5	12	22
10511-22-05RW	M22X1.5	8	05	14	30.5	14	24
10511-22-06RW	M22X1.5	10	06	14	30.5	14	24
10511-20-08RW	M20X1.5	13	08	12	27	12	22
10511-22-08RW	M22X1.5	13	08	14	31	14	24
10511-24-08RW	M24X1.5	13	08	16	31.5	14	27
10511-28-10RW	M28X1.5	16	10	20	29.5	13	30
10511-30-10RW	M30X2	16	10	20	34.5	16	32
10511-30-12RW	M30X2	19	12	20	36	16	32
10511-36-12RW	M36X2	19	12	25	40.5	18	38
10511-36-16RW	M36X2	25	16	25	41.5	18	38
10511-42-16RW	M42X2	25	16	30	44	20	46
10511-42-20RW	M42X2	32	20	30	44	20	46
10511-52-20RW	M52X2	32	20	38	50	22	55
Note:1.For using with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10512-xx-xx.
