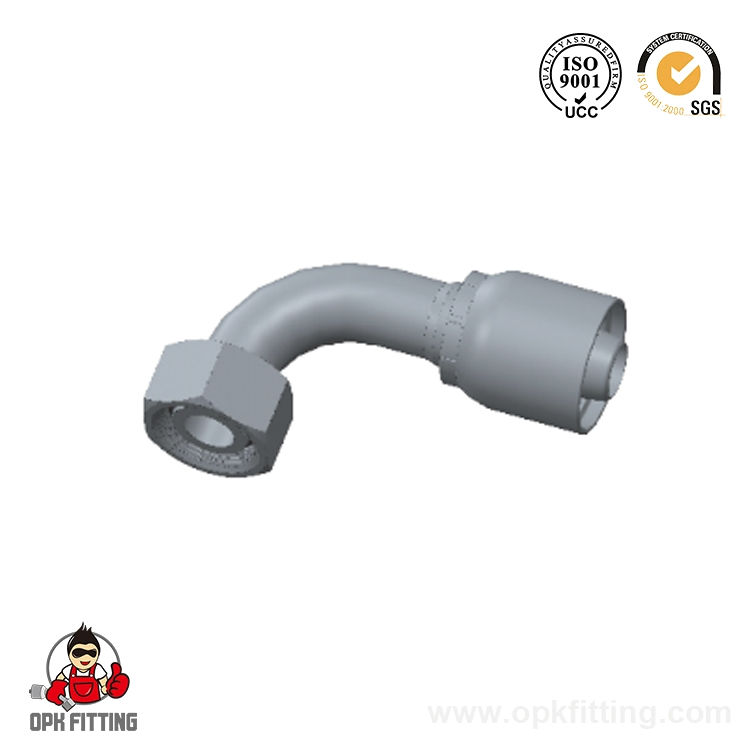

20491-RW 90° Metric Female 24° Cone O-Ring L.T.

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20441-RW 45° Metric Female 24° Cone O-Ring L.T.DIN3865
NEXT：10511-RW Metric Male 24° Cone Seat L.T.

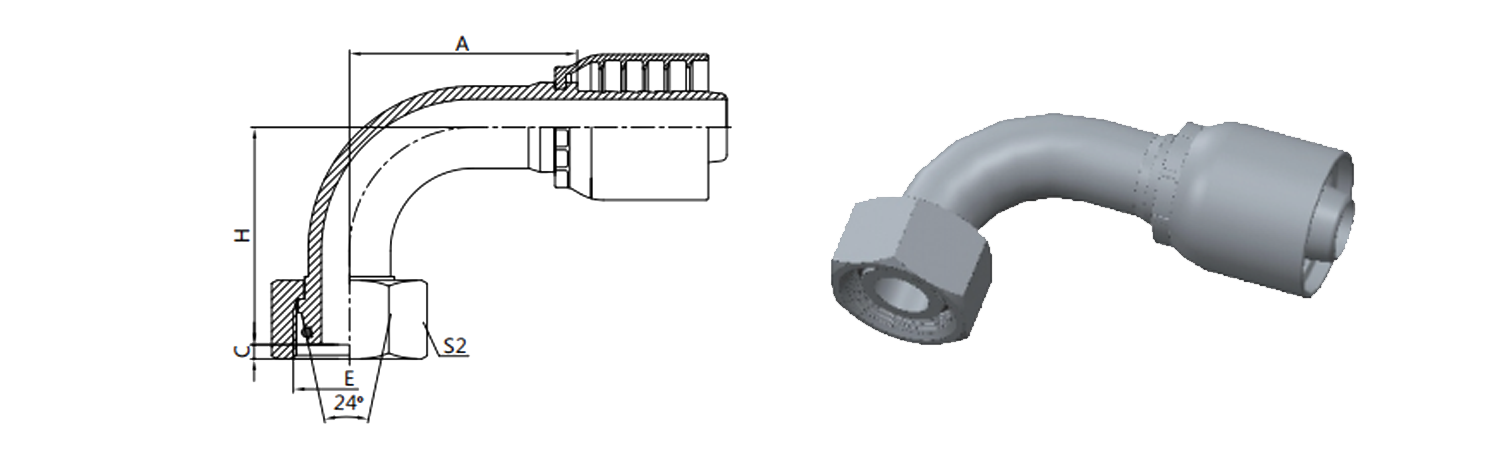

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	O RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	O RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20491-12-03RW	M12X1.5	5	03	6	O04.5X1.5	26.5	1.4	30	17
20491-12-04RW	M12X1.5	6	04	6	O04.5X1.5	27	1.4	30	17
20491-14-04RW	M14X1.5	6	04	8	O06.5X1.5	30	1.6	30.5	17
20491-16-04TRW	M16X1.5	6	04	10	O08.0X1.5	30	2	30.5	19
20491-16-05RW	M16X1.5	8	05	10	O08.0X1.5	33	2	33	19
20491-16-06W	M16X1.5	10	06	10	O08.0X1.5	35	2	33	19
20491-18-05TRW	M18X1.5	8	05	12	O10.0X1.5	33	1.5	33.5	22
20491-18-06TRW	M18X1.5	10	06	12	O10.0X1.5	37	1.5	36	22
20491-22-06TRW	M22X1.5	10	06	15	O12.0X2.0	34.5	3	36	27
20491-22-08TRW	M22X1.5	13	08	15	O12.0X2.0	42	3	41.5	27
20491-26-08TRW	M26X1.5	13	08	18	O15.0X2.0	39.5	2	42.9	32
20491-26-10TRW	M26X1.5	16	10	18	O15.0X2.0	51.2	2	51.5	32
20491-26-12RW	M26X1.5	19	12	18	O15.0X2.0	55.5	2	51.5	32
20491-30-10TRW	M30X2	16	10	22	O20.0X2.0	49	4	51.5	36
20491-30-12TRW	M30X2	19	12	22	O20.0X2.0	57	4	56	36
20491-36-12TRW	M36X2	19	12	28	O26.0X2.0	55.3	4.5	56	41
20491-36-14TRW	M36X2	22	14	28	O26.0X2.0	64.2	4.5	66.5	41
20491-45-16TRW	M45X2	25	16	35	O32.0X2.5	71	4	69.5	50
20491-45-20TRW	M45X2	32	20	35	O32.0X2.5	81.5	4	78.5	50
20491-52-20TRW	M52X2	32	20	42	O38.0X2.5	83	4	81	60
20491-52-24TRW	M52X2	38	24	42	O38.0X2.5	109.4	4	101	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20492-xx-xx.
