16711-RW JIC Male 74° Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：15611-RW NPT Male
NEXT：26711-RW JIC Female 74° Cone Seat

Specification
Contact Us

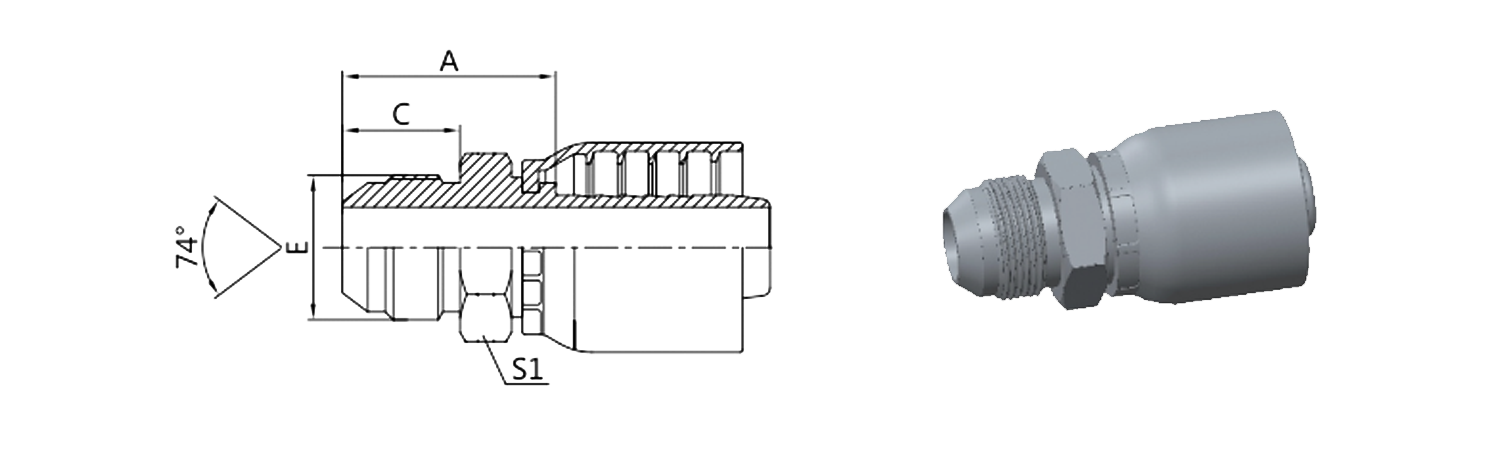

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
16711-04-04RW	7/16"X20	6	04	26.5	14	12
16711-05-04RW	1/2"X20	6	04	26.5	14	14
16711-05-05RW	1/2"X20	8	05	26.5	14	14
16711-05-06RW	1/2"X20	10	06	26.5	14	17
16711-06-04RW	9/16"X18	6	04	26.5	14.1	17
16711-06-05RW	9/16"X18	8	05	26.5	14.1	17
16711-06-06RW	9/16"X18	10	06	26.5	14.1	17
16711-08-06RW	3/4"X16	10	06	31.5	16.7	22
16711-08-08RW	3/4"X16	13	08	32	16.7	22
16711-10-06RW	7/8"X14	10	06	33.5	19.3	24
16711-10-08RW	7/8"X14	13	08	34	19.3	24
16711-10-10RW	7/8"X14	16	10	35	19.3	24
16711-12-08RW	1.1/16"X12	13	08	38.5	21.9	30
16711-12-10RW	1.1/16"X12	16	10	39.5	21.9	30
16711-12-12RW	1.1/16"X12	19	12	40	21.9	30
16711-12-16RW	1.1/16"X12	25	16	42.5	21.9	30
16711-14-10RW	1.3/16"X12	16	10	41.5	22.6	32
16711-14-12RW	1.3/16"X12	19	12	40.5	22.6	32
16711-16-12RW	1.5/16"X12	19	12	43	23.1	36
16711-16-16RW	1.5/16"X12	25	16	43.5	23.1	36
16711-20-16RW	1.5/8"X12	25	16	47	24.3	46
16711-20-20RW	1.5/8"X12	32	20	47	24.3	46
16711-24-20RW	1.7/8"X12	32	20	53	27.5	50
16711-24-24RW	1.7/8"X12	38	24	53	27.5	50
16711-32-32RW	2.1/2"X12	51	32	62	33.9	65
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 16712-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
