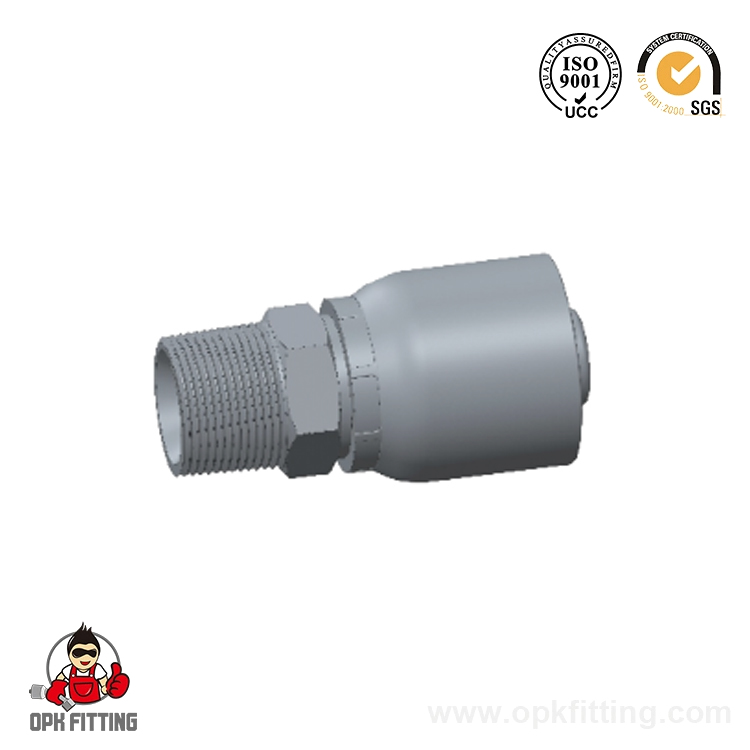

15611-RW NPT Male

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote
PREV：24291-RW 90° ORFS Female Flat Seat
NEXT：16711-RW JIC Male 74° Cone
  • Specification
  • Contact Us

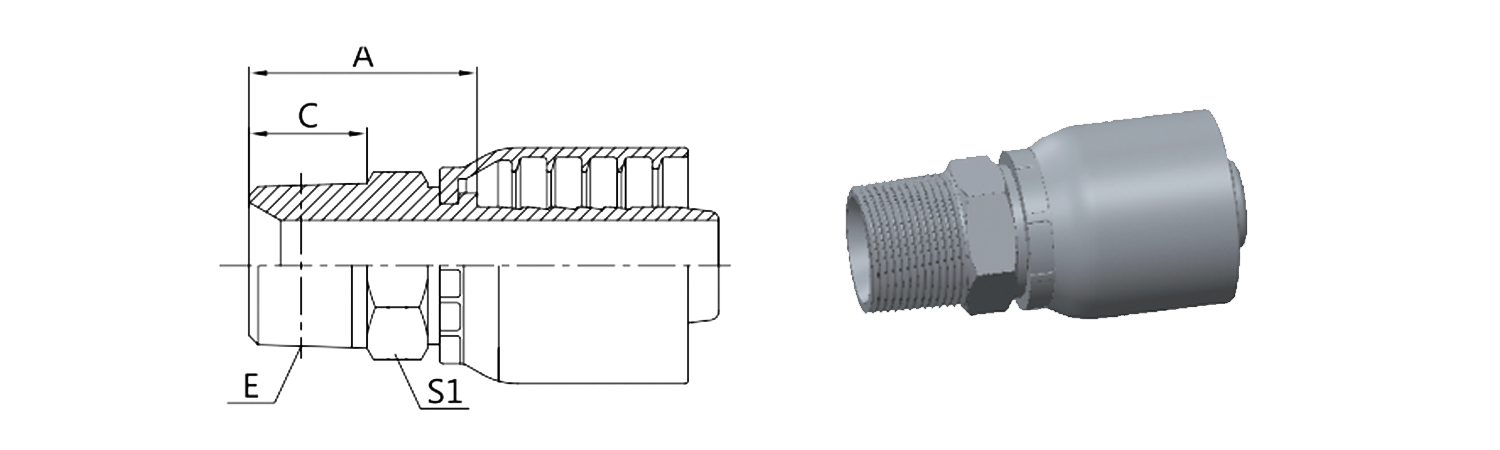

  •     PART NO. THREAD E HOSE BORE
    DN    		 HOSE BORE
    DASH    		 DIMENSIONS
    A    		 DIMENSIONS
    C    		 DIMENSIONS
    S1
    15611-02-04RW Z1/8"X27 6  04  22.5  10.5  12
    15611-04-04RW Z1/4"X18 6  04  28  15  17
    15611-04-05RW Z1/4"X18 8  05  28  15  17
    15611-04-06RW Z1/4"X18 10  06  27.5  15  17
    15611-06-04RW Z3/8"X18 6  04  29  16  19
    15611-06-05RW Z3/8"X18 8  05  29  16  19
    15611-06-06RW Z3/8"X18 10  06  29  16  19
    15611-06-08RW Z3/8"X18 13  08  30.5  16  19
    15611-08-06RW Z1/2"X14 10  06  34  19.5  22
    15611-08-08RW Z1/2"X14 13  08  34.5  19  22
    15611-08-10RW Z1/2"X14 16  10  35.5  19.5  22
    15611-12-08RW Z3/4"X14 13  08  37.5  19.5  27
    15611-12-10RW Z3/4"X14 16  10  37.5  19.5  27
    15611-12-12RW Z3/4"X14 19  12  38.5  19.5  27
    15611-12-16RW Z3/4"X14 25  16  39.5  20  32
    15611-16-10RW Z1"X11.5 16  10  45  25.5  36
    15611-16-12RW Z1"X11.5 19  12  45  25.5  36
    15611-16-16RW Z1"X11.5 25  16  46.5  25.5  36
    15611-20-16RW Z1.1/4"X11.5 25  16  49.5  26.5  46
    15611-20-20RW Z1.1/4"X11.5 32  20  50.5  26.5  46
    15611-24-24RW Z1.1/2"X11.5 38  24  51  26  50
    15611-32-32RW Z2"X11.5 51  32  55  27.5  65
    Note: 1.For use with braided hoses.
    2.If use with spiral hoses, hose fitting series number is 15612-xx-xx.
