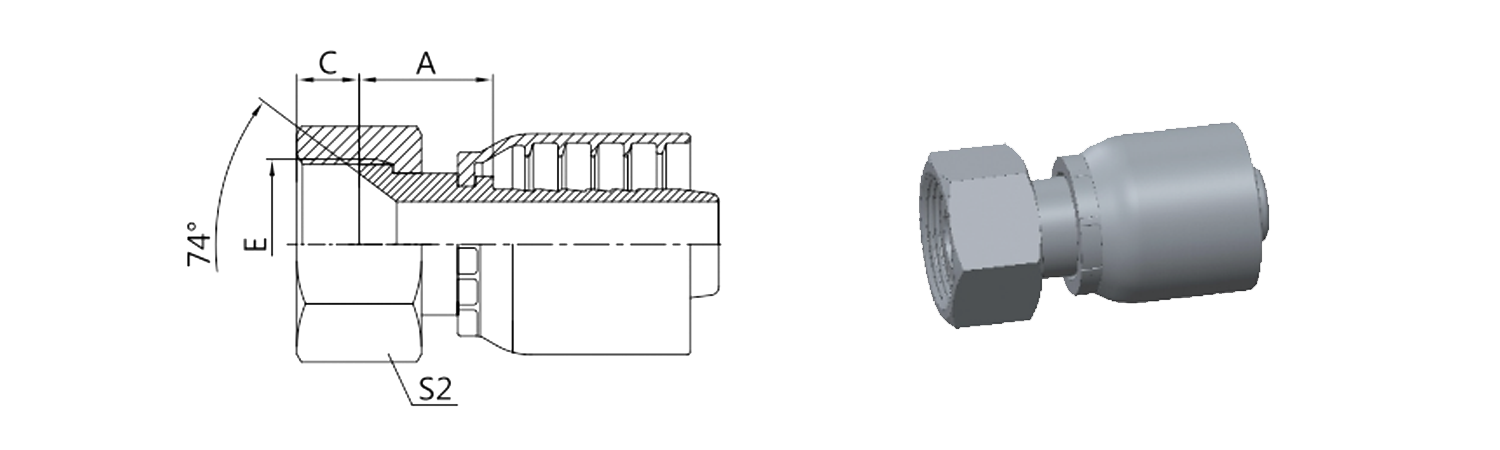

20711-RW GB Metric Female 74° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20611-RW Metric Female 60° Cone
NEXT：20741-RW 45° GB Metric Female 74° Cone Seat

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
20711-14-04TRW	M14X1.5	6	04	15.5	8.5	17
20711-16-04TRW	M16X1.5	6	04	16.5	8	19
20711-16-05TRW	M16X1.5	8	05	16	8	19
20711-18-05TRW	M18X1.5	8	05	16	8	22
20711-18-06TRW	M18X1.5	10	06	17.5	10	22
20711-22-06TRW	M22X1.5	10	06	16	10	27
20711-22-08TRW	M22X1.5	13	08	18.5	10	27
20711-24-08TRW	M24X1.5	13	08	17.5	11	30
20711-27-08TRW	M27X1.5	13	08	18.5	11	32
20711-27-10TRW	M27X1.5	16	10	19.5	11	32
20711-27-12RW	M27X1.5	19	12	21.5	11	32
20711-30-10TRW	M30X1.5	16	10	18	11	36
20711-30-12TRW	M30X1.5	19	12	21.5	11	36
20711-33-10TRW	M33X2	16	10	19.5	13	41
20711-33-12TRW	M33X2	19	12	20	13	41
20711-33-14RW	M33X2	22	14	21.5	13	41
20711-36-12TRW	M36X2	19	12	20	14	41
20711-36-14TRW	M36X2	22	14	20	14	41
20711-36-16TRW	M36X2	25	16	22.5	14	41
20711-39-16TRW	M39X2	25	16	23.5	14	46
20711-42-16TRW	M42X2	25	16	23.5	15	50
20711-42-20RW	M42X2	32	20	24.5	15	50
20711-45-20TRW	M45X2	32	20	25	15	55
20711-52-24TRW	M52X2	38	24	25	17	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20712-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
