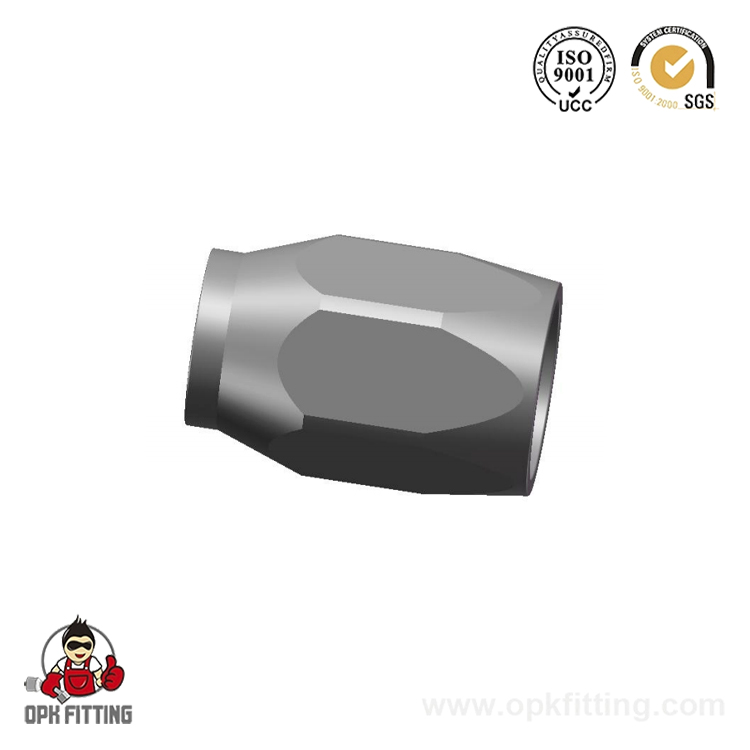

00518 Ferrule For Sae 100 R5 Hose

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote
  • Specification
  • Contact Us

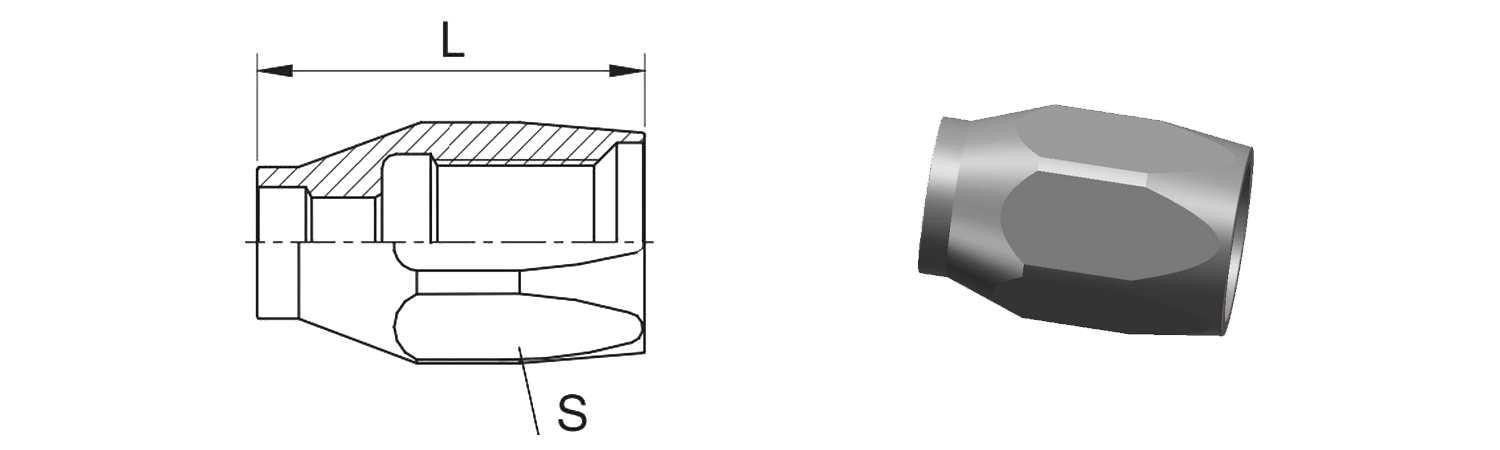

  • PART NO. HOSE   DASH DIMENSIONS
    L    		 DIMENSIONS
    S
    00518-04 04  28  17
    00518-05 05  30.5  19
    00518-06 06  33  22
    00518-08 08  42  24
    00518-10 10  45.5  30
    00518-12 12  53.5  32
    00518-16 16  42  36
    00518-20 20  44.5  46
    00518-24 24  47  50
    00518-32 32  57  65
