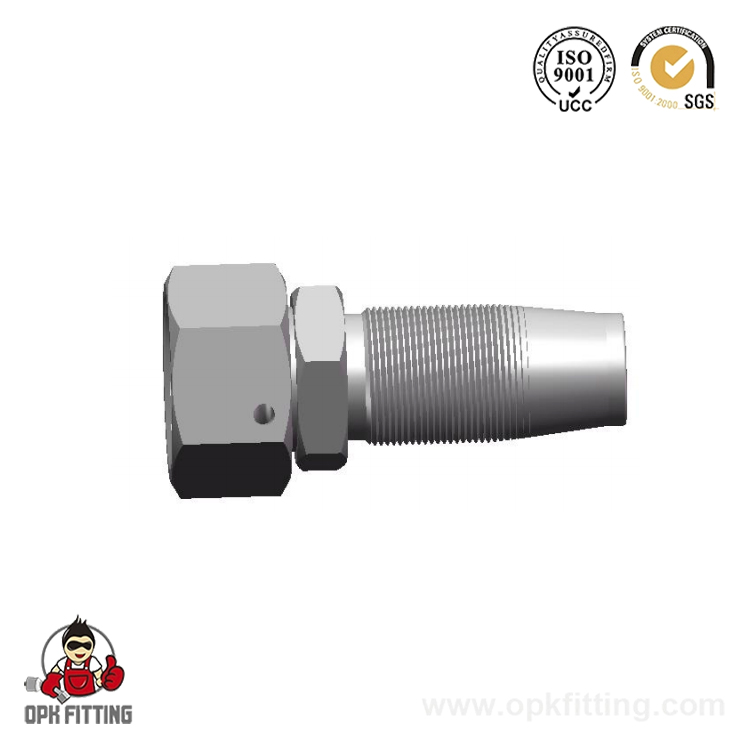

20418DW Metric Female 24°Cone O-RING L.T.

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

Specification
Contact Us

PART NO.	THREADE	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
20418D-14-04W	M14X1.5	5	04	8	31	1.4	12	17
20418D-16-05W	M16X1.5	6	05	10	32.9	2.1	14	19
20418D-18-06W	M18X1.5	8	06	12	33	1.8	17	22
20418D-22-08W	M22X1.5	11	08	15	36	3	19	27
20418D-26-10W	M26X1.5	13	10	18	41.5	2.1	27	32
20418D-30-12W	M30X2	16	12	22	43.5	3.8	30	36
20418D-36-16W	M36X2	22	16	28	41.5	4.5	36	41
20418D-45-16W	M45X2	22	16	35	45	4	41	50
20418D-45-20W	M45X2	28	20	35	45	4	41	50
20418D-52-24W	M52X2	35	24	42	48.5	4	50	60
Note:Suitable for SAE 100R5 hose.
