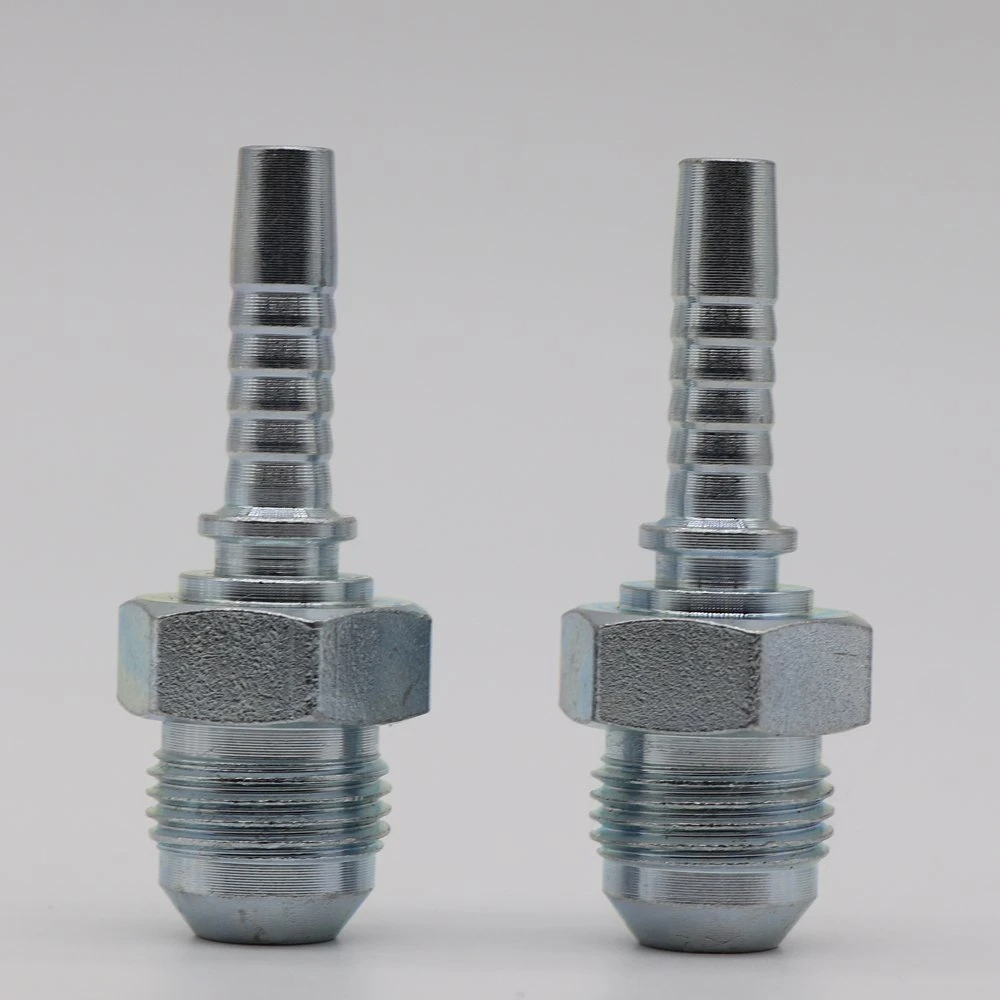

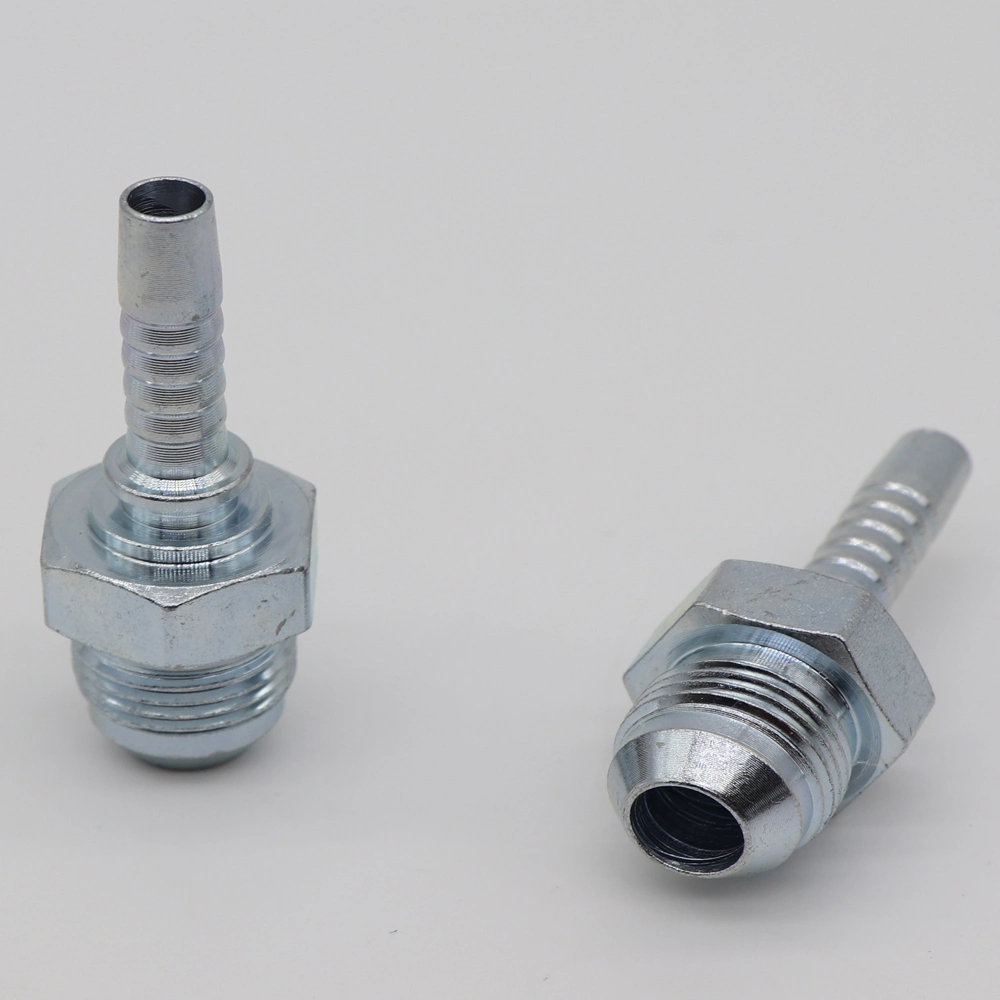

16711 JIC Male 74° Cone

Product Description
Product name: Jic Male 74° Cone Hydraulic Pipe Fitting (16711)
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard	DIN, GB, JIS
Material	Medium Carbon Steel
Connection	Male
Surface Treatment	Galvanized Sheet
Head Type	Hexagon
Delivery Time	Big Quantity:30 Days After Payment
HS	73072900
Trademark	OEM OR NO BRAND
Transport Package	Plastic Bag+Box+Pallet
Specification	DIN SGS
Origin	China

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
16711-04-03	7/16"X20	5	03	26	14	12
16711-04-04	7/16"X20	6	04	26.5	14	12
16711-05-04	1/2"X20	6	04	26.5	14.1	14
16711-05-05	1/2"X20	8	05	26.5	14.1	17
16711-05-06	1/2"X20	10	06	27	14.1	17
16711-06-04	9/16"X18	6	04	26.5	14.1	17
16711-06-05	9/16"X18	8	05	26.5	14.1	17
16711-06-06	9/16"X18	10	06	27	14.1	17
16711-06-08	9/16"X18	12	8	29.5	14.1	22
16711-08-06	3/4"X16	10	06	30.5	16.7	22
16711-08-08	3/4"X16	12	08	32	16.7	22
16711-10-06	7/8"X14	10	06	33.5	19.3	24
16711-10-08	7/8"X14	12	08	34	19.3	24
16711-10-10	7/8"X14	16	10	35	19.3	24
16711-12-08	1.1/16"X12	12	08	39	21.9	27
16711-12-10	1.1/16"X12	16	10	39	21.9	27
16711-12-12	1.1/16"X12	20	12	40	21.9	27
16711-12-16	1.1/16"X12	25	16	42	21.9	32
16711-14-10	1.3/16"X12	16	10	41.5	22.6	32
16711-14-12	1.3/16"X12	20	12	40.5	22.6	32
16711-16-12	1.5/16"X12	20	12	42	23.1	36
16711-16-16	1.5/16"X12	25	16	43.5	23.1	36
16711-20-16	1.5/8"X12	25	16	47	24.3	46
16711-20-20	1.5/8"X12	32	20	48.3	24.3	46
16711-24-20	1.7/8"X12	32	20	53	27.5	50
16711-24-24	1.7/8"X12	40	24	53	27.5	50
16711-32-24	2.1/2"X12	40	24	62	33.9	65
16711-32-32	2.1/2"X12	50	0	62	33.9	65
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 16712-xx-xx.
