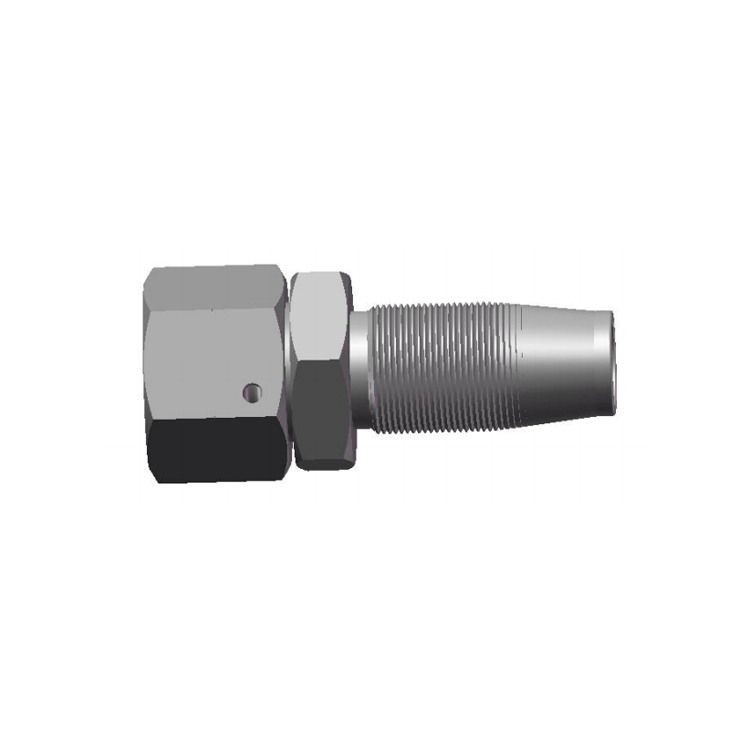

22618DW BSP Female 60°Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

Specification
Contact Us

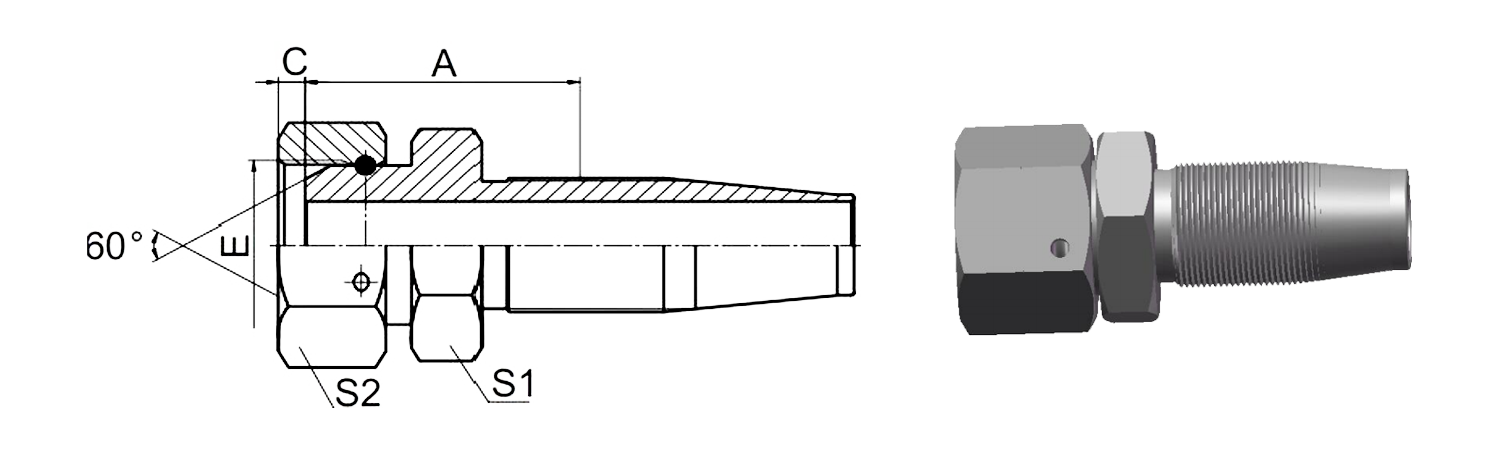

PART NO.	THREADE	HOSE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
22618D-04-04W	G1/4"X19	04	26	5.5	14	19
22618D-06-05W	G3/8"X19	05	29.1	6.3	17	22
22618D-06-06W	G3/8"X19	06	30	6.3	17	22
22618D-08-08W	G1/2"X14	08	35	7.5	19	27
22618D-10-10W	G5/8"X14	10	35.5	9.5	22	30
22618D-12-12W	G3/4"X14	12	38.5	10.9	27	32
22618D-12-12W	G3/4"X14	12	38.5	10.9	27	32
22618D-16-16W	G1"X11	16	37	11.7	38	41
22618D-20-20W	G1.1/4"X11	20	43.5	11	41	50
Note:Suitable for SAE 100R5 hose.
