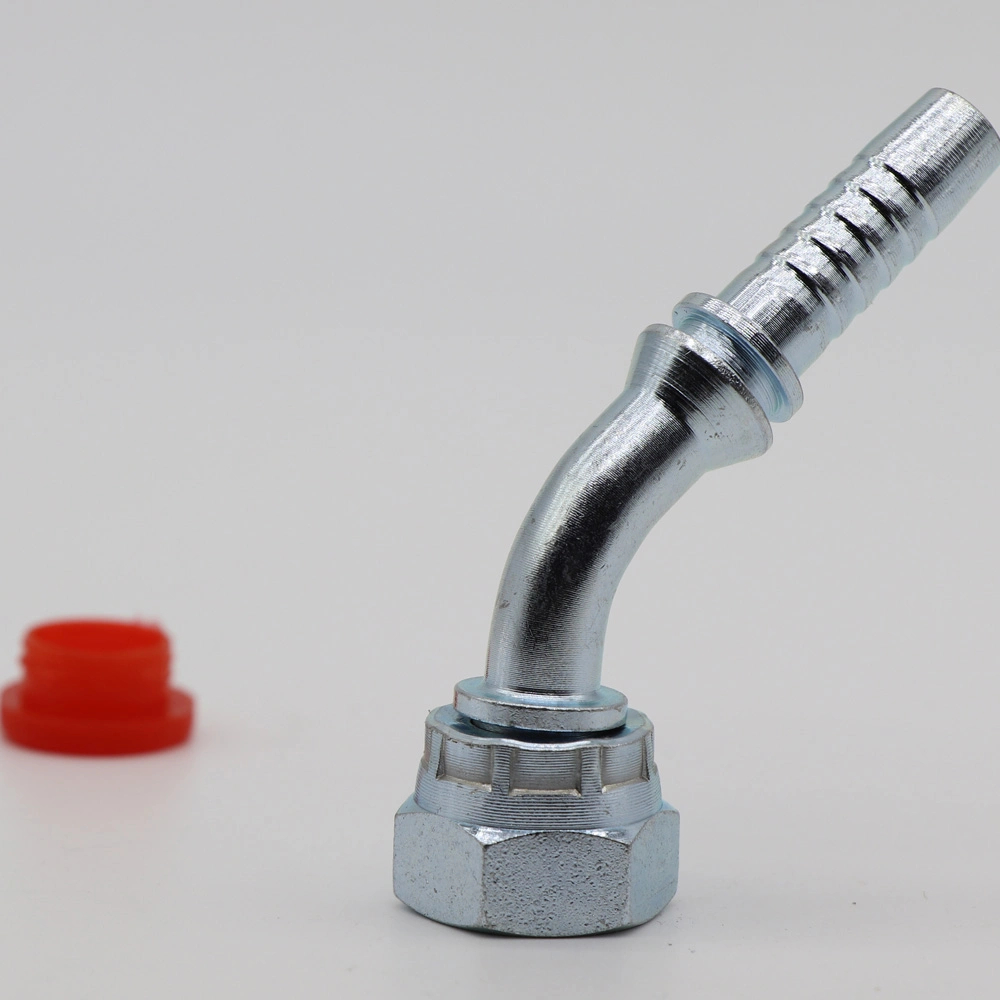

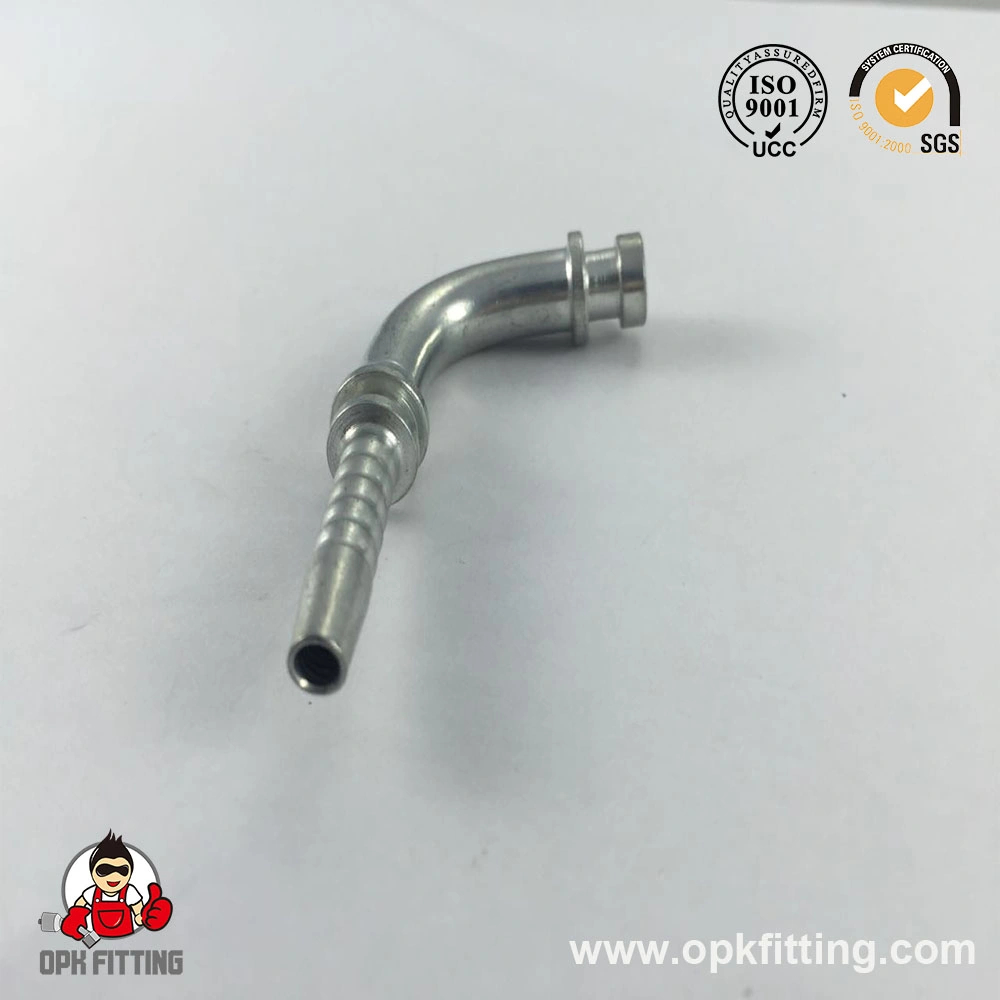

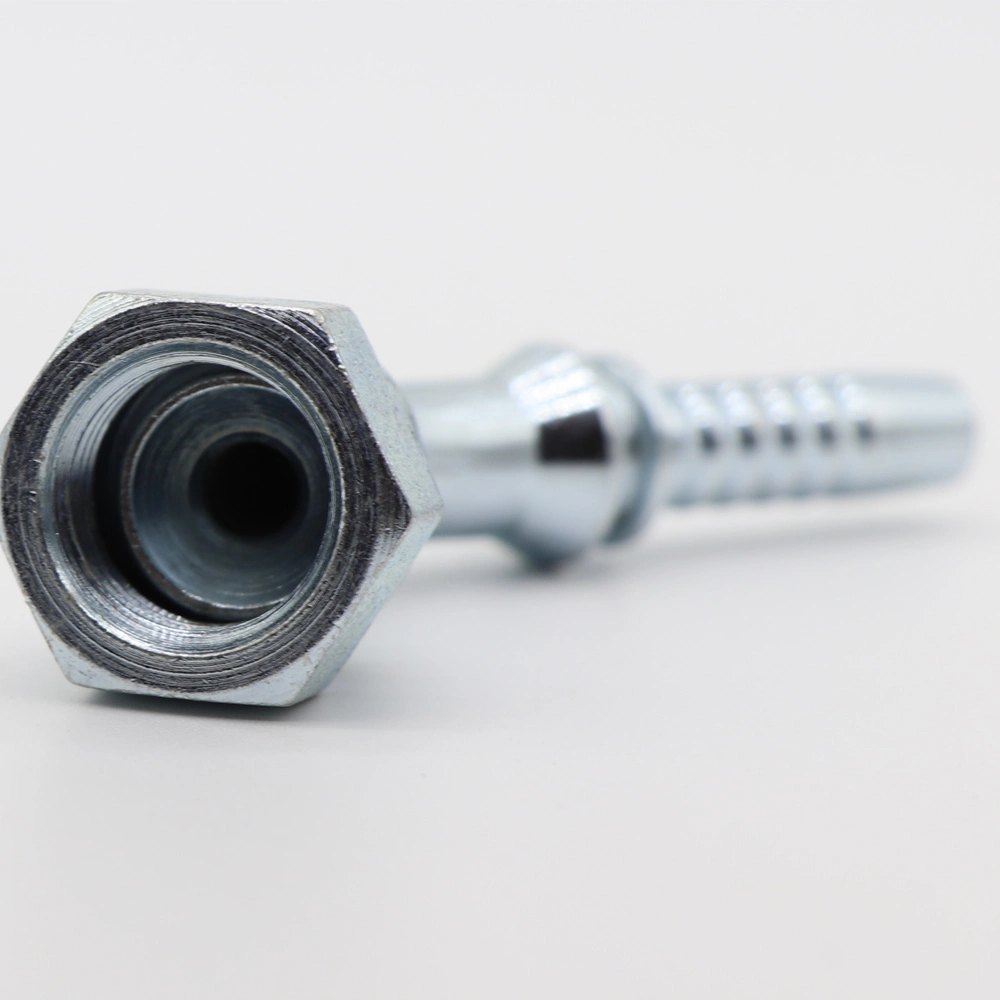

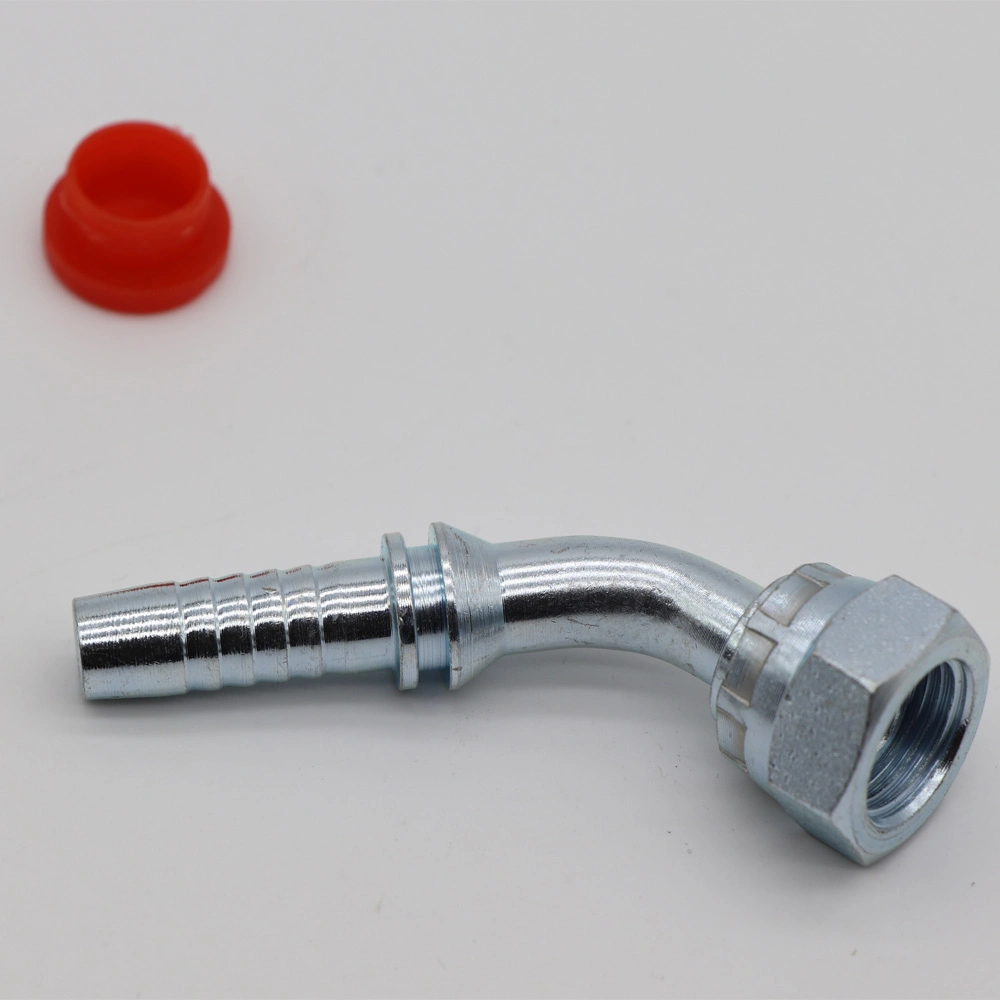

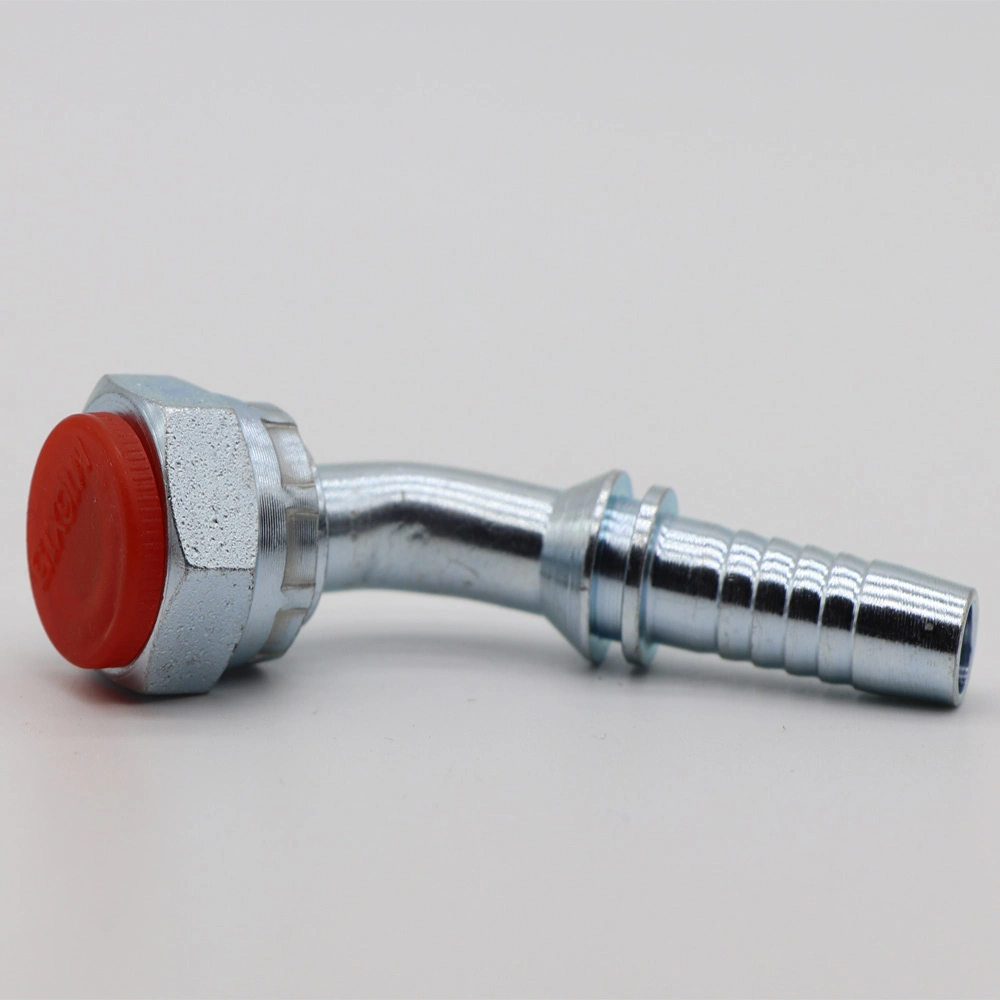

20791 90° GB Metric Female 74° Cone Seat

Product Description
Product name: Hydraulic Hose Fitting with Zinc Plated, Metric Female 74 Degree Cone Seat 20791 (T)
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Female
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

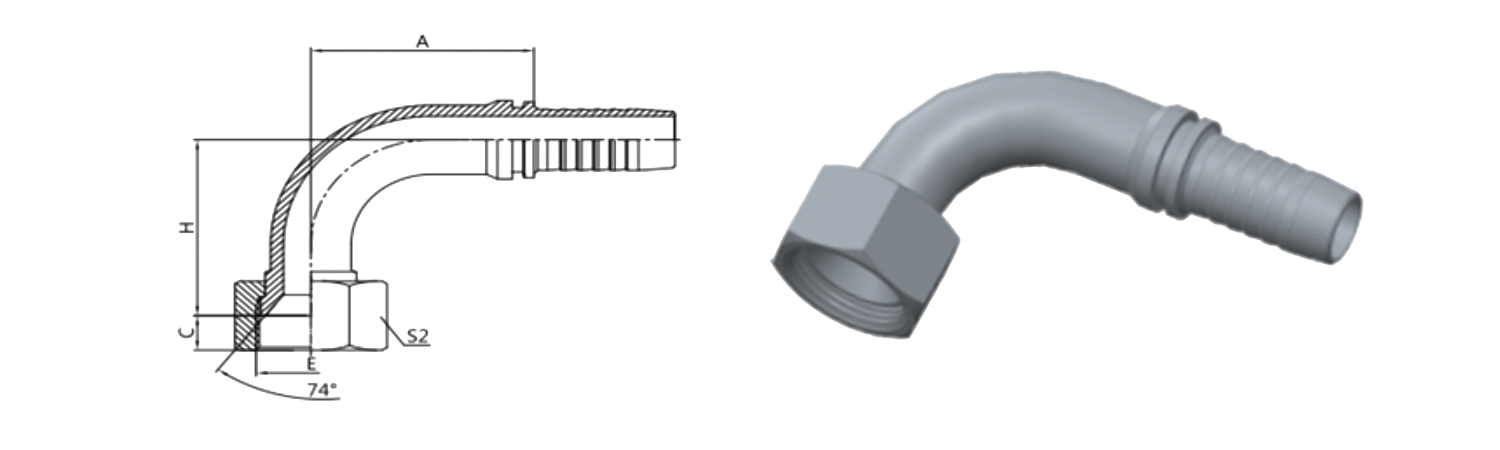

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20791-12-04C	M12X1.25	6	04	30	9	33.5	17
20791-12-04	M12X1.5	6	04	30	10	33.5	17
20791-14-04	M14X1.5	6	04	30	8.5	34	19
20791-16-04	M16X1.5	6	04	30	8	35	22
20791-16-05	M16X1.5	8	05	33	8	38	22
20791-18-06	M18X1.5	10	06	35.3	10	41.3	24
20791-22-08	M22X1.5	12	08	41	10	48	27
20791-22-10	M22X1.5	16	10	56	10	52.5	27
20791-27-10	M27X1.5	16	10	56	11	54	32
20791-30-12	M30X1.5	20	12	66.2	11	63.5	36
20791-33-12	M33X2	20	12	65.5	13	63.5	41
20791-33-16	M33X2	25	16	76.7	13	69	41
20791-36-12	M36X2	20	12	65.5	14	63.5	41
20791-36-14	M36X2	22	14	71.2	14	64.5	41
20791-39-16	M39X2	25	16	78	14	70.5	46
20791-45-20W	M45X2	32	20	91.5	15	86.5	55
20791-52-20W	M52X2	32	20	93	17	83.3	60
20791-52-24W	M52X2	40	24	109.4	17	100.3	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20792-xx-xx.
