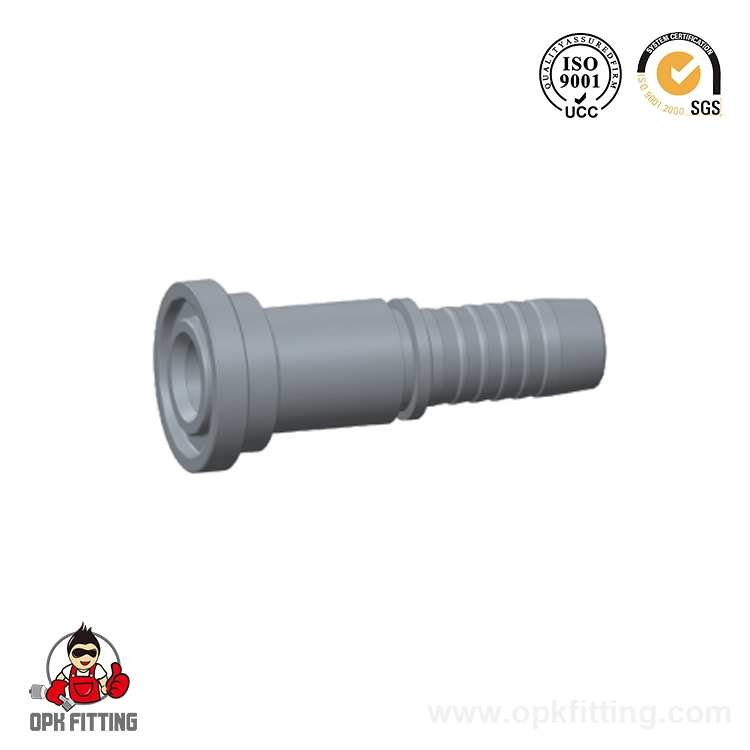

87311 SAE Flange 3000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV： 87613 SAE Flange 6000 PSI
NEXT：87391 90° SAE Flange 3000 PSI

Specification
Contact Us

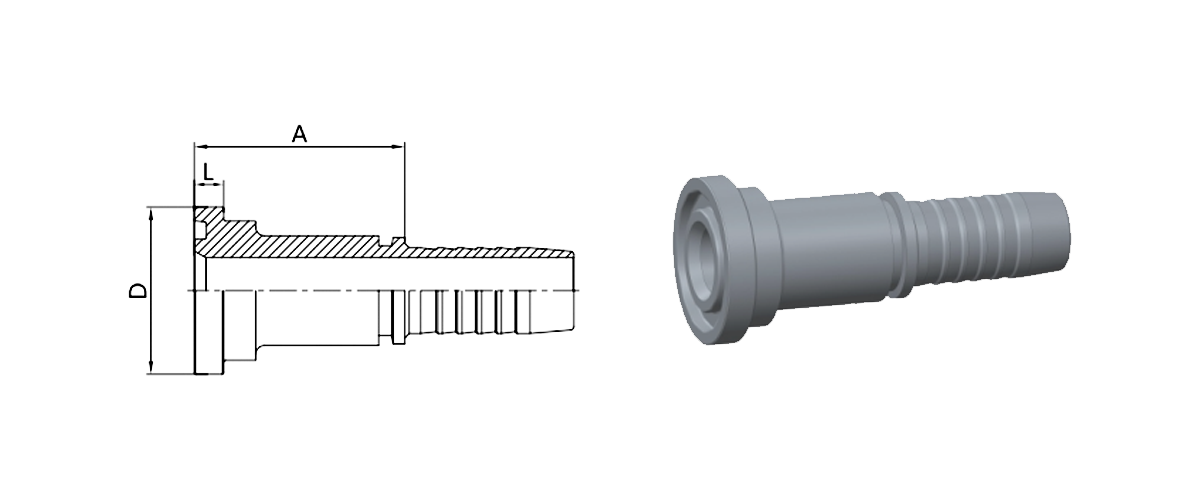

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS L
87311-08-08	1/2"	13	08	46	30.2	6.73
87311-12-08	3/4"	13	08	47	38.1	6.73
87311-12-10	3/4"	16	10	47.5	38.1	6.73
87311-12-12	3/4"	19	12	48	38.1	6.73
87311-12-16	3/4"	25	16	49	38.1	6.73
87311-16-12	1"	19	12	51	44.4	8
87311-16-16	1"	25	16	52	44.4	8
87311-16-20	1"	32	20	53	44.4	8
87311-20-16	1.1/4"	25	16	57	50.8	8
87311-20-20	1.1/4"	32	20	58	50.8	8
87311-24-20	1.1/2"	32	20	68	60.3	8
87311-24-24	1.1/2"	38	24	68	60.3	8
87311-32-24	2"	38	24	70	71.4	9.53
87311-32-32	2"	51	32	70	71.4	9.53
87311-40-40	2.1/2"	64	40	76	84.1	9.53
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 87312-xx-xx.
