87311-RW 45° SAE Flange 3000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：26791-RW 90° JIC Female 74° Cone Seat
NEXT：87341-RW 45° SAE Flange 3000 PSI

Specification
Contact Us

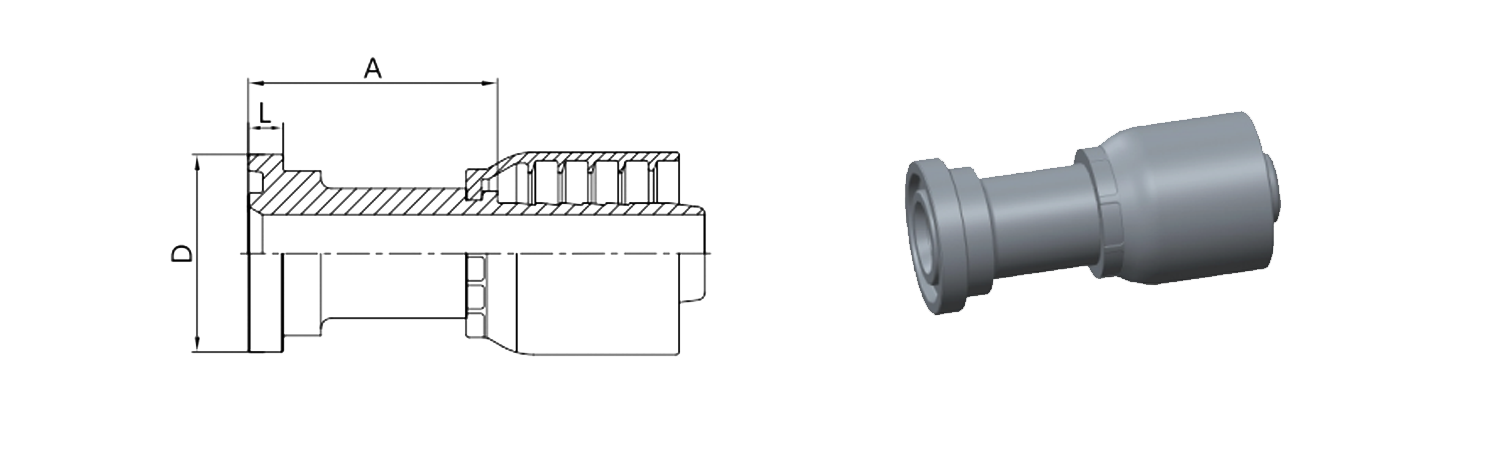

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS L
PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS L
87311-08-08RW	1/2"	13	08	46	30.2	6.73
87311-12-08RW	3/4"	13	08	47	38.1	6.73
87311-12-10RW	3/4"	16	10	47.5	38.1	6.73
87311-12-12RW	3/4"	19	12	48	38.1	6.73
87311-12-16RW	3/4"	25	16	49	38.1	6.73
87311-16-12RW	1"	19	12	51	44.4	8
87311-16-16RW	1"	25	16	52	44.4	8
87311-16-20RW	1"	32	20	53	44.4	8
87311-20-16RW	1.1/4"	25	16	57	50.8	8
87311-20-20RW	1.1/4"	32	20	58	50.8	8
87311-24-20RW	1.1/2"	32	20	68	60.3	8
87311-24-24RW	1.1/2"	38	24	68	60.3	8
87311-32-24RW	2"	38	24	70	71.4	9.53
87311-32-32RW	2"	51	32	70	71.4	9.53
87311-40-40RW	2.1/2"	64	40	76	84.1	9.53
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 87312-xx-xx.
