87391-RW 90° SAE Flange 3000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：87341-RW 45° SAE Flange 3000 PSI
NEXT：87611-RW SAE Flange 6000 PSI

Specification
Contact Us

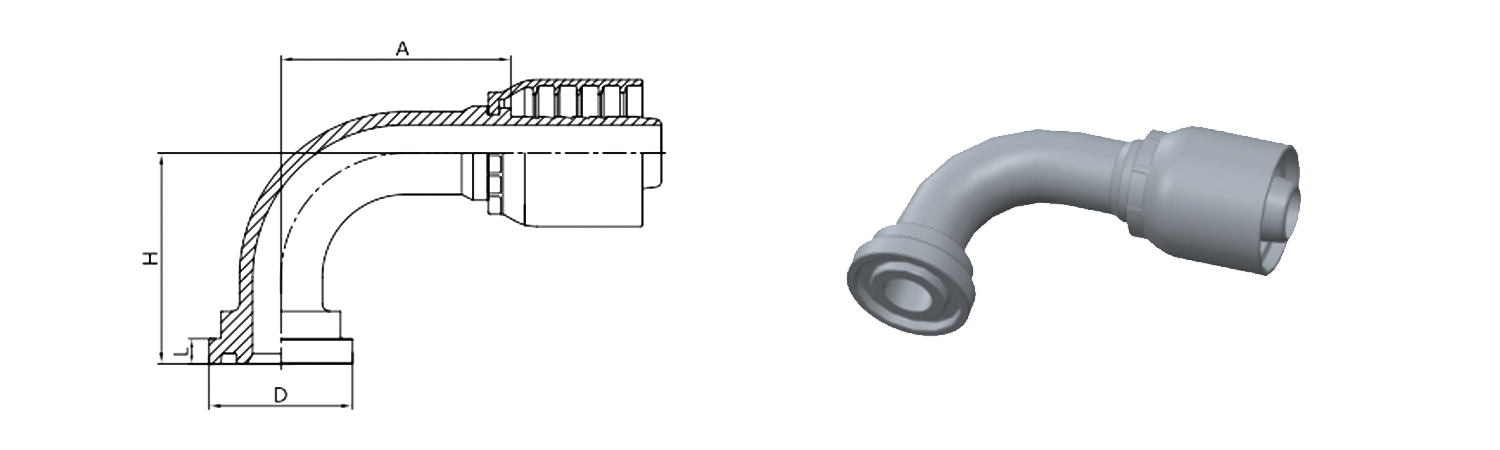

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
87391-08-08RW	1/2"	13	08	41	30.2	47	6.73
87391-12-08RW	3/4"	13	08	41	38.1	48	6.73
87391-12-10RW	3/4"	16	10	56	38.1	52.5	6.73
87391-12-12RW	3/4"	19	12	66.2	38.1	62	6.73
87391-12-16RW	3/4"	25	16	76.7	38.1	67.5	6.73
87391-16-12RW	1"	19	12	65.5	44.4	62	8
87391-16-16RW	1"	25	16	76.7	44.4	67.5	8
87391-16-20RW	1"	32	20	91.5	44.4	78.5	8
87391-20-16RW	1.1/4"	25	16	76.7	50.8	67.5	8
87391-20-20RW	1.1/4"	32	20	91.5	50.8	78.5	8
87391-20-24RW	1.1/4"	38	24	107	50.8	78.5	8
87391-24-20RW	1.1/2"	32	20	91.5	60.3	80.5	8
87391-24-24RW	1.1/2"	38	24	109.4	60.3	94	8
87391-32-24RW	2"	38	24	109.4	71.4	94	9.53
87391-32-32RW	2"	51	32	131.8	71.4	114.3	9.53
87391-40-32RW	2.1/2"	51	32	131.8	84.1	116.3	9.53
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 87392-xx-xx.
