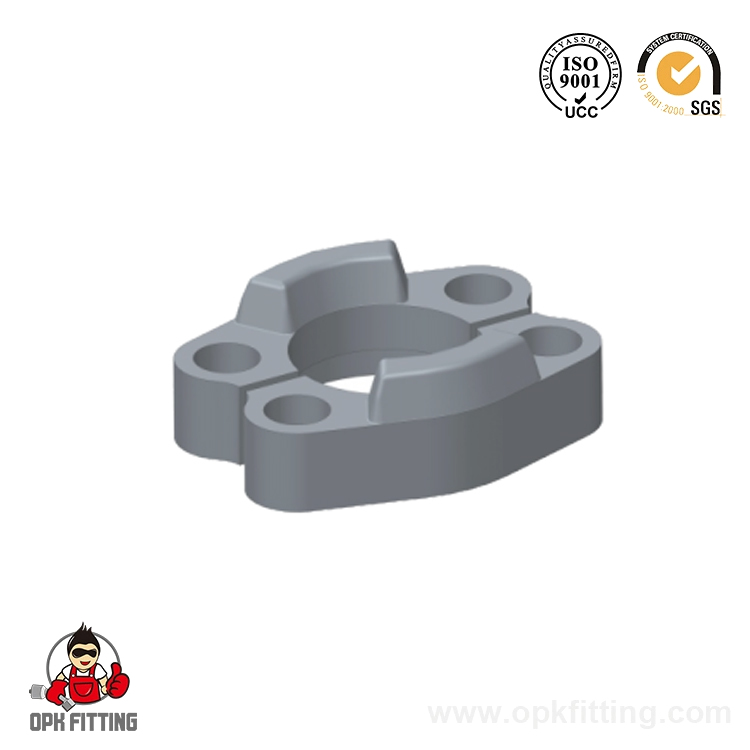

FL.FS SAE Split Flange Clamp

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

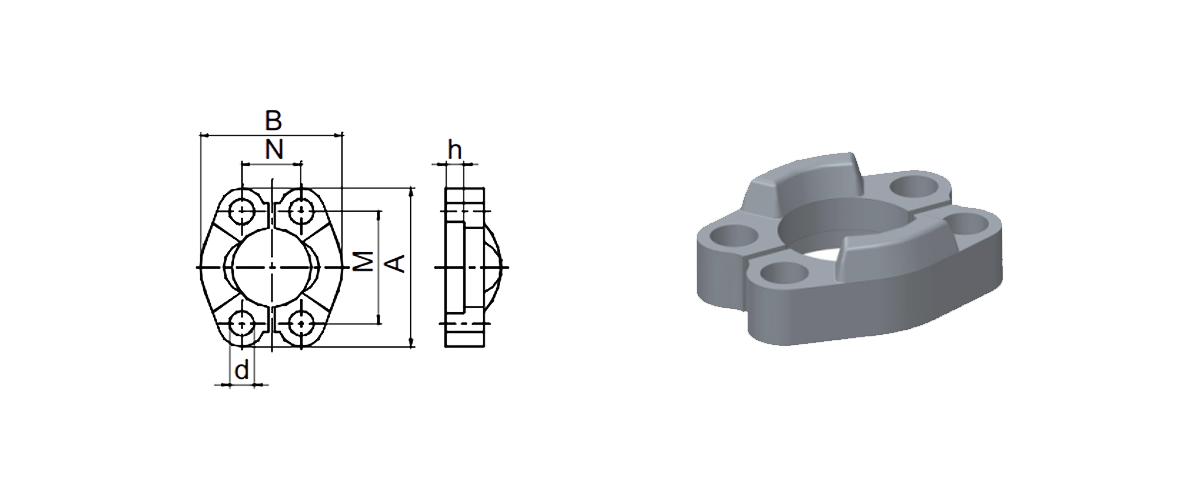

PART NO.	FLANGE SIZE	DIMENSIONS A	DIMENSIONS B	DIMENSIONS d	DIMENSIONS h	DIMENSIONS M	DIMENSIONS N	Matching bolts	MPa
3000PSI
FL-08	1/2"	54	45.6	9	6.2	38.1	17.5	M8X25	34.5
FL-12	3/4"	65	51.8	11	6.2	47.6	22.2	M10X30
FL-16	1"	70	58.4	11	7.5	52.4	26.2	M10X30
FL-20	1.1/4"	79	72.6	11	7.5	58.7	30.2	M10X30	27.6
FL-24	1.1/2"	94	82.2	13.5	7.5	69.9	35.7	M12X35	20.7
FL-32	2"	102	96.4	13.5	9	77.8	42.9	M12X35
FL-40	2.1/2"	114	108.2	13.5	9	88.9	50.8	M12X40	17.2
FL-48	3"	135	130.6	17.5	9	106.4	61.9	M16X50	13.8
6000PSI
FS-08	1/2"	56	47.2	9	7.2	40.5	18.2	M8X30	42
FS-12	3/4"	71	60	11	8.2	50.8	23.8	M10X35
FS-16	1"	81	69.6	13.5	9	57.2	27.8	M12X45
FS-20	1.1/4"	95	77.2	13.5	9.8	66.6	31.8	M12X45
FS-24	1.1/2"	113	95	17.5	12	79.3	36.5	M16X55
FS-32	2"	133	113.8	22	12	96.8	44.5	M20X70
