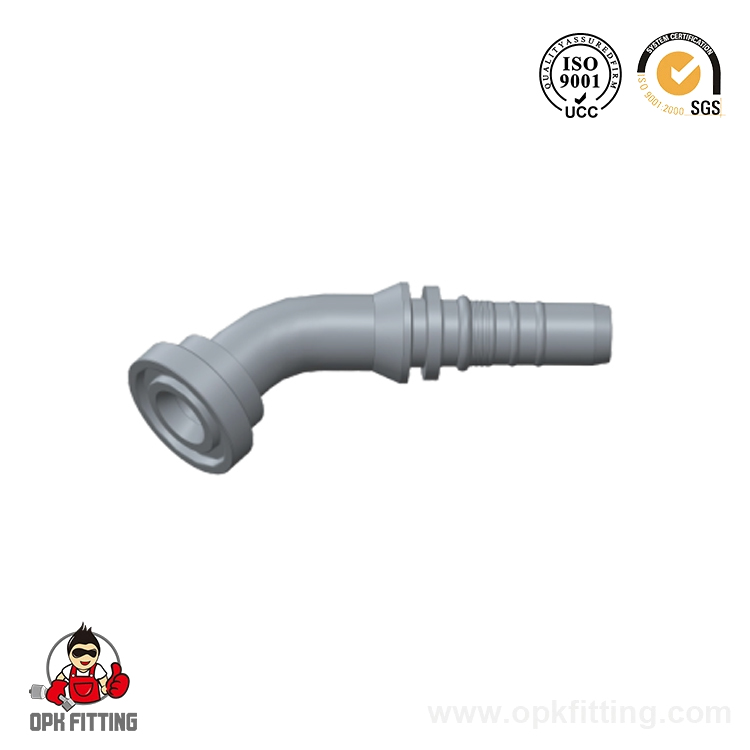

87643 45°SAE Flange 6000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：FL.FS SAE Split Flange Clamp
NEXT：87693 90°SAE Flange 6000 PSI

Specification
Contact Us

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
87643-12-12	3/4"	19	12	88.7	41.3	31.8	8.76
87643-16-12	1"	19	12	90.8	47.6	33.9	9.53
87643-16-16	1"	25	16	101.1	47.6	34.7	9.53
87643-20-16	1.1/4"	25	16	103.9	54	37.5	10.29
87643-20-20	1.1/4"	32	20	116.6	54	41.5	10.29
87643-24-20	1.1/2"	32	20	120.1	63.5	45.1	12.57
87643-24-24	1.1/2"	38	24	134.6	63.5	49	12.57
87643-32-24	2"	38	24	140.2	79.4	54.7	12.57
87643-32-32	2"	51	32	163.3	79.4	61.9	12.57
