87613-RW SAE Flange 6000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：29611-RW JIS GAS Female 60° Cone Seat JIS B8363
NEXT：87643-RW 45°SAE Flange 6000 PSI

Specification
Contact Us

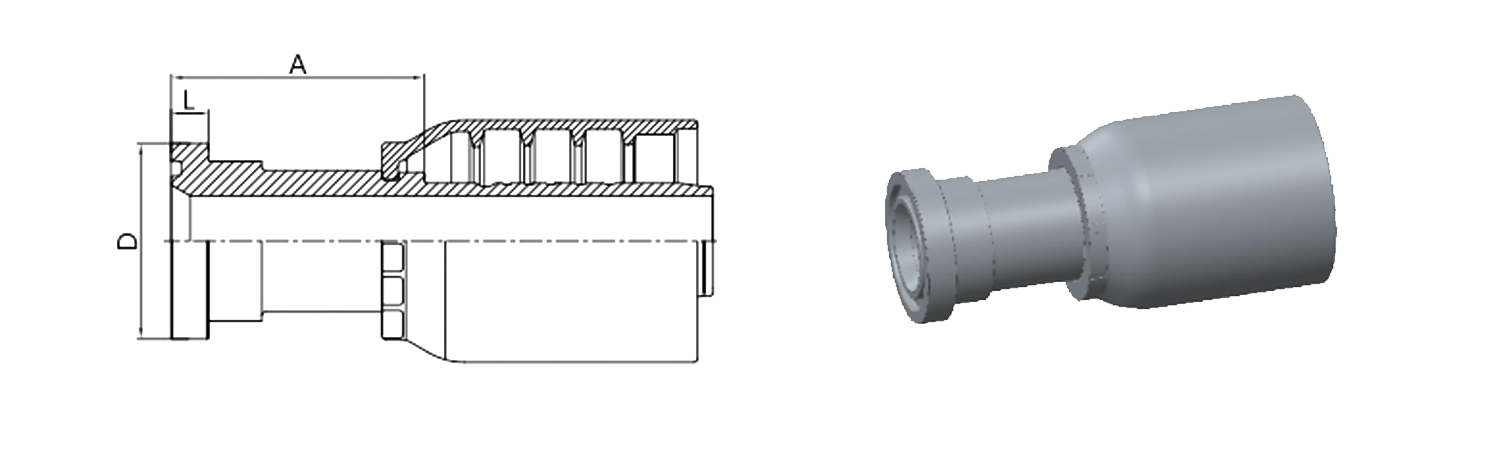

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS L
PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS L
87613-12-12RW	3/4"	19	12	53	41.3	8.76
87613-16-12RW	1"	19	12	58	47.6	9.53
87613-16-16RW	1"	25	16	59.4	47.6	9.53
87613-20-16RW	1.1/4"	25	16	67.4	54	10.29
87613-20-20RW	1.1/4"	32	20	69.8	54	10.29
87613-20-24RW	1.1/4"	38	24	74.7	54	10.29
87613-24-20RW	1.1/2"	32	20	78.8	63.5	12.57
87613-24-24RW	1.1/2"	38	24	78.7	63.5	12.57
87613-32-24RW	2"	38	24	91.2	79.4	12.57
87613-32-32RW	2"	51	32	91	79.4	12.57
