87691-RW 90° SAE Flange 6000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：87641-RW 45° SAE Flange6000 PSI
NEXT：18611-RW JIS Metric Male 60° Cone Seat

Specification
Contact Us

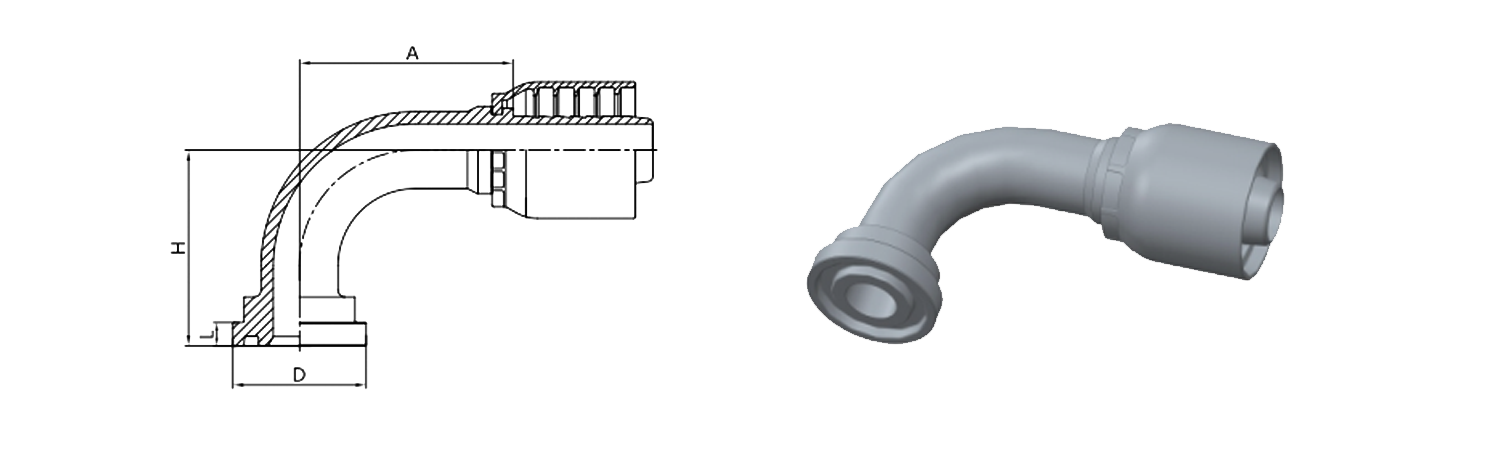

PART NO.	FLANGE SZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
PART NO.	FLANGE SZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
87691-08-08RW	1/2"	13	08	41	31.7	48	7.75
87691-12-10RW	3/4"	16	10	56	41.3	56.5	8.76
87691-12-12RW	3/4"	19	12	65.5	41.3	66	8.76
87691-16-12RW	1'	19	12	655	476	69	953
87691-16-16RW	1"	25	16	76.7	47.6	74.5	9.53
87691-16-20RW	1"	32	20	91.5	47.6	85.5	9.53
87691-20-16RW	1.1/4"	25	16	76.7	54	78.5	10.29
87691-20-20RW	1.1/4"	32	20	91.5	54	89.5	10.29
87691-24-20RW	1.1/2"	32	20	915	635	945	1257
87691-24-24RW	1.1/2"	38	24	1094	635	108	1257
87691-32-24RW	2"	38	24	109.4	79.4	116	12.57
87691-32-32RW	2"	51	32	131.8	79.4	136.3	12.57
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 87692-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
