20441 45°Metric Female 24°Cone O-Ring L.T.Din3865

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

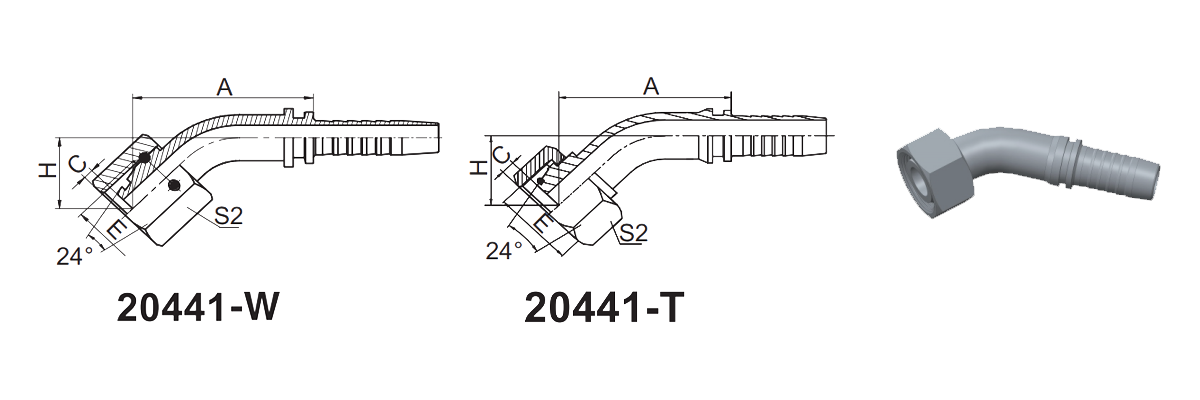

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
		DN	DASH			A	C	H	S2
20441-14-04W	M14X1.5	6	04	8	O06.5X1.5	38.1	1.6	16	17
20441-16-04T	M16X1.5	6	04	10	O08.0X1.5	38.1	2	16	19
20441-16-05W	M16X1.5	8	05	10	O08.0X1.5	40.3	2	17	19
20441-16-06W	M16X1.5	10	06	10	O08.0X1.5	40.3	2	17	19
20441-18-05T	M18X1.5	8	05	12	O10.0X1.5	40.3	1.5	17	22
20441-18-06T	M18X1.5	10	06	12	O10.0X1.5	45	1.5	18.5	22
20441-22-05T	M22X1.5	8	05	15	O12.0X2.0	40.9	3	18	27
20441-22-06T	M22X1.5	10	06	15	O12.0X2.0	42	3	18	27
20441-22-08T	M22X1.5	13	08	15	O12.0X2.0	48.8	3	20	27
20441-26-08T	M26X1.5	13	08	18	O15.0X2.0	47.3	2	21	32
20441-26-10T	M26X1.5	16	10	18	O15.0X2.0	58	2	23.5	32
20441-26-12W	M26X1.5	19	12	18	O15.0X2.0	61.4	2	24.6	32
20441-30-10T	M30X2	16	10	22	O20.0X2.0	56.4	4	24.1	36
20441-30-12T	M30X2	19	12	22	O20.0X2.0	63.2	4	25.6	36
20441-36-12T	M36X2	19	12	28	O26.0X2.0	61.5	4.5	25.6	41
20441-36-14T	M36X2	22	14	28	O26.0X2.0	67.9	4.5	31.6	41
20441-45-20T	M45X2	32	20	35	O32.0X2.5	88.7	4	38	50
20441-52-20T	M52X2	32	20	42	O38.0X2.5	90.3	4	38	60
20441-52-24T	M52X2	38	24	42	O38.0X2.5	114.5	4	43.7	60
注: 1.表中代号用于编织软管。 Note: 1.For use with braided hoses. 2.如需用于缠绕软管代号改为20442-xx-xx。 2.If use with spiral hoses, hose fitting series number is 20442-xx-xx.
