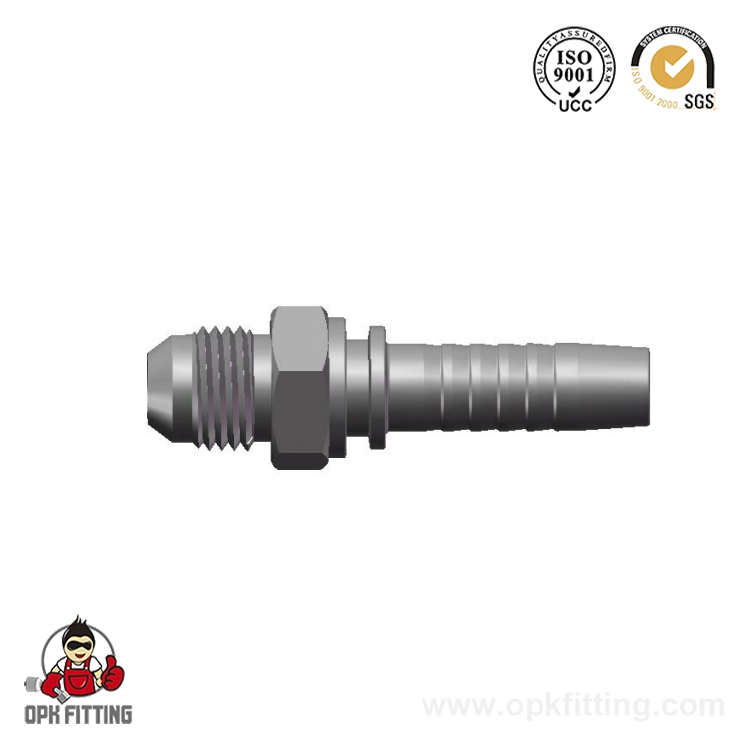

10711 GB Metric Male 74°Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

Specification
Contact Us

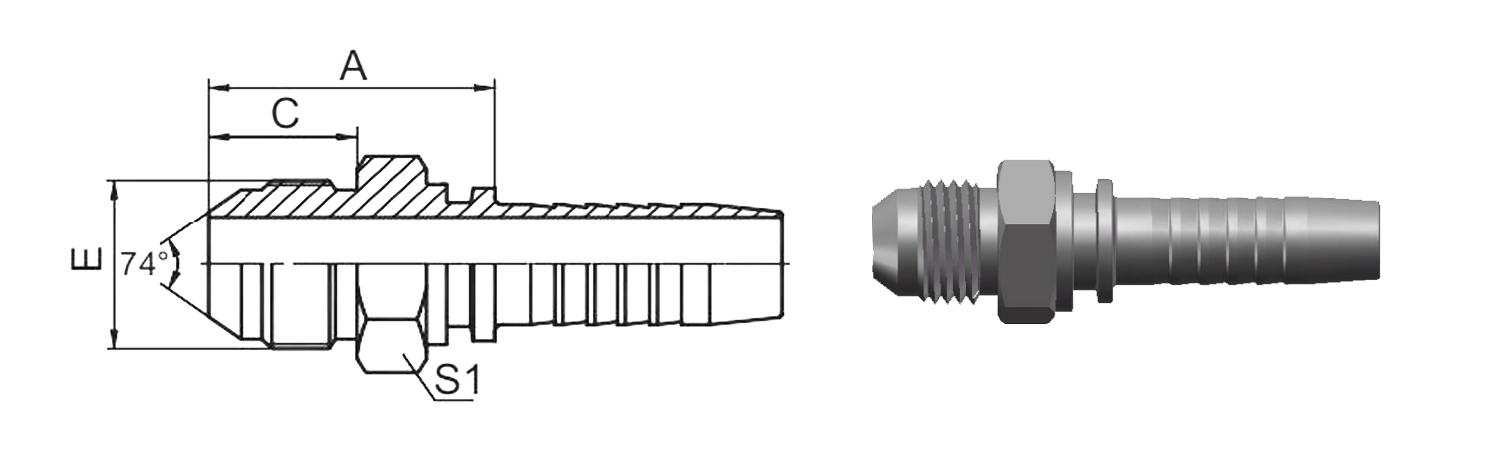

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
10711-10-02	M10X1	4	02	23	12.5	14
10711-10-03	M10X1	5	03	23	12.5	14
10711-12-03	M12X1.5	5	03	26.5	15.7	14
10711-12-03C	M12X1.25	5	03	24.5	14	14
10711-14-04	M14X1.5	6	04	29.5	17	17
10711-14-06	M14X1.5	10	06	30.5	18	17
10711-16-05	M16X1.5	8	05	30.5	18	17
10711-16-06	M16X1.5	10	06	30.5	18	17
10711-18-06	M18X1.5	10	06	30.5	18	19
10711-22-08	M22X1.5	13	08	35	19.5	24
10711-24-08	M24X1.5	13	08	35.5	20	27
10711-27-10	M27X1.5	16	10	38	20	30
10711-30-12	M30X1.5	19	12	42.5	23	32
10711-30-12E	M30X2	19	12	45.5	26	32
10711-33-12	M33X2	19	12	46	26	36
10711-36-14	M36X2	22	14	45	26	38
10711-39-16	M39X2	25	16	48	27.5	41
10711-42-20	M42X2	32	20	52	28.5	46
10711-45-20	M45X2	32	20	52	28.5	46
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 10712-xX-XX.
