12611A-RW BSP Male Double Use For 60° Cone Seat Or Bonded Seal

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20191-RW 90° Metric Female Multiseal
NEXT：22611-RW BSP Female 60° Cone

Specification
Contact Us

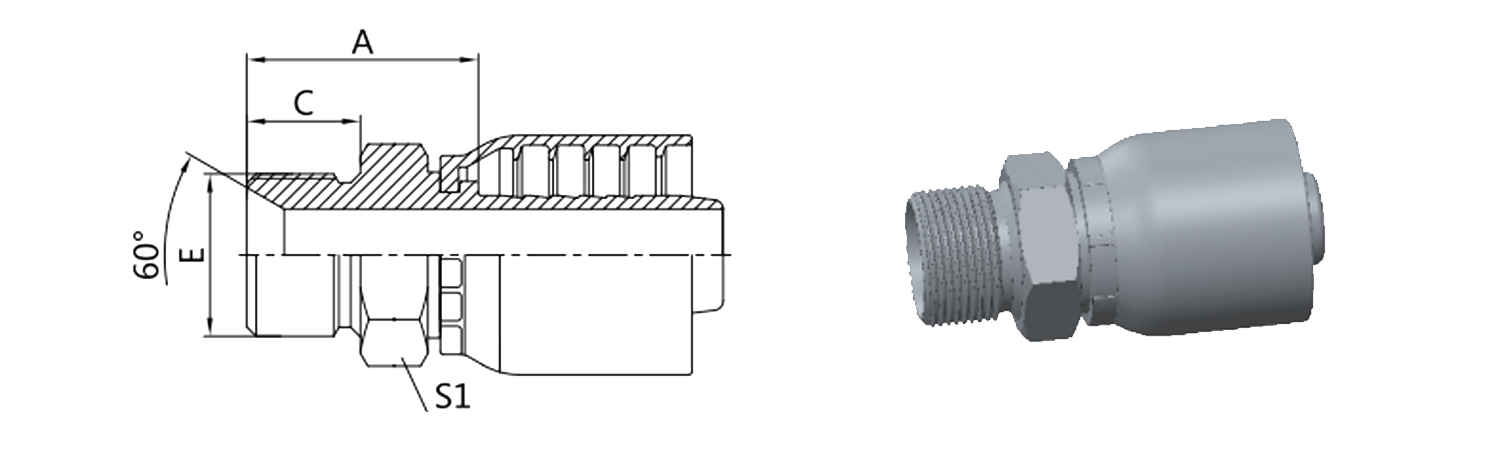

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
12611A-02-03RW	G1/8"X28	5	03	22	10	14
12611A-04-04RW	G1/4"X19	6	04	24.5	12	19
12611A-04-05RW	G1/4"X19	8	05	24.5	12	19
12611A-06-05RW	G3/8"X19	8	05	26	13.5	22
12611A-06-06RW	G3/8"X19	10	06	28	13.5	22
12611A-06-08RW	G3/8"X19	13	08	28.5	13.5	22
12611A-08-06RW	G1/2"X14	10	06	33	16	27
12611A-08-08RW	G1/2"X14	13	08	33	16	27
12611A-08-10RW	G1/2"X14	16	10	34	16	27
12611A-10-08RW	G5/8"X14	13	08	35	17.5	30
12611A-10-10RW	G5/8"X14	16	10	35.5	17.5	30
12611A-12-08RW	G3/4"X14	13	08	36.5	18.5	32
12611A-12-10RW	G3/4"X14	16	10	37.5	18.5	32
12611A-12-12RW	G3/4"X14	19	12	37.5	18.5	32
12611A-16-12RW	G1"X11	19	12	42.5	20.5	41
12611A-16-16RW	G1"X11	25	16	43.5	20.5	41
12611A-20-16RW	G1.1/4"X11	25	16	45.5	20.5	50
12611A-20-20RW	G1.1/4"X11	32	20	46.5	20.5	50
12611A-24-24RW	G.1/2"X11	38	24	49	23	55
12611A-32-32RW	G2"X11	51	32	54.5	25.5	70
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 12612A-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
