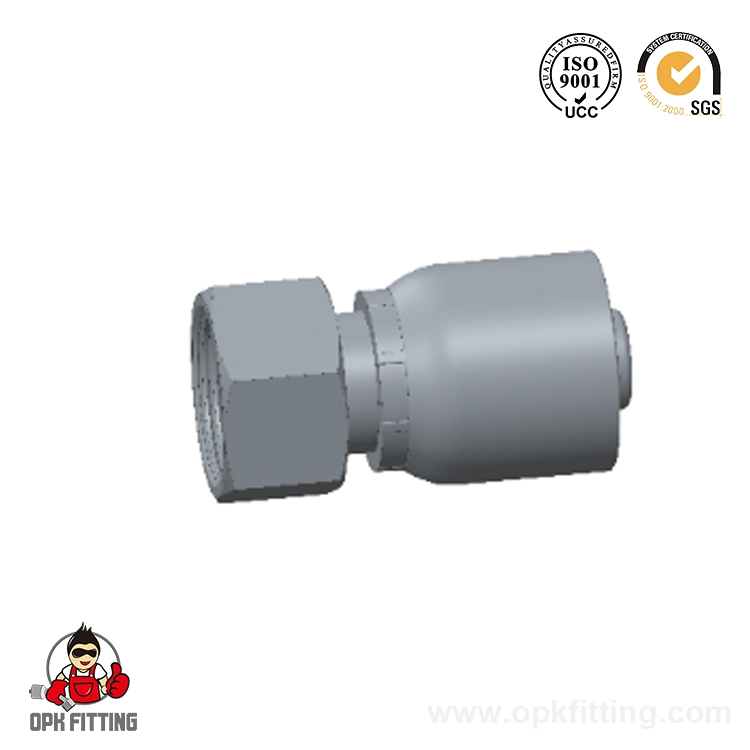

20411C-RW Metric Female Multiseal L.T.

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20411-RW Metric Female 24° Cone O-Ring L.T.DIN3865
NEXT：20441-RW 45° Metric Female 24° Cone O-Ring L.T.DIN3865

Specification
Contact Us

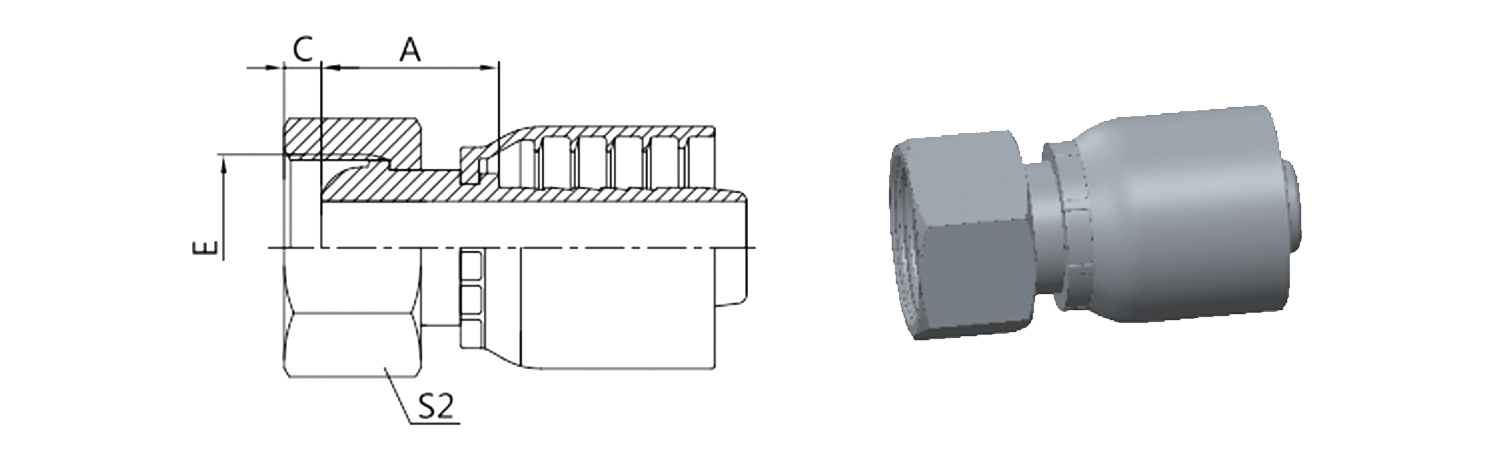

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	O RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	O RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
20411-12-04RW	M12X1.5	6	04	6	O04.5X1.5	22.5	1.4	17
20411-14-04RW	M14X1.5	6	04	8	O06.5X1.5	22.5	1.6	17
20411-14-06RW	M14X1.5	10	06	8	O06.5X1.5	23	1.6	17
20411-16-04TRW	M16X1.5	6	04	10	O08.0X1.5	20.5	2	19
20411-16-05RW	M16X1.5	8	05	10	O08.0X1.5	22	2	19
20411-16-06RW	M16X1.5	10	06	10	O08.0X1.5	23.5	2	19
20411-18-05TRW	M18X1.5	8	05	12	O10.0X1.5	24.5	1.5	22
20411-18-06TRW	M18X1.5	10	06	12	O10.0X1.5	27.5	1.5	22
20411-18-08RW	M18X1.5	13	08	12	O10.0X1.5	24.5	1.5	22
20411-22-05TRW	M22X1.5	8	05	15	O12.0X2.0	26.5	3	27
20411-22-06TRW	M22X1.5	10	06	15	O12.0X2.0	26.5	3	27
20411-22-08TRW	M22X1.5	13	08	15	O12.0X2.0	29	3	27
20411-26-10TRW	M26X1.5	16	10	18	O15.0X2.0	30	2	32
20411-26-12RW	M26X1.5	19	12	18	O15.0X2.0	27.5	2	32
20411-30-10TRW	M30X2	16	10	22	O20.0X2.0	31	4	36
20411-30-12TRW	M30X2	19	12	22	O20.0X2.0	34	4	36
20411-36-12TRW	M36X2	19	12	28	O26.0X2.0	33	4.5	41
20411-36-14TRW	M36X2	22	14	28	O26.0X2.0	33	4.5	41
20411-45-16TRW	M45X2	25	16	35	O32.0X2.5	37	4	50
20411-45-20TRW	M45X2	32	20	35	O32.0X2.5	37.5	4	50
20411-52-20TRW	M52X2	32	20	42	O38.0X2.5	38.5	4	60
20411-52-24T	M52X2	38	24	42	O38.0X2.5	38.5	4	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20412-xx-xx. C06, EATON Winner H-AP-EHGC-2021-C1 June 2009
