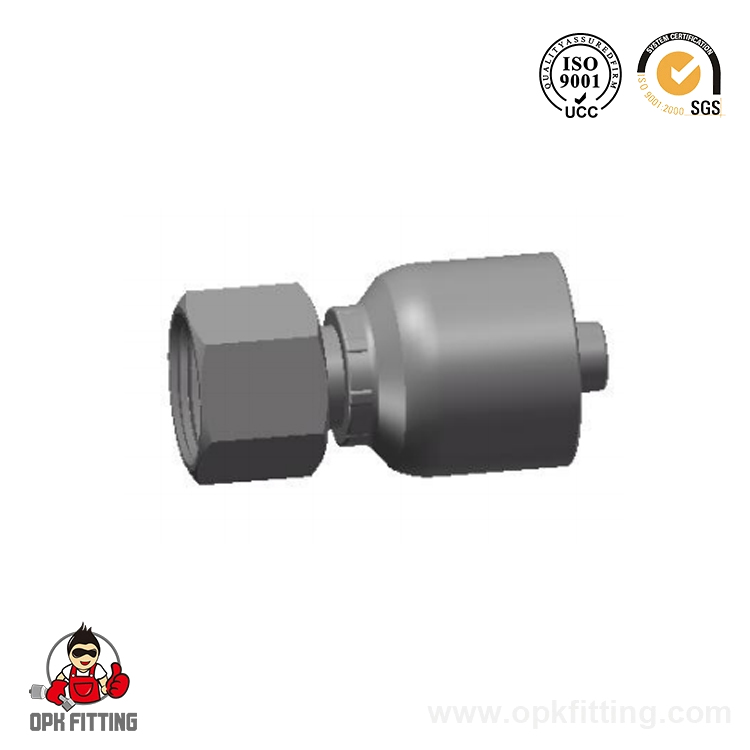

20611-RW Metric Female 60° Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：10611-RW Metric Male Double Use For 60° Cone Seat Or Bonded Seal
NEXT：20711-RW GB Metric Female 74° Cone Seat

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
20611-14-04TRW	M14X1.5	6	04	18	5.5	19
20611-16-05TRW	M16X1.5	8	05	18.5	5.5	22
20611-16-06RW	M16X1.5	10	06	19	5.5	22
20611-18-06TRW	M18X1.5	10	06	20	5.5	24
20611-20-08RW	M20X1.5	13	08	22	6.5	27
20611-22-08TRW	M22X1.5	13	08	22.5	6	27
20611-24-10RW	M24X1.5	16	10	24.5	6.5	30
20611-26-10TRW	M26X1.5	16	10	24.5	6	32
20611-27-10TRW	M27X2	16	10	23.5	6	32
20611-30-12TRW	M30X2	19	12	26.5	6	36
20611-36-16TRW	M36X2	25	16	30	6.5	41
20611-39-16TRW	M39X2	25	16	30	6.5	46
20611-45-20TRW	M45X2	32	20	31	8.5	55
20611-52-24TRW	M52X2	38	24	32	10	60
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20612-xx-xx.

About OPK Fitting

OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.
Ningbo OPK Fitting Co., Ltd. is a China professional OEM 20611-RW Metric Female 60° Cone suppliers and ODM 20611-RW Metric Female 60° Cone suppliers .

Over 10 years of experience.

A team of skilled design professionals and talent.

Excellent product quality and thoughtful customer service.

Our 10 years of customisation experience has created the OPK Fitting brand value.
