26791-RW 90° JIC Female 74° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：26741-RW 45° JIC Female 74° Cone Seat
NEXT：87311-RW 45° SAE Flange 3000 PSI

Specification
Contact Us

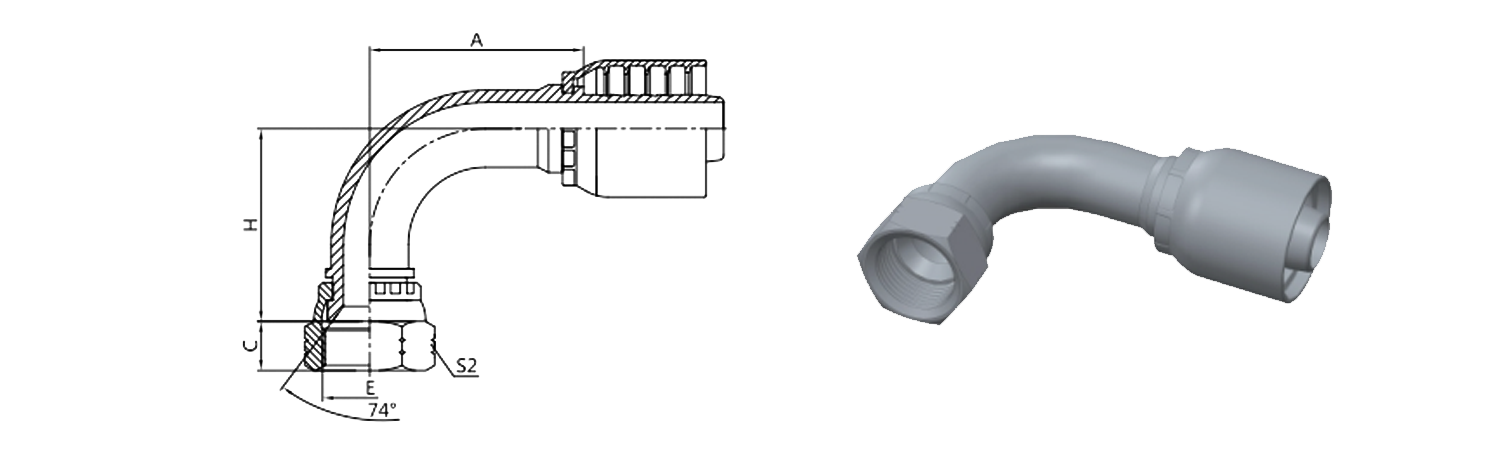

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
26791-04-03RW	7/16"X20	5	03	26.5	9	23.5	15
26791-04-04RW	7/16"X20	6	04	30	9	26.5	15
26791-05-04RW	1/2"X20	6	04	30	9.5	27	17
26791-05-05RW	1/2"X20	8	05	33	9.5	30	17
26791-05-06RW	1/2"X20	10	06	33	9.5	30	17
26791-06-04RW	9/16"X18	6	04	30	10.5	27	19
26791-06-05RW	9/16"X18	8	05	33	10.5	30	19
26791-06-06RW	9/16"X18	10	06	34.5	10.5	31.5	19
26791-06-08RW	9/16"X18	13	08	38	10.5	31.5	19
26791-08-06RW	3/4"X16	10	06	34.5	11	33.5	24
26791-08-08RW	3/4"X16	13	08	39.5	11	40	24
26791-08-10RW	3/4"X16	16	10	45.5	11	40	24
26791-10-08RW	7/8"X14	13	08	39.5	13	41.5	27
26791-10-10RW	7/8"X14	16	10	49	13	47.5	27
26791-10-12RW	7/8"X14	19	12	53.5	13	47.5	27
26791-12-08RW	1.1/16"X12	13	08	43.5	15	43	32
26791-12-10RW	1.1/16"X12	16	10	49	15	49	32
26791-12-12RW	1.1/16"X12	19	12	54.5	15	53.5	32
26791-12-16RW	1.1/16"X12	25	16	65.5	15	53.5	32
26791-14-12RW	1.3/16"X12	19	12	55.3	15	53.5	36
26791-16-12RW	1.5/16"X12	19	12	55.3	16	53.5	41
26791-16-16RW	1.5/16"X12	25	16	71	16	65	41
26791-16-20RW	1.5/16"X12	32	20	81	16	65	41
26791-20-20RW	1.5/8"X12	32	20	81.5	17	80	50
26791-24-20RW	1.7/8"X12	32	20	81.5	20	81.5	55
26791-24-24RW	1.7/8"X12	38	24	109.4	20	94	55
26791-32-32RW	2.1/2"X12	51	32	133.1	23.5	121.8	75
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 26792-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
