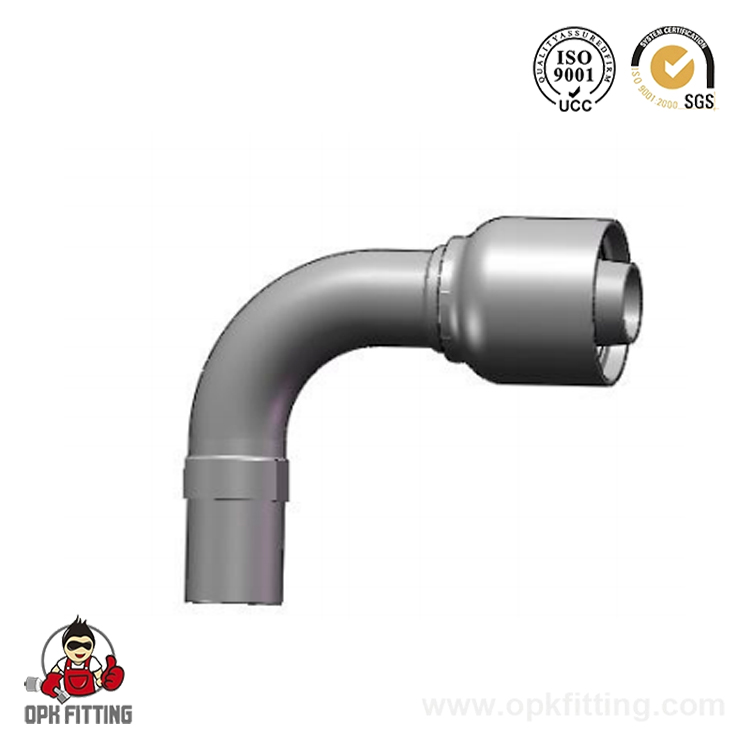

51091-RW GB Metric 90° Standpipe

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

PREV：51011-RW GB Metric Standpipe
NEXT：No next article

Specification
Contact Us

PART NO.	TUBE O.D.	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H
51091-06-04RW	6	6	04	30.5	19	42.5
51091-06-06RW	6	10	06	35.3	19	47.8
51091-08-04RW	8	6	04	30	19	42.5
51091-08-05RW	8	8	05	33	19	45.5
51091-10-04RW	10	6	04	30	22	45.5
51091-10-06RW	10	10	06	35.3	22	50.8
51091-12-06RW	12	10	06	35.3	22	50.8
51091-12-08RW	12	13	08	41	22	56
51091-14-06RW	14	10	06	35.3	22	50.8
51091-14-08RW	14	13	08	41	22	56
51091-15-10RW	15	16	10	56.5	26	64.5
51091-16-08RW	16	13	08	41	22	56
51091-16-10RW	16	16	10	56	22	60.5
51091-18-10RW	18	16	10	56.5	24	62.5
51091-18-12RW	18	19	12	64.9	24	72
51091-22-14RW	22	22	14	71.2	28	77
51091-28-16RW	28	25	16	76.7	30	83.5
51091-34-20RW	34	32	20	91.5	33	97.5
51091-42-24RW	42	38	24	109.4	35	113
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 51092-xx-XX.
