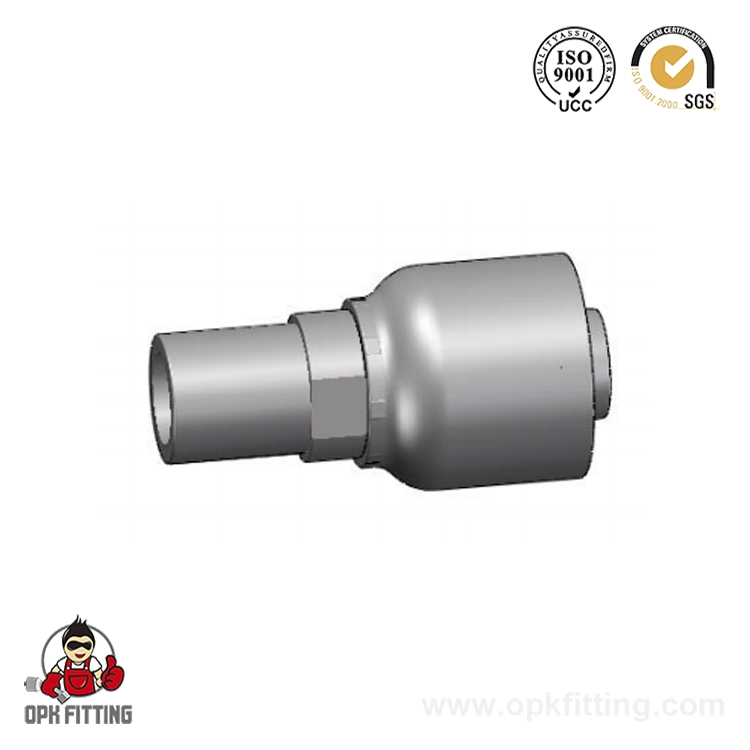

51011-RW GB Metric Standpipe

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

PREV：50091-RW 90° Metric Standpipe Straight DIN 2353
NEXT：51091-RW GB Metric 90° Standpipe

Specification
Contact Us

PART NO.	TUBE O.D.	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C
51011-04-03RW	4	5	03	27	17
51011-06-03RW	6	5	03	30.5	19
51011-06-04RW	6	6	04	31	19
51011-08-04RW	8	6	04	31	19
51011-08-05RW	8	8	05	31.5	19
51011-08-06RW	8	10	06	31.5	19
51011-10-04RW	10	6	04	35	22
51011-10-05RW	10	8	05	35	22
51011-10-06RW	10	10	06	35	22
51011-12-05RW	12	8	05	35	22
51011-12-06RW	12	10	06	35	22
51011-14-06RW	14	10	06	35	22
51011-14-08RW	14	13	08	35.5	22
51011-16-06RW	16	10	06	35	22
51011-16-08RW	16	13	08	36	22
51011-16-10RW	16	16	10	36.5	22
51011-16-12RW	16	19	12	38	22
51011-18-12RW	18	19	12	40.5	24
51011-22-12RW	22	19	12	45	28
51011-22-14RW	22	22	14	45	28
51011-28-16RW	28	25	16	49	30
51011-34-20RW	34	32	20	53	33
51011-42-24RW	42	38	24	57	35
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is51012-xX-XX.

About OPK Fitting

OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.
Ningbo OPK Fitting Co., Ltd. is a China professional OEM 51011-RW GB Metric Standpipe suppliers and ODM 51011-RW GB Metric Standpipe suppliers .

Over 10 years of experience.

A team of skilled design professionals and talent.

Excellent product quality and thoughtful customer service.

Our 10 years of customisation experience has created the OPK Fitting brand value.
