87641-RW 45° SAE Flange6000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：87611-RW SAE Flange 6000 PSI
NEXT：87691-RW 90° SAE Flange 6000 PSI

Specification
Contact Us

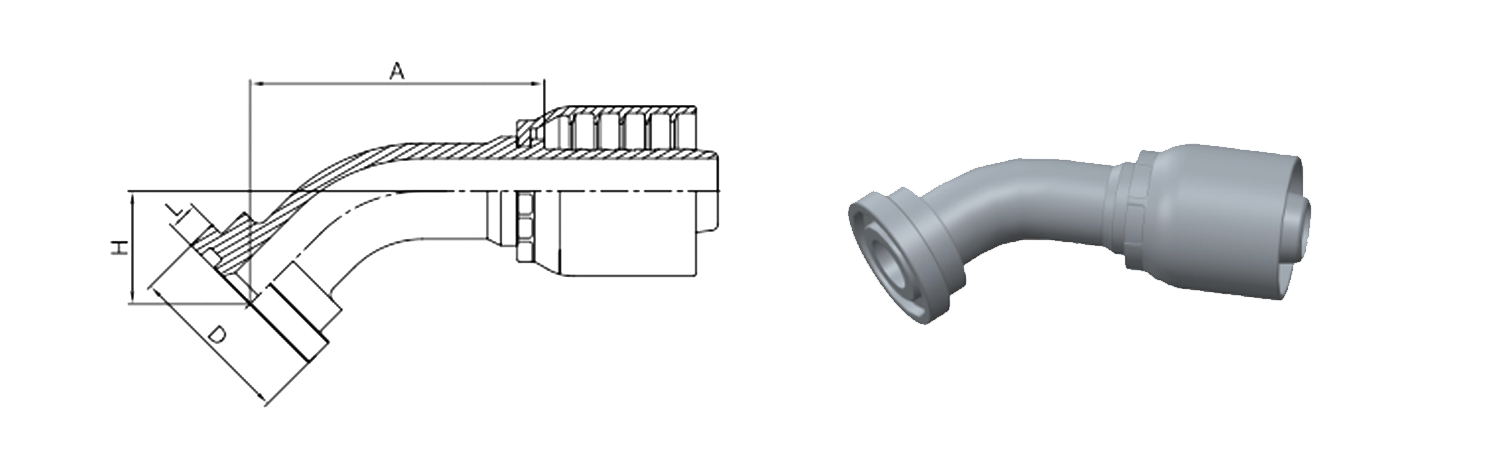

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS	DIMENSIONS D	DIMENSIONS	DIMENSIONS
PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS	DIMENSIONS D	DIMENSIONS	DIMENSIONS
87641-08-08RW	1/2"	13	08	58.9	31.7	24	7.75
87641-08-12RW	1/2"	19	12	77	31.7	29.6	7.75
87641-12-10RW	3/4"	16	10	72.5	41.3	28.2	8.76
87641-12-12RW	3/4"	19	12	79.2	41.3	31.8	8.76
87641-16-16RW	1"	25	16	88.9	47.6	34.7	9.53
87641-20-20RW	1.1/4"	32	20	102.3	54	41.5	10.29
87641-24-20RW	1.1/2"	32	20	105.8	63.5	45.1	12.57
87641-24-24RW	1.1/2"	38	24	119.8	63.5	49	12.57
87641-32-24RW	2"	38	24	125.4	79.4	54.7	12.57
87641-32-32RW	2"	51	32	144.8	79.4	64	12.57
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 87642-xx-xx.
